High Performane Modular Screen Panels Light Weighted SH60A-95A

High Performane Modular Screen Panels Light Weighted SH60A-95A
High Performane Modular Screen Panels Light Weighted SH60A-95A High Performane Modular Screen Panels Light Weighted SH60A-95A High Performane Modular Screen Panels Light Weighted SH60A-95A

Large Image :  High Performane Modular Screen Panels Light Weighted SH60A-95A

Product Details:
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO9001,SGS Test
Model Number: PU
Payment & Shipping Terms:
Minimum Order Quantity: 10 Square Meter
Price: negotiable
Packaging Details: Put into Carton or on Pallet
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P,
Supply Ability: 10000 Square Meter/Week
Detailed Product Description
Name: Pu Screen Panel Material: PU
Color: Red Or As Your Requirement Hardness: 60-85A
Normal Sizes: 305*305*30mm Application: Qarry, Coal,Mining Industrial
Feature: High Wear Resistance Operating Temperature: Below 80ºC
Install Stype: Rail Support,Pin&Sleeve Or Trim Strip Standard: ISO9001,SGS Test
High Light:

polyurethane mesh

,

polyurethane screen mesh

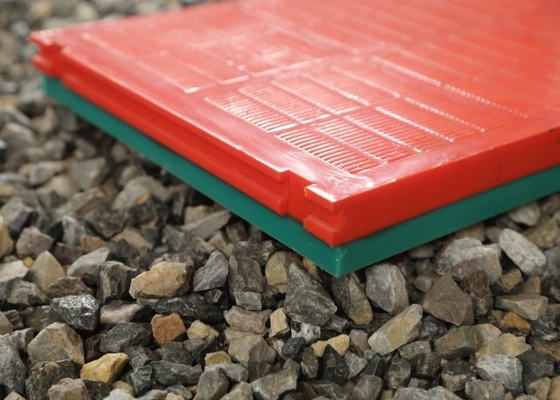

Mam Ba SH60A-95A High Performane Polyurethane Modular Panel for Mining Industrial





RedStar manufactures a range of polyurethane screens that are lighter, more cost-effective and achieve a longer working life than standard screen panels – even in harsh operating conditions.



RedStar’s expertise in high-tensile polyurethane screens has resulted in extensive range of products designed to suit your particular screening requirements.





Polyurethane Screen for mining mineral processing, grading, dehydration and other screening machines replace metal sieve (mesh) of a new product. Mainly used in coal, iron ore, copper, gold and other ores grading, screening, dewatering and other places, is one of the components necessary shaker sieve structure by polyurethane are divided into four types: mosaic bolt Join layering connection screen hook connection.


Special Specification can also be customized according to customer's requirements.







Modular Polyurethane Screens Panels





Modular PU Screen Panels

Overall

Sizes

mm

Aperture

mm

Opening Angle

Height of screening

Area mm

Thickness

mm

Hardness



305x305x30 0.3 11-25 11 30 HS60-85
305x305x30 0.5 11-25 11 30 HS60-85
305x305x30 0.75 11-25 11 30 HS60-85
305x305x30 1 11-25 11 30 HS60-85
305x305x30 1.5 11-25 12 30 HS60-85
305x305x30 2 11-25 12 30 HS60-85
610x305x45 0.3 11-25 11 45 HS60-85
610x305x45 0.5 11-25 11 45 HS60-85
610x305x45 0.75 11-25 11 45 HS60-85
610x305x45 1 11-25 11 45 HS60-85
610x305x45 1.5 11-25 12 45 HS60-85
610x305x45 2 11-25 12 45 HS60-85

High Performane Modular Screen Panels Light Weighted SH60A-95A 0High Performane Modular Screen Panels Light Weighted SH60A-95A 1



Features:

1. Highly elastic and can be installed easily
2. Light weighted and improved durability
3. Impact proof body and compact design
4. Reduces noise and can withstand high temperature





Material: Steel wire inside and polyurethane outside.
Thickness: 20mm - 60mm.
Opening size: 0.6mm - 160mm.
Screen type: Modular polyurethane screening and tensioned polyurethane panels.
Hole type: Comb, square, oblong, round, fine mesh sieve screen.
Connection types: Mosaic, bolt, layering connection, screen hook connection



Characteristics:
System screen modules are fixed to the substructure bars by means of adapter slats, thus making it compatible to other types of modular systems. there are system units with standard widths of 150 and 300 mm and flexible lengths of up to 1200 mm, all made of highly wear resistant polyurethane.



Application:



Polyurethane Vibrating Screen is widely used for the classification of bulk material, such as coal, minerals, coke, beans, etc. So it can be used in the agriculture, chemical industry, minerals, quarry and smelting industries.

Polyurethane vibrating screen can sort the wet materials, it can be used in the water conservancy and hydropower and dewatering industries.
