OEM Urethane Modular Screen Panel For Dewatering And Mining

I'm Online Chat Now

OEM Urethane Modular Screen Panel For Dewatering And Mining

OEM Urethane Modular Screen Panel For Dewatering And Mining
OEM Urethane Modular Screen Panel For Dewatering And Mining OEM Urethane Modular Screen Panel For Dewatering And Mining

Large Image :  OEM Urethane Modular Screen Panel For Dewatering And Mining

Product Details:
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO9001,SGS Test
Model Number: Polyurethane Screen Panels
Payment & Shipping Terms:
Minimum Order Quantity: 10 Square Meter
Price: negotiable
Packaging Details: Put into Carton or on Pallet
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P,O/A,CAD
Supply Ability: 10000 Square Meter/Week
Detailed Product Description
Name: Modular Polyurethane Screen Planels Material: MDI Or TDI Polyurethane
Color: Red Or As Your Requirement Hardness: Shore 80-95A
Normal Sizes: 305*305*30MM,610*305*30MM Application: Dewatering,Qarry, Coal,Mining Industrial
Feature: High Wear Resistance,More Durable Operating Temperature: Below 80ºC
Install Stype: Rail Support,Pin&Sleeve Or Trim Strip, Bolt,Clamp Standard: ISO9001,SGS Test
Production Process: Cast Or Inject
High Light:

Modular Polyurethane Screen Panels


Urethane Modular Screen Panel


Dewatering Modular Screen Panel

Longer Wear Life OEM Urethane Modular Screen Panel for Dewatering and Mining


Mam Ba., has expanded production facilities to once again offer a complete line of modular urethane screen panels and accessories. Our urethane screens provide long wear life, superior performance, low cost per ton, and reduced noise. We offer a number of panel fastening options, and we can fully design and build urethane screens to match your unique application.




• Long Wear Life: Polyurethane is ideal for highly abrasive and dry or wet applications, providing much longer wear life than traditional wire screen media.

• Exceptional Performance: Urethane offers excellent elasticity and impact absorption for increased screening efficiency.

• Low Cost Per Ton: Long life plus great productivity leads to significant reduction in total operating costs.




Specialized polymer formulas, combined with our experience in precision, open-cast manufacturing processes, result in urethane screening products that provide unmatched quality and performance.


Our urethane screen media delivers outstanding efficiency and wear life in even the harshest conditions.


Customized ,OEM and Free Mold Fee


Polyurethane Screen for mining mineral processing, grading, dehydration and other screening machines replace metal sieve (mesh) of a new product. Mainly used in coal, iron ore, copper, gold and other ores grading, screening, dewatering and other places, is one of the components necessary shaker sieve structure by polyurethane are divided into four types: mosaic bolt Join layering connection screen hook connection.

For example, layering connection type: Please place the sieve screen surface, and then sieve the support beam to install. Should generally be in the screening machine both sides of the upper sieve plate, along with the width under the direction of the appropriate material u type iron suitable distance strip drilling screw holes and then bolt and tighten the underlying support beam, so that prison sieve firmly set in the middle. Strip iron support beams and the contact with the sieve is best to use rubber (can use old hose) pad. Sieve the middle of the support beam above method can also be installed here.

If the sieve plate is not required to install, you may shake it up and down the screen surface, long-term friction and collisions with steel support Liangfa Sheng, will seriously affect the life of sieve.

Screen vertical and horizontal rules are made of high wear-resistant polyurethane, wire article contains. Life than traditional metal mesh 3-10 times higher. Unique structure, suitable elastic and plastic strength, it reduced the card blocking, while the second harmonic due to screen high-frequency vibration section, but also reduce the sticky block. Practical hole high screening efficiency.

Mesh with elastic tension on both sides hook, the overall light weight, good flexibility, easy to transport storage, installation and removal easy. Screen can effectively absorb the shock, reduce noise, improve the working environment.

Special Specification can also be customized according to customer's requirements.



Modular Polyurethane Screens Panels



Modular PU Screen Panels






Opening Angle

Height of screening

Area mm





305x305x30 0.3 11-25 11 30 HS60-85
305x305x30 0.5 11-25 11 30 HS60-85
305x305x30 0.75 11-25 11 30 HS60-85
305x305x30 1 11-25 11 30 HS60-85
305x305x30 1.5 11-25 12 30 HS60-85
305x305x30 2 11-25 12 30 HS60-85
610x305x45 0.3 11-25 11 45 HS60-85
610x305x45 0.5 11-25 11 45 HS60-85
610x305x45 0.75 11-25 11 45 HS60-85
610x305x45 1 11-25 11 45 HS60-85
610x305x45 1.5 11-25 12 45 HS60-85
610x305x45 2 11-25 12 45 HS60-85


System screen modules are fixed to the substructure bars by means of adapter slats, thus making it compatible to other types of modular systems. there are system units with standard widths of 150 and 300 mm and flexible lengths of up to 1200 mm, all made of highly wear resistant polyurethane.


Modular Panel Benefits


• Reduced running costs – only worn panels replaced

• Quick and simple installation and removal

• Firm connection of frame and panel

• Panels are reinforced internally and stay flat

• A wide range of apertures and panel thicknesses

• Flat screening surface ensures even feed distribution

• Variety of panel dimensions to suit customer needs

• Common sizes available ex stock

• Variations for improved efficiency readily available




Polyurethane Vibrating Screen is widely used for the classification of bulk material, such as coal, minerals, coke, beans, etc. So it can be used in the agriculture, chemical industry, minerals, quarry and smelting industries.

Polyurethane vibrating screen can sort the wet materials, it can be used in the water conservancy and hydropower and dewatering industries.

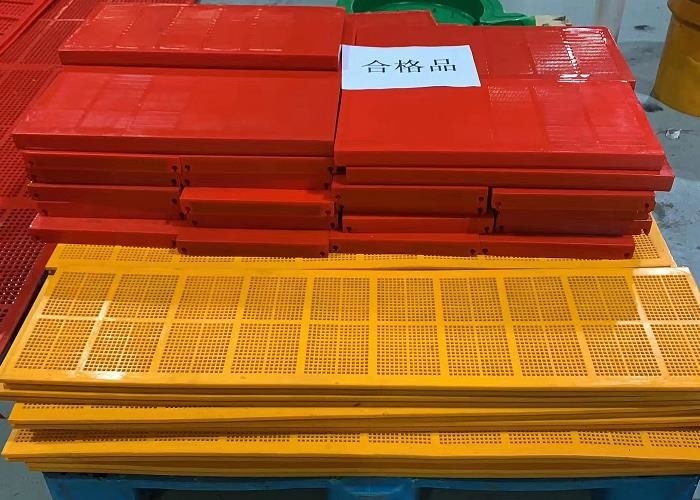

OEM Urethane Modular Screen Panel For Dewatering And Mining 0

OEM Urethane Modular Screen Panel For Dewatering And Mining 1
