Thickness 7-60mm MDI Polyurethane Dewatering Screen Wear Resistance

Product Details

Place of Origin: China

Brand Name: Mam Ba

Certification: ISO9001,SGS Test

Model Number: PU

Payment & Shipping Terms

Minimum Order Quantity: 10 Square Meter

Price: negotiable

Packaging Details: Put into Carton or on Pallet

Delivery Time: 10-20days

Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P,O/A,CAD.

Supply Ability: 10000 Square Meter/Week

Get Best Price
Product Details
High Light:

60mm Polyurethane Dewatering Screen

,

Polyurethane Dewatering Screen Wear Resistance

,

polyurethane screen panel Wear Resistance

Name:
Polyurethane Or Rubber Vibrating Screen Panel For Dewatering And Mining
Material:
MDI Or TDI Polyurethane
Color:
Yellow, Red, Green Or Customizable
Hardness:
80A-95A
Modular Normal Sizes:
305*305*30MM,610*305*30MM,
Application:
Qarry, Coal,Mining Industrial
Feature:
High Wear Resistance,More Durable
Operating Temperature:
Below 80ºC
Install Stype:
Rail Support,Pin&Sleeve Or Trim Strip, Bolt,Clamp
Standard:
ISO9001,SGS Test
Warranty:
3-6months
Aperture Sizes:
0.12-120mm
Screening Thickness:
7-60mm
Name:
Polyurethane Or Rubber Vibrating Screen Panel For Dewatering And Mining
Material:
MDI Or TDI Polyurethane
Color:
Yellow, Red, Green Or Customizable
Hardness:
80A-95A
Modular Normal Sizes:
305*305*30MM,610*305*30MM,
Application:
Qarry, Coal,Mining Industrial
Feature:
High Wear Resistance,More Durable
Operating Temperature:
Below 80ºC
Install Stype:
Rail Support,Pin&Sleeve Or Trim Strip, Bolt,Clamp
Standard:
ISO9001,SGS Test
Warranty:
3-6months
Aperture Sizes:
0.12-120mm
Screening Thickness:
7-60mm
Product Description

Polyurethane or Rubber Vibrating Screen Panel for Dewatering and Mining





Mamba’s polyurethane screens are manufactured using open-cast process which provides wear life of 1.5 to 2 times longer than that found in injection-molded polyurethane screen. Although open-cast production method is more labor-intensive, but it results in superior wear life performance and minimal maintenance cost, primarily due to the long slow curing process which enhances the cross-linking of the polyurethane molecules.

All raw materials and manufacturing equipment for Mamba’s polyurethane screens are sourced from Europe, and our quality control is certified in accordance with ISO quality management system, allowing us to provide consistent top quality polyurethane screening products.



Mamba's Tensioned polyurethane screen has embedded steel frame for high tensile strength. The metallic fastening hooks are designed for easy replacement as it can clamp screens into the separator. The hooks can also be transverse tensioning and longitudinal tensioning.





Modular and Tensioned Polyurethane Screen Panel Material:


Polyurethane is a new type of polymer composite material, with nature between plastic and rubber while performance superior over the two materials. Polyurethane screen is lightweight and easy to install in screening situations where material specifications are frequently changed.
The polyurethane mesh is ideal for all screening applications where screening efficiency and noise reduction is crucial.
The various opening sizes ensure the high separating and screening efficiency and the smooth surface and polyurethane materials make the screen has much lower noise than the woven vibrating screen mesh or perforated vibrating screen mesh.



Modular and Tensioned Polyurethane Screen Panel Popular Sizes:


· Material: polyurethane material and steel frame and Steel Wire Skeleton
· Thickness: 15mm - 60mm.
· Hole type: square, rectangular, round and other types are available.
· Hole size: 2.5mm - 120mm.
· Panel width: max. 2m.
· Panel length: max. 3m.
· Hook type: metal or polyurethane.
· Hook direction: transverse or longitudinal.
· Color: red, yellow, blue and any other colors.



Modular and Tensioned Polyurethane Screen Panel Features:



1. Long service time. Its service life is more than 8 times longer than the ordinary metal products and 3.9 times longer than the rubber products.


2. Large bear capacity. With good resilence, high strength to absorb the impact, high wear resistance, high tensile strength,so its capacity is more than 2.5 times stronger than the rubber and stainless products.


3. High sieving efficiency. On the base of meeting the size distribution, the mesh slot is made into the shape of rectangle. Which gurantees the ratio of qualified fine material and improves the screening effciency.



4. No blocking by the hole.With the resilience nature, the aperture is prevented from blockage.



5. Low niose. Polyurethane sieve machine can reduce noise 5-20 decibels than metal mesh.


6. Low maintenance cost. Easy to installation, simple to replace, long service time ensure the low maintenance cost.


7. Large amount of ore sieving. Polyurethane screen mesh can sieving more than 200000 tons ores.


8. Abrasive resistant. Tear resistant and corrosive resistant.


9. Various openings for accurate separating.


10.Lightweight and easy to install and replace.



Modular and Tensioned Polyurethane Screen Panel Specifications:



Material polyurethane(MDI,TDI)
Type PU Tensioned Screen,Modular Steel skeleton PU Screen Panel, PU Dewatering Screen ,Trommel Screen
Screening Thickness 7-60mm
Total Screen Panel Thickness 10-60mm
Open area rate 25%-60%
Aperture size 0.12-100/120mm
Hardness 85-95A
Color Yellow, Red, Green



Modular and Tensioned Polyurethane Screen Panel Applications:



Tensioned polyurethane screen is fitted to all vibrating screens;


Separate and screen almost all of materials from coarse stones to fine materials;


Ideal for both dry and wet materials.



The polyurethane screen is a substitute screening material for metal mesh in mining mineral processing, grading, dehydration and other machines. Featuring age resistance and wear resistance.

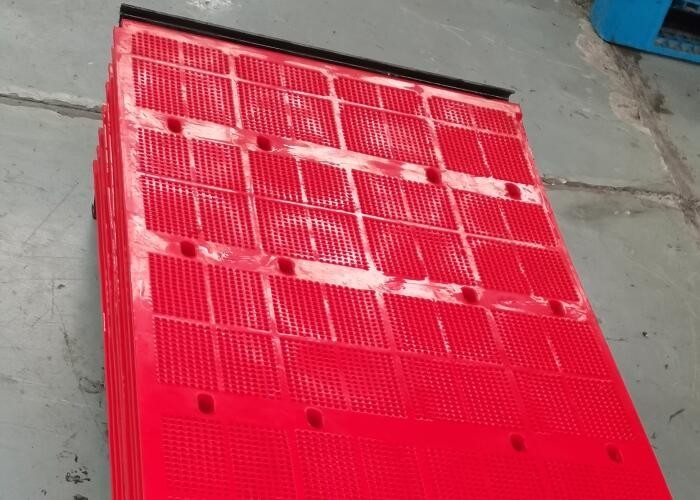

Thickness 7-60mm MDI Polyurethane Dewatering Screen Wear Resistance 0



Thickness 7-60mm MDI Polyurethane Dewatering Screen Wear Resistance 1



Thickness 7-60mm MDI Polyurethane Dewatering Screen Wear Resistance 2
