Modular 80A Pu Screen Panel For Desliming And Dewatering

I'm Online Chat Now

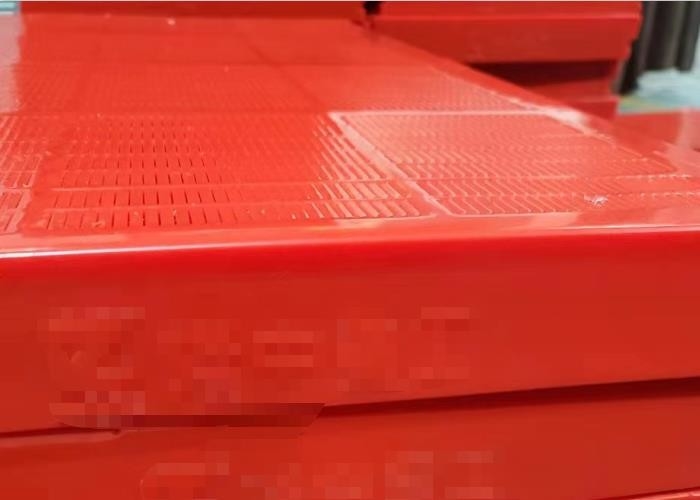

Modular 80A Pu Screen Panel For Desliming And Dewatering

Modular 80A Pu Screen Panel For Desliming And Dewatering
Modular 80A Pu Screen Panel For Desliming And Dewatering Modular 80A Pu Screen Panel For Desliming And Dewatering

Large Image :  Modular 80A Pu Screen Panel For Desliming And Dewatering

Product Details:
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO9001,SGS Test
Model Number: PU Panel
Payment & Shipping Terms:
Minimum Order Quantity: 10 Square Meter
Price: 4000USD-15000USD/Ton
Packaging Details: Put into Carton or on Pallet
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P,
Supply Ability: 10000 Square Meter/Week
Detailed Product Description
Name: Polyurethane Screen Panels Material: TDI Or MDI
Color: Orange Or As Your Requirement Hardness: 80A-95A
Normal Sizes: 305*305*30mm Or Full Sizes. Application: Desliming,Dewatering And Aggregate Industry
Feature: High Durable And High Wear Resistance Operating Temperature: Below 70ºC-60℃
Festerning Type: Rail Support,Pin&Sleeve Or Bolt Down Standard: ISO9001,SGS Test
Screen Thickness: 20-50MM Opening Sizes: 1mm To 100mm
Opening Type: Round,Square, Rectangle,Slotted
High Light:

80a pu screen panel


desliming pu screen panel


dewatering polyurethane screen panels

Easy to Install Modular Polyurethane Screen Panel for Desliming and Dewatering ​


Mamba’s polyurethane screens are manufactured using open-cast process which provides wear life of 1.5 to 2 times longer than that found in injection-molded polyurethane screen. Although open-cast production method is more labor-intensive, but it results in superior wear life performance and minimal maintenance cost, primarily due to the long slow curing process which enhances the cross-linking of the polyurethane molecules.

All raw materials and manufacturing equipment for Mamba’s polyurethane screens are sourced from Europe, and our quality control is certified in accordance with ISO quality management system, allowing us to provide consistent top quality polyurethane screening products.


Mamba Modular Screen Panel System is designed to be versatile to your needs, as well as being easy and safe to install and remove. It’s a user-friendly screen panel system that will do the job you need it to and help you avoid expensive downtime.The szies is customizable.



Polyurethane Tensioned Screen
Opening sizes 4mm-100mm
Thickness 15mm-90mm
Opening Type Square,Round,rectangle
Max width 3000.00mm
Material 80A-95A Polyurethane
Installation Bolt,or With hook



Modular PU Screen Panels






Opening Angle

Height of screening

Area mm





305x305x30 0.3 11-25 11 30 HS60-85
305x305x30 0.5 11-25 11 30 HS60-85
305x305x30 0.75 11-25 11 30 HS60-85
305x305x30 1 11-25 11 30 HS60-85
305x305x30 1.5 11-25 12 30 HS60-85
305x305x30 2 11-25 12 30 HS60-85
610x305x45 0.3 11-25 11 45 HS60-85
610x305x45 0.5 11-25 11 45 HS60-85
610x305x45 0.75 11-25 11 45 HS60-85
610x305x45 1 11-25 11 45 HS60-85
610x305x45 1.5 11-25 12 45 HS60-85
610x305x45 2 11-25 12 45 HS60-85


Polyurethane Screen for mining mineral processing, grading, dehydration and other screening machines replace metal sieve (mesh) of a new product. Mainly used in coal, iron ore, copper, gold and other ores grading, screening, dewatering and other places, is one of the components necessary shaker sieve structure by polyurethane are divided into four types: mosaic bolt Join layering connection screen hook connection.

For example, layering connection type: Please place the sieve screen surface, and then sieve the support beam to install. Should generally be in the screening machine both sides of the upper sieve plate, along with the width under the direction of the appropriate material u type iron suitable distance strip drilling screw holes and then bolt and tighten the underlying support beam, so that prison sieve firmly set in the middle. Strip iron support beams and the contact with the sieve is best to use rubber (can use old hose) pad. Sieve the middle of the support beam above method can also be installed here.

If the sieve plate is not required to install, you may shake it up and down the screen surface, long-term friction and collisions with steel support Liangfa Sheng, will seriously affect the life of sieve.

Screen vertical and horizontal rules are made of high wear-resistant polyurethane, wire article contains. Life than traditional metal mesh 3-10 times higher. Unique structure, suitable elastic and plastic strength, it reduced the card blocking, while the second harmonic due to screen high-frequency vibration section, but also reduce the sticky block. Practical hole high screening efficiency.

Mesh with elastic tension on both sides hook, the overall light weight, good flexibility, easy to transport storage, installation and removal easy. Screen can effectively absorb the shock, reduce noise, improve the working environment.

Special Specification can also be customized according to customer's requirements.



System screen modules are fixed to the substructure bars by means of adapter slats, thus making it compatible to other types of modular systems. there are system units with standard widths of 150 and 300 mm and flexible lengths of up to 1200 mm, all made of highly wear resistant polyurethane.



1.Highly elastic and can be installed easily

2.Light weighted and improved durability

3.Impact proof body and compact design

4.Reduces noise and can withstand high temperature


Material: Steel wire inside and polyurethane outside.
Thickness: 20mm - 60mm.
Opening size: 0.6mm - 160mm.
Screen type: Modular polyurethane screening and tensioned polyurethane panels.
Hole type: Comb, square, oblong, round, fine mesh sieve screen.
Connection types: Mosaic, bolt, layering connection, screen hook connection




Polyurethane Vibrating Screen is widely used for the classification of bulk material, such as coal, minerals, coke, beans, etc. So it can be used in the agriculture, chemical industry, minerals, quarry and smelting industries.

Polyurethane vibrating screen can sort the wet materials, it can be used in the water conservancy and hydropower and dewatering industries.


Modular 80A Pu Screen Panel For Desliming And Dewatering 0


Modular 80A Pu Screen Panel For Desliming And Dewatering 1
