Anping MamBa Screen Mesh MFG.,Co.Ltd alan@mbascreen.com 86-311-86250130
Product Details
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO9001,SGS Test
Model Number: PU
Payment & Shipping Terms
Minimum Order Quantity: 10 Square Meter
Price: negotiable
Packaging Details: Put into Carton or on Pallet
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P,
Supply Ability: 10000 Square Meter/Week
Name: |
Modular Polyurethane Screen Planels |
Material: |
Polyurethane |
Color: |
Red Or As Your Requirement |
Hardness: |
60-95A |
Normal Sizes: |
305*305*30mm |
Application: |
Qarry, Coal,Mining Industrial |
Feature: |
High Wear Resistance |
Operating Temperature: |
Below 70ºC |
Install Stype: |
Rail Support,Pin&Sleeve Or Trim Strip |
Standard: |
ISO9001,SGS Test |
Aperture: |
Slot Or As Your Requirement |
Name: |
Modular Polyurethane Screen Planels |
Material: |
Polyurethane |
Color: |
Red Or As Your Requirement |
Hardness: |
60-95A |
Normal Sizes: |
305*305*30mm |
Application: |
Qarry, Coal,Mining Industrial |
Feature: |
High Wear Resistance |
Operating Temperature: |
Below 70ºC |
Install Stype: |
Rail Support,Pin&Sleeve Or Trim Strip |
Standard: |
ISO9001,SGS Test |
Aperture: |
Slot Or As Your Requirement |
Anping Mam Ba Wire Mesh MFG Company, which is founded in 1989, has been devoted into wire cloth and screen media production for 26 years. The company owns 18 patented products, all of them have been up to EU, GB and ASTM standards. The company has acquired certificates of ISO 14001 Environmental Management System, ISO 9001 Quality Management System and OHSAS 18001 Occupation Health Safety Management System.
Mam Ba Wire Mesh MFG Company has a set of strict procedures to control the quality from materials to final products shipping. Our woven wire cloth has been widely accepted by clients from North America, Australia, Europe and Middle East for its high durability, precision and impact resistance. 90% of our products are used in international markets because they can be perfectly matched with various kinds of vibrating screens including international brands. For all of mining, aggregate, asphalt mixing and road construction industries, every cent saved from high quality production, fast parts changes and a longer part wearlife will be eventually converted into hard profits and real cost reduction of companies. As the most important part of vibrating screens, a set of high-quality wire cloth with high accuracy, long wear life and high anti-impact is the foundation of production quality assurance in all industries above.
Mam Ba Polyurethane Screens
RedStar manufactures a range of polyurethane screens that are lighter, more cost-effective and achieve a longer working life than standard screen panels – even in harsh operating conditions.
RedStar’s expertise in high-tensile polyurethane screens has resulted in extensive range of products designed to suit your particular screening requirements.
PolyUrethane Screens Characteristics:
System screen modules are fixed to the substructure bars by means of adapter slats, thus making it compatible to other types of modular systems. there are system units with standard widths of 150 and 300 mm and flexible lengths of up to 1200 mm, all made of highly wear resistant polyurethane.

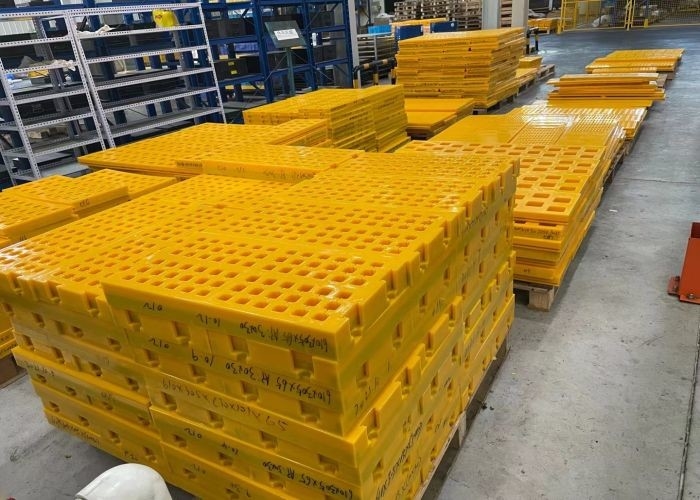

Modular Polyurethane Screens Panels
Modular PU Screen Panels | |||||
Overall Sizes mm |
Aperture mm |
Opening Angle |
Height of screening Area mm |
Thickness mm |
Hardness
|
305x305x30 | 0.3 | 11-25 | 11 | 30 | HS60-85 |
305x305x30 | 0.5 | 11-25 | 11 | 30 | HS60-85 |
305x305x30 | 0.75 | 11-25 | 11 | 30 | HS60-85 |
305x305x30 | 1 | 11-25 | 11 | 30 | HS60-85 |
305x305x30 | 1.5 | 11-25 | 12 | 30 | HS60-85 |
305x305x30 | 2 | 11-25 | 12 | 30 | HS60-85 |
610x305x45 | 0.3 | 11-25 | 11 | 45 | HS60-85 |
610x305x45 | 0.5 | 11-25 | 11 | 45 | HS60-85 |
610x305x45 | 0.75 | 11-25 | 11 | 45 | HS60-85 |
610x305x45 | 1 | 11-25 | 11 | 45 | HS60-85 |
610x305x45 | 1.5 | 11-25 | 12 | 45 | HS60-85 |
610x305x45 | 2 | 11-25 | 12 | 45 | HS60-85 |
PolyUrethane Screens Features:
1. Highly elastic and can be installed easily
2. Light weighted and improved durability
3. Impact proof body and compact design
4. Reduces noise and can withstand high temperature
Polyurethane Screen for mining mineral processing, grading, dehydration and other screening machines replace metal sieve (mesh) of a new product. Mainly used in coal, iron ore, copper, gold and other ores grading, screening, dewatering and other places, is one of the components necessary shaker sieve structure by polyurethane are divided into four types: mosaic bolt Join layering connection screen hook connection.
For example, layering connection type: Please place the sieve screen surface, and then sieve the support beam to install. Should generally be in the screening machine both sides of the upper sieve plate, along with the width under the direction of the appropriate material u type iron suitable distance strip drilling screw holes and then bolt and tighten the underlying support beam, so that prison sieve firmly set in the middle. Strip iron support beams and the contact with the sieve is best to use rubber (can use old hose) pad. Sieve the middle of the support beam above method can also be installed here.
If the sieve plate is not required to install, you may shake it up and down the screen surface, long-term friction and collisions with steel support Liangfa Sheng, will seriously affect the life of sieve.
Screen vertical and horizontal rules are made of high wear-resistant polyurethane, wire article contains. Life than traditional metal mesh 3-10 times higher. Unique structure, suitable elastic and plastic strength, it reduced the card blocking, while the second harmonic due to screen high-frequency vibration section, but also reduce the sticky block. Practical hole high screening efficiency.
Mesh with elastic tension on both sides hook, the overall light weight, good flexibility, easy to transport storage, installation and removal easy. Screen can effectively absorb the shock, reduce noise, improve the working environment.
Special Specification can also be customized according to customer's requirements.
Application:
Polyurethane Vibrating Screen is widely used for the classification of bulk material, such as coal, minerals, coke, beans, etc. So it can be used in the agriculture, chemical industry, minerals, quarry and smelting industries.
Polyurethane vibrating screen can sort the wet materials, it can be used in the water conservancy and hydropower and dewatering industries.
