Product Details:
Payment & Shipping Terms:
|
| Name: | Modular Polyurethane Screen Planels | Material: | PU |
|---|---|---|---|
| Color: | Red Or As Your Requirement | Hardness: | 60-85A |
| Normal Sizes: | 305*305*30mm | Application: | Qarry, Coal,Mining Industrial |
| Feature: | High Wear Resistance | Operating Temperature: | Below 80ºC |
| Install Stype: | Rail Support,Pin&Sleeve Or Trim Strip | Standard: | ISO9001,SGS Test |
| High Light: | urethane screens,polyurethane mesh |
||
Mam Ba Polyurethane Screens
RedStar manufactures a range of polyurethane screens that are lighter, more cost-effective and achieve a longer working life than standard screen panels – even in harsh operating conditions.
RedStar’s expertise in high-tensile polyurethane screens has resulted in extensive range of products designed to suit your particular screening requirements.
Polyurethane Screen for mining mineral processing, grading, dehydration and other screening machines replace metal sieve (mesh) of a new product. Mainly used in coal, iron ore, copper, gold and other ores grading, screening, dewatering and other places, is one of the components necessary shaker sieve structure by polyurethane are divided into four types: mosaic bolt Join layering connection screen hook connection.
Special Specification can also be customized according to customer's requirements.

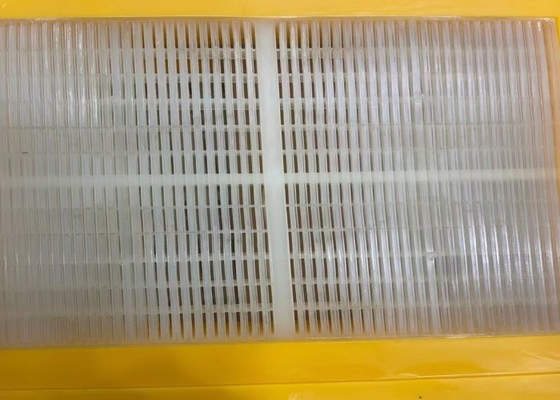

Modular Polyurethane Screens Panels
| Modular PU Screen Panels | |||||
|
Overall Sizes mm |
Aperture mm |
Opening Angle |
Height of screening Area mm |
Thickness mm |
Hardness
|
| 305x305x30 | 0.3 | 11-25 | 11 | 30 | HS60-85 |
| 305x305x30 | 0.5 | 11-25 | 11 | 30 | HS60-85 |
| 305x305x30 | 0.75 | 11-25 | 11 | 30 | HS60-85 |
| 305x305x30 | 1 | 11-25 | 11 | 30 | HS60-85 |
| 305x305x30 | 1.5 | 11-25 | 12 | 30 | HS60-85 |
| 305x305x30 | 2 | 11-25 | 12 | 30 | HS60-85 |
| 610x305x45 | 0.3 | 11-25 | 11 | 45 | HS60-85 |
| 610x305x45 | 0.5 | 11-25 | 11 | 45 | HS60-85 |
| 610x305x45 | 0.75 | 11-25 | 11 | 45 | HS60-85 |
| 610x305x45 | 1 | 11-25 | 11 | 45 | HS60-85 |
| 610x305x45 | 1.5 | 11-25 | 12 | 45 | HS60-85 |
| 610x305x45 | 2 | 11-25 | 12 | 45 | HS60-85 |
Features:
1. Highly elastic and can be installed easily
2. Light weighted and improved durability
3. Impact proof body and compact design
4. Reduces noise and can withstand high temperature
Material:
Steel wire inside and polyurethane outside.
Thickness: 20mm - 60mm.
Opening size: 0.6mm - 160mm.
Screen type: Modular polyurethane screening and tensioned polyurethane panels.
Hole type: Comb, square, oblong, round, fine mesh sieve screen.
Connection types: Mosaic, bolt, layering connection, screen hook connection
Characteristics:
System screen modules are fixed to the substructure bars by means of adapter slats, thus making it compatible to other types of modular systems. there are system units with standard widths of 150 and 300 mm and flexible lengths of up to 1200 mm, all made of highly wear resistant polyurethane.
Application:
Polyurethane Vibrating Screen is widely used for the classification of bulk material, such as coal, minerals, coke, beans, etc. So it can be used in the agriculture, chemical industry, minerals, quarry and smelting industries.
Polyurethane vibrating screen can sort the wet materials, it can be used in the water conservancy and hydropower and dewatering industries.
