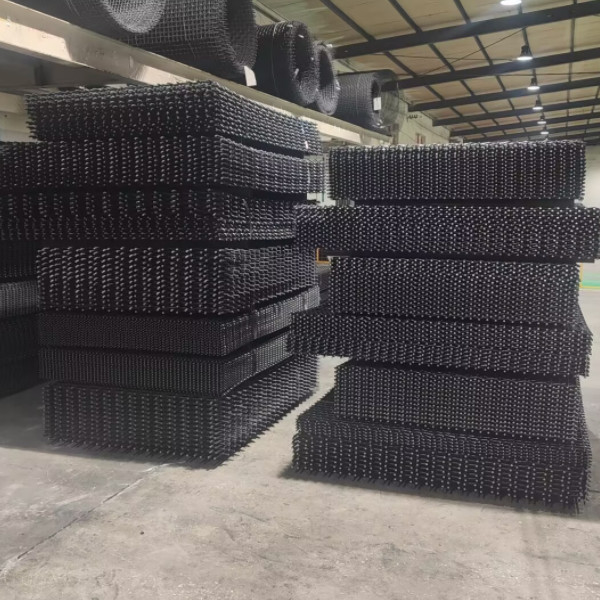

Customizable Screen Heavey Duty Steel Wire Screen Cloth For Recycling Construction

Product Details

Place of Origin: China

Brand Name: Mam Ba

Certification: ISO9001,SGS

Model Number: Steel Wire Screen Cloth

Payment & Shipping Terms

Minimum Order Quantity: 12 Square Meter

Price: $1500-$2500/TON

Packaging Details: On Wooden or Iron Pallet

Delivery Time: Within7-15days

Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram,O/A

Supply Ability: 10000SM/Week

Get Best Price
Product Details
Highlight:

Construction Steel Wire Screen Cloth

,

Customizable Steel Wire Screen Cloth

,

Recycling Steel Wire Screen Cloth

Mainly Material:
High Carbon Steel Wire
Tensile Stregth:
1600-1800Mpa
Weave Type:
Plain Weave,Double Crimped,Dual Lock,Square Flat Top Locked
Aperture:
1mm-152.4mm
Wire Diameter:
0.5-19.04mm
Wire Dia Tolerance:
<3%
Aperture Tolerance:
<3%
Processed Wire:
Annealing Process,Patented Wire,
Surface Treat:
Rust Protection
Feature:
Higher Wear Resistance,Higher Durable
Screen Mesh Width:
500mm-2500mm
Products Name:
Woven Wire Screen Cloths
Advantage:
Lower Cost,Higher Screening Efficiency And Easy To Install And Replace
Application:
Recycling, And Construction
Mainly Material:
High Carbon Steel Wire
Tensile Stregth:
1600-1800Mpa
Weave Type:
Plain Weave,Double Crimped,Dual Lock,Square Flat Top Locked
Aperture:
1mm-152.4mm
Wire Diameter:
0.5-19.04mm
Wire Dia Tolerance:
<3%
Aperture Tolerance:
<3%
Processed Wire:
Annealing Process,Patented Wire,
Surface Treat:
Rust Protection
Feature:
Higher Wear Resistance,Higher Durable
Screen Mesh Width:
500mm-2500mm
Products Name:
Woven Wire Screen Cloths
Advantage:
Lower Cost,Higher Screening Efficiency And Easy To Install And Replace
Application:
Recycling, And Construction
Product Description

Mamba Customizable Screen Heavey Duty Steel Wire Screen Cloth for Recycling, and Construction



Steel wire screen cloth, also known as wire mesh or wire cloth, is a crucial component used in various industrial applications for screening, filtering, and separation. Here’s a detailed look at its features, applications, and benefits:

Key Features



Material Composition:



Made from high-quality steel wire, including carbon steel, stainless steel, and galvanized steel.

Resistant to wear, corrosion, and high temperatures, especially when using stainless steel.



Mesh Design:



Available in various mesh sizes and configurations, allowing for precise control over filtration and separation.

Crimped or welded designs enhance strength and durability.



Customization:



Customizable dimensions, including width, length, and aperture size, to meet specific application needs.



Versatile Weave Patterns:



Different weave patterns (e.g., plain weave, twill weave) can be used to optimize performance based on the application.

Applications



Mining and Mineral Processing:



Used for classifying and separating minerals based on size.

Effective in dewatering and washing processes.



Construction:



Employed in aggregate screening to sort sand, gravel, and crushed stone.

Used in safety fencing and barriers.



Food and Beverage:



Utilized for filtering and sifting food products, ensuring quality and safety.



Pharmaceuticals:



Used in the production and filtration of pharmaceuticals to maintain strict hygiene standards.



Recycling:



Effective in separating recyclable materials based on size and type.



HVAC Systems:



Used in air filtration systems to capture dust and particulates.



Agriculture:



Employed in seed screening and crop protection.



Automotive:



Incorporated in grilles and vents for airflow management.

Benefits

Durability: High resistance to wear and tear, making it suitable for demanding environments.

Versatility: Can be used across various industries and applications.

Customization: Tailored to meet specific requirements, enhancing effectiveness.

Cost-Effectiveness: Long-lasting performance reduces the need for frequent replacements.

Efficiency: Improves operational efficiency in sorting and processing tasks.



screen cloths Material:


highly abrasion-resistant spring steel wire or stainless spring steel wire.

No Grade Chemical Composition
C Si Mn
1 45 0.42-0.50 0.17-0.37 0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60





No Grade Chemical Composition
C Ni Mn Cr
1 304 ≤0.08 8.0-11.0 ≤2 18.0-20.0
2 321 ≤0.08 9.0-12.0 ≤2 17.0-19.0
3 316 ≤0.08 10.0-14.0 ≤2 16.0-18.5
4 2205 ≤0.03 4.5-6.5 2.5-3.5 21.0-24.0
5 2507 ≤0.03 6-8 ≤1.2 24-26





Woven wire screen cloths Edge Types:

Customizable Screen Heavey Duty Steel Wire Screen Cloth For Recycling Construction 0



Woven wire screen cloths Aperture and Wire Diameter:



Opening (Aperture) Wire Diameter Open Area %

Approx. Weight

kg/m2

mm inch mm inch
25.4 1 5.72 0.225 66.62% 13.3
28.58 1 1/8 5.72 0.225 69.43% 12.2
31.75 1 1/4 5.72 0.225 71.80% 10.9
19.05 3/4 6.17 0.243 57.06% 19.1
20 48/61 6.17 0.243 58.41% 18.6
22.23 7/8 6.17 0.243 61.27% 17.3
25.4 1 6.17 0.243 64.73% 15.4
26.99 1 1/16 6.17 0.243 66.25% 14.6
28.58 1 1/8 6.17 0.243 67.64% 13.8
31.75 1 1/4 6.17 0.243 70.11% 12.6
25.4 1 7.19 0.283 60.74% 19.8
28.58 1 1/8 7.19 0.283 63.84% 18.2
31.75 1 1/4 7.19 0.283 66.48% 16.7
38.1 1 1/2 7.19 0.283 70.77% 14.5
25.4 1 7.92 0.312 58.11% 24
28.58 1 1/8 7.92 0.312 61.31% 22
31.75 1 1/4 7.92 0.312 64.06% 20.25
38.1 1 1/2 7.92 0.312 68.54% 17.5
41.28 1 5/8 7.92 0.312 70.40% 16
44.45 1 3/4 7.92 0.312 72.04% 15
50.8 2 7.92 0.312 74.84% 13.5
25.4 1 9.19 0.362 53.92% 30.9
31.75 1 1/4 9.19 0.362 60.14% 26
38.1 1 1/2 9.19 0.362 64.91% 21.4
41.28 1 5/8 9.19 0.362 66.90% 22.4
44.45 1 3/4 9.19 0.362 68.67% 20
50.8 2 9.19 0.362 71.71% 18.1
57.15 2 1/4 9.19 0.362 74.21% 16.2
63.5 2 1/2 9.19 0.362 76.31% 14.85
50.8 2 11.1 0.437 67.35% 25.3
50.8 2 12.7 0.5 64.00% 32.3
57.15 2 1/4 12.7 0.5 66.94% 29.53
63.5 2 1/2 12.7 0.5 69.44% 26.5
76.2 3 12.7 0.5 73.47% 22.7
88.9 3 1/2 12.7 0.5 76.56% 20.2
101.6 4 12.7 0.5 79.01% 17.9






Customizable Screen Heavey Duty Steel Wire Screen Cloth For Recycling Construction 1
