High Durability Crimp Spring Screen For Sieving Filtering And Separation Processes

Name: High Durability Crimp Spring Screen For Sieving Filtering And Separation Processes
Brand: Mam Ba
SKU: Crimp Spring Screen
Price: 1500 USD
Availability: InStock
Rating: 4.5 (194 reviews)

Product Details

Place of Origin: China

Brand Name: Mam Ba

Certification: ISO9001,SGS

Model Number: Crimp Spring Screen

Payment & Shipping Terms

Minimum Order Quantity: 12 Square Meter

Price: $1500-$2500/TON

Packaging Details: On Wooden or Iron Pallet

Delivery Time: Within7-15days

Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram,O/A

Supply Ability: 10000SM/Week

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                High Durability Crimp Spring Screen, Sieving Crimp Spring Screen, Filtering Crimp Spring Screen


Mainly Material:	High Carbon Steel Wire	Tensile Stregth:	1600-1800Mpa
Weave Type:	Plain Weave,Double Crimped,Dual Lock,Square Flat Top Locked	Aperture:	1mm-152.4mm
Wire Diameter:	0.5-19.04mm	Wire Dia Tolerance:	<3%
Aperture Tolerance:	<3%	Processed Wire:	Annealing Process,Patented Wire,
Surface Treat:	Rust Protection	Feature:	Higher Wear Resistance,Higher Durable
Screen Mesh Width:	500mm-2500mm	Products Name:	Woven Wire Screen Cloths
Advantage:	Lower Cost,Higher Screening Efficiency And Easy To Install And Replace	Application:	Classificiation, Sizing, And Mineral Industrial

Mainly Material:	High Carbon Steel Wire
Tensile Stregth:	1600-1800Mpa
Weave Type:	Plain Weave,Double Crimped,Dual Lock,Square Flat Top Locked
Aperture:	1mm-152.4mm
Wire Diameter:	0.5-19.04mm
Wire Dia Tolerance:	<3%
Aperture Tolerance:	<3%
Processed Wire:	Annealing Process,Patented Wire,
Surface Treat:	Rust Protection
Feature:	Higher Wear Resistance,Higher Durable
Screen Mesh Width:	500mm-2500mm
Products Name:	Woven Wire Screen Cloths
Advantage:	Lower Cost,Higher Screening Efficiency And Easy To Install And Replace
Application:	Classificiation, Sizing, And Mineral Industrial

Product Description

High Durability Crimp Spring Screen for Sieving, Filtering, and Separation Processes

CRIMP SPRING SCREEN IS A MAIN ELEMENT OF VIBRATING SCREENS USED FOR CLASSIFICATION AND DRAIN PRODUCTS IN PROCESSING PLANTS OF MINERALPRODUCTS. THEY CAN BE USED IN DIFFERENT AREAS OF ECONOMY TO SCREEN LOOSE

MATERIALS REQUIRED GRAIN SIZE CLASSIFICATION.

WE OFFER CRIMPED SCREENS IN SHEETS AS WELL AS ROLLS. WE ALSO OFFER A VERSION OF SCREENS WITH HOOK FOR CROSSWISE AND LENGTHWISE TENSIONING. SCREENS ARE MADE OF MATERIALS SUCH AS: CARBON STEEL AND HIGH STRENGTH

ALLOYS, STAINLESS, ACID – PROOF, HEAT-RESISTANT MATERIALS, ETC.

Mamba crimp screens are a specialized type of crimp screen designed for use in mining and mineral processing applications. Here are some key features and benefits:

Key Features

Design:
- Mamba crimp screens often have a unique crimp pattern that enhances durability and performance.
- They are specifically engineered to handle high loads and resist wear.
Material:
- Typically made from high-strength materials such as carbon steel, stainless steel, or specialized alloys.
- Options for acid-proof and heat-resistant materials are available for harsh environments.
Versatility:
- Suitable for various applications, including classification and separation of loose materials.
- Can be used in different industries, such as mining, construction, and recycling.
Customization:
- Available in different sizes and configurations, including sheets and rolls.
- Can include hooks for crosswise and lengthwise tensioning to ensure secure fitting.

Woven wire screen cloths Material:

highly abrasion-resistant spring steel wire or stainless spring steel wire.

No	Grade	Chemical Composition
No	Grade	C	Si	Mn
1	45	0.42-0.50	0.17-0.37	0.50-0.80
2	50	0.47-0.55
3	55	0.52-0.60
4	60	0.57-0.65
5	65	0.62-0.70
6	70	0.67-0.75
7	65Mn	0.62-0.70		0.90-1.20
8	72A	0.70-0.75	0.15-0.35	0.30-0.60

No	Grade	Chemical Composition
No	Grade	C	Ni	Mn	Cr
1	304	≤0.08	8.0-11.0	≤2	18.0-20.0
2	321	≤0.08	9.0-12.0	≤2	17.0-19.0
3	316	≤0.08	10.0-14.0	≤2	16.0-18.5
4	2205	≤0.03	4.5-6.5	2.5-3.5	21.0-24.0
5	2507	≤0.03	6-8	≤1.2	24-26

Woven wire screen cloths Edge Types:

Woven wire screen cloths Aperture and Wire Diameter:

Opening (Aperture)		Wire Diameter		Open Area %	Approx. Weight kg/m2
mm	inch	mm	inch	Open Area %	Approx. Weight kg/m2
25.4	1	5.72	0.225	66.62%	13.3
28.58	1 1/8	5.72	0.225	69.43%	12.2
31.75	1 1/4	5.72	0.225	71.80%	10.9
19.05	3/4	6.17	0.243	57.06%	19.1
20	48/61	6.17	0.243	58.41%	18.6
22.23	7/8	6.17	0.243	61.27%	17.3
25.4	1	6.17	0.243	64.73%	15.4
26.99	1 1/16	6.17	0.243	66.25%	14.6
28.58	1 1/8	6.17	0.243	67.64%	13.8
31.75	1 1/4	6.17	0.243	70.11%	12.6
25.4	1	7.19	0.283	60.74%	19.8
28.58	1 1/8	7.19	0.283	63.84%	18.2
31.75	1 1/4	7.19	0.283	66.48%	16.7
38.1	1 1/2	7.19	0.283	70.77%	14.5
25.4	1	7.92	0.312	58.11%	24
28.58	1 1/8	7.92	0.312	61.31%	22
31.75	1 1/4	7.92	0.312	64.06%	20.25
38.1	1 1/2	7.92	0.312	68.54%	17.5
41.28	1 5/8	7.92	0.312	70.40%	16
44.45	1 3/4	7.92	0.312	72.04%	15
50.8	2	7.92	0.312	74.84%	13.5
25.4	1	9.19	0.362	53.92%	30.9
31.75	1 1/4	9.19	0.362	60.14%	26
38.1	1 1/2	9.19	0.362	64.91%	21.4
41.28	1 5/8	9.19	0.362	66.90%	22.4
44.45	1 3/4	9.19	0.362	68.67%	20
50.8	2	9.19	0.362	71.71%	18.1
57.15	2 1/4	9.19	0.362	74.21%	16.2
63.5	2 1/2	9.19	0.362	76.31%	14.85
50.8	2	11.1	0.437	67.35%	25.3
50.8	2	12.7	0.5	64.00%	32.3
57.15	2 1/4	12.7	0.5	66.94%	29.53
63.5	2 1/2	12.7	0.5	69.44%	26.5
76.2	3	12.7	0.5	73.47%	22.7
88.9	3 1/2	12.7	0.5	76.56%	20.2
101.6	4	12.7	0.5	79.01%	17.9

Applications

Classification: Used for grain size classification in various sectors of the economy.
Loose Material Screening: Effective in screening loose materials across different industries.

Product Offerings

Forms Available: Offered in sheets and rolls.
Tensioning Options: Available with hooks for crosswise and lengthwise tensioning, enhancing stability and performance.

Material Composition

Crimp screens are made from a variety of materials, including:

Carbon Steel: For general applications.
High-Strength Alloys: For enhanced durability.
Stainless Steel: For corrosion resistance.
Acid-Proof Materials: Suitable for harsh chemical environments.
Heat-Resistant Materials: Designed for high-temperature applications.

Advantages

Durability: Resistant to wear and tear.
Versatility: Suitable for various industries and applications.
Efficiency: Optimizes the classification process for better productivity.

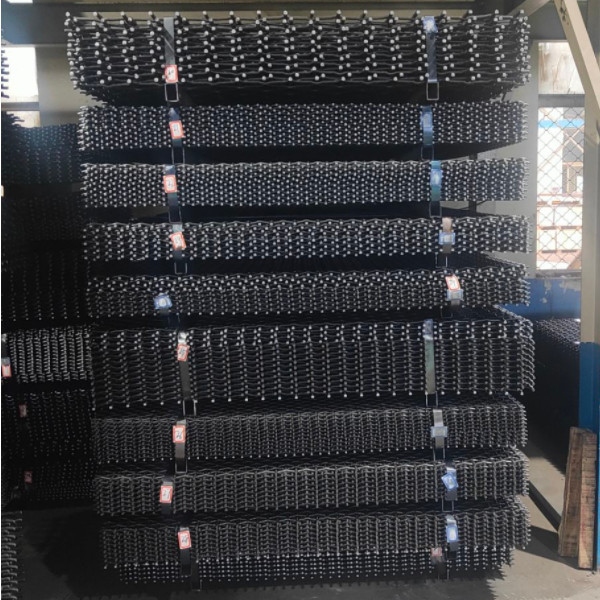

High Durability Crimp Spring Screen For Sieving Filtering And Separation Processes 1
