Product Details
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO9001,SGS
Model Number: Woven Wire Mesh
Payment & Shipping Terms
Minimum Order Quantity: 12 Square Meter
Price: $1500-$2500/TON

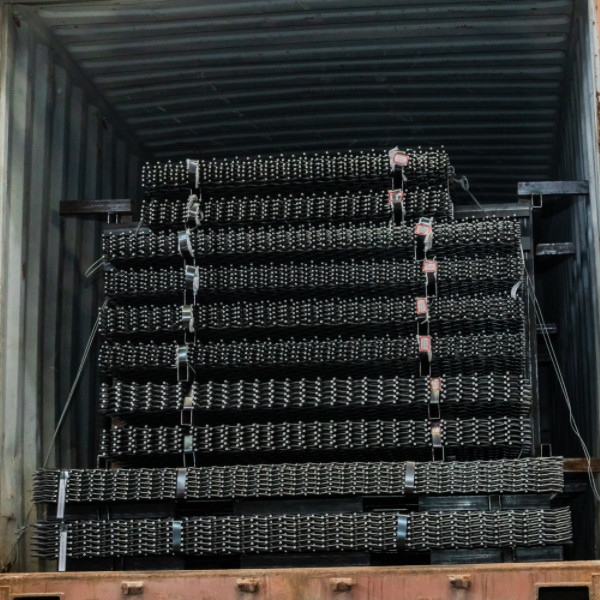

Packaging Details: On Wooden or Iron Pallet
Delivery Time: Within7-15days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram,O/A
Supply Ability: 10000SM/Week
Mainly Material: |
High Resistance Steel |
Tensile Stregth: |
1600-1800Mpa |
Weave Type: |
Plain Weave,Double Crimped,Dual Lock,Square Flat Top Locked |
Aperture: |
1mm-152.4mm |
Wire Diameter: |
0.5-19.04mm |
Wire Dia Tolerance: |
<3% |
Aperture Tolerance: |
<3% |
Processed Wire: |
Annealing Process,Patented Wire, |
Surface Treat: |
Rust Protection |
Feature: |
Higher Wear Resistance,Higher Durable |
Screen Mesh Width: |
500mm-2500mm |
Products Name: |
Woven Wire Screen Cloths |
Advantage: |
Lower Cost,Higher Screening Efficiency And Easy To Install And Replace |
Application: |
Scalping, Aggregate Process |
Mainly Material: |
High Resistance Steel |
Tensile Stregth: |
1600-1800Mpa |
Weave Type: |
Plain Weave,Double Crimped,Dual Lock,Square Flat Top Locked |
Aperture: |
1mm-152.4mm |
Wire Diameter: |
0.5-19.04mm |
Wire Dia Tolerance: |
<3% |
Aperture Tolerance: |
<3% |
Processed Wire: |
Annealing Process,Patented Wire, |
Surface Treat: |
Rust Protection |
Feature: |
Higher Wear Resistance,Higher Durable |
Screen Mesh Width: |
500mm-2500mm |
Products Name: |
Woven Wire Screen Cloths |
Advantage: |
Lower Cost,Higher Screening Efficiency And Easy To Install And Replace |
Application: |
Scalping, Aggregate Process |
Superior Woven Wire Mesh for Sand and Gravel Industry
Use this superior Woven Wire Mesh with confidence Ideal for a wide variety of quarrying and mining applications, this Woven Wire Mesh has strength and reliability. Products ranging from wire cross tensioned screens to trommels and fabricated parts can be manufactured from an assortment of metallic materials to suit your needs.
WHAT WE OFFER
High-quality Woven Wire Mesh ideal for all quarry and mining projects
Woven Wire Mesh can be used in many ways, making it the ideal product to meet your needs, from sifting and screening systems to security and building infrastructure.
This Woven Wire Mesh is sturdy and reliable, created from wire lengths that range in diameter from 0.016 mm (thinner than a human hair) to 12.5 mm. The different sizes mean our experts can create a variety of products in many shapes and configurations. No matter the level of strength or flexibility you seek, a customised product can be created to perfectly meet your needs.
You can expect the best because we use state-of-the-art equipment and several different types of metallic material to construct our Woven Wire Mesh. Whatever your project, there’s a suitable material available.
Advanced manufacturing methods are used to produce high-quality Woven Wire Mesh. We cut, bend, stretch, clean, plasma weld, weld, solder, punch, stamp, compress and form the product to make it truly superior to anything else on the market.
No matter how you will use the Woven Wire Mesh, you can have full confidence that this product will get the job done and provide outstanding results.
KEY BENEFITS
Woven Wire Mesh that offers versatility, strength and durability
Enjoy the flexibility of having Woven Wire Mesh customised just for your needs by our expert team:
Expertly manufactured
The mesh is made by qualified experts using the highest quality materials and high-tech machines to achieve precise dimensional control.
Strong and flexible
Because it can be made from wire of varied diameters to best suit your application, the Woven Wire Mesh can meet your operational needs.
Versatile configurations
Your project needs will always be fulfilled because the Woven Wire Mesh can be woven into any shape or size.
Woven wire screen cloths Material:
highly abrasion-resistant spring steel wire or stainless spring steel wire.
No | Grade | Chemical Composition | ||
C | Si | Mn | ||
1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
2 | 50 | 0.47-0.55 | ||
3 | 55 | 0.52-0.60 | ||
4 | 60 | 0.57-0.65 | ||
5 | 65 | 0.62-0.70 | ||
6 | 70 | 0.67-0.75 | ||
7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
No | Grade | Chemical Composition | |||
C | Ni | Mn | Cr | ||
1 | 304 | ≤0.08 | 8.0-11.0 | ≤2 | 18.0-20.0 |
2 | 321 | ≤0.08 | 9.0-12.0 | ≤2 | 17.0-19.0 |
3 | 316 | ≤0.08 | 10.0-14.0 | ≤2 | 16.0-18.5 |
4 | 2205 | ≤0.03 | 4.5-6.5 | 2.5-3.5 | 21.0-24.0 |
5 | 2507 | ≤0.03 | 6-8 | ≤1.2 | 24-26 |
Woven wire screen cloths Weaving Type:
Woven wire screen cloths Edge Types:
Woven wire screen cloths Aperture and Wire Diameter:
Opening (Aperture) | Wire Diameter | Open Area % |
Approx. Weight kg/m2 |
||
mm | inch | mm | inch | ||
25.4 | 1 | 5.72 | 0.225 | 66.62% | 13.3 |
28.58 | 1 1/8 | 5.72 | 0.225 | 69.43% | 12.2 |
31.75 | 1 1/4 | 5.72 | 0.225 | 71.80% | 10.9 |
19.05 | 3/4 | 6.17 | 0.243 | 57.06% | 19.1 |
20 | 48/61 | 6.17 | 0.243 | 58.41% | 18.6 |
22.23 | 7/8 | 6.17 | 0.243 | 61.27% | 17.3 |
25.4 | 1 | 6.17 | 0.243 | 64.73% | 15.4 |
26.99 | 1 1/16 | 6.17 | 0.243 | 66.25% | 14.6 |
28.58 | 1 1/8 | 6.17 | 0.243 | 67.64% | 13.8 |
31.75 | 1 1/4 | 6.17 | 0.243 | 70.11% | 12.6 |
25.4 | 1 | 7.19 | 0.283 | 60.74% | 19.8 |
28.58 | 1 1/8 | 7.19 | 0.283 | 63.84% | 18.2 |
31.75 | 1 1/4 | 7.19 | 0.283 | 66.48% | 16.7 |
38.1 | 1 1/2 | 7.19 | 0.283 | 70.77% | 14.5 |
25.4 | 1 | 7.92 | 0.312 | 58.11% | 24 |
28.58 | 1 1/8 | 7.92 | 0.312 | 61.31% | 22 |
31.75 | 1 1/4 | 7.92 | 0.312 | 64.06% | 20.25 |
38.1 | 1 1/2 | 7.92 | 0.312 | 68.54% | 17.5 |
41.28 | 1 5/8 | 7.92 | 0.312 | 70.40% | 16 |
44.45 | 1 3/4 | 7.92 | 0.312 | 72.04% | 15 |
50.8 | 2 | 7.92 | 0.312 | 74.84% | 13.5 |
25.4 | 1 | 9.19 | 0.362 | 53.92% | 30.9 |
31.75 | 1 1/4 | 9.19 | 0.362 | 60.14% | 26 |
38.1 | 1 1/2 | 9.19 | 0.362 | 64.91% | 21.4 |
41.28 | 1 5/8 | 9.19 | 0.362 | 66.90% | 22.4 |
44.45 | 1 3/4 | 9.19 | 0.362 | 68.67% | 20 |
50.8 | 2 | 9.19 | 0.362 | 71.71% | 18.1 |
57.15 | 2 1/4 | 9.19 | 0.362 | 74.21% | 16.2 |
63.5 | 2 1/2 | 9.19 | 0.362 | 76.31% | 14.85 |
50.8 | 2 | 11.1 | 0.437 | 67.35% | 25.3 |
50.8 | 2 | 12.7 | 0.5 | 64.00% | 32.3 |
57.15 | 2 1/4 | 12.7 | 0.5 | 66.94% | 29.53 |
63.5 | 2 1/2 | 12.7 | 0.5 | 69.44% | 26.5 |
76.2 | 3 | 12.7 | 0.5 | 73.47% | 22.7 |
88.9 | 3 1/2 | 12.7 | 0.5 | 76.56% | 20.2 |
101.6 | 4 | 12.7 | 0.5 | 79.01% | 17.9 |
MamBa Woven wire screen cloths Application Idea for all Quarry , Aggregate and Mining Projects
