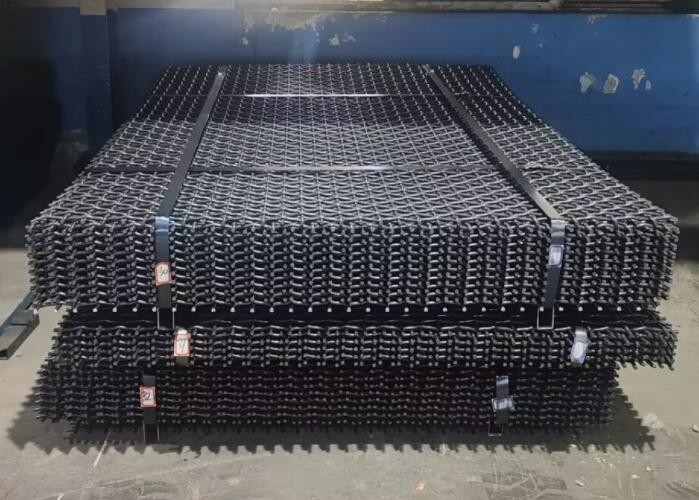

Versatile Woven Wire Screen Mesh Plain Weave Type Mesh Count 1-30mesh

I'm Online Chat Now

Versatile Woven Wire Screen Mesh Plain Weave Type Mesh Count 1-30mesh

Versatile Woven Wire Screen Mesh Plain Weave Type Mesh Count 1-30mesh
Versatile Woven Wire Screen Mesh Plain Weave Type Mesh Count 1-30mesh Versatile Woven Wire Screen Mesh Plain Weave Type Mesh Count 1-30mesh

Large Image :  Versatile Woven Wire Screen Mesh Plain Weave Type Mesh Count 1-30mesh

Product Details:
Place of Origin: China
Brand Name: Mamba Screen
Certification: ISO9001,SGS
Model Number: Woven Wire Screen Mesh
Payment & Shipping Terms:
Minimum Order Quantity: 5 off
Packaging Details: Iron Pallet or Wooden Case
Delivery Time: 10-15days
Payment Terms: TT, DA,DP, OA, and L/C
Supply Ability: 8000㎡/ Month
Detailed Product Description
Wire Diameter: 0.5mm-20mm Diagonal Error: ≤0.3%
Weave Type: Plain Weave, Double Crimped,Locker Crimped Mesh Count: 1-30mesh
Surface Treatment: Galvanized, Oil Rust Prevention, And Painting Shape: Rectangle, Square, Diamond, Etc.
Packaging: Rolls, Wooden Case, Pallets, Etc. Material: Stainless Steel, Low Carbon Steel, High Carbon Steel, Galvanized Steel, Aluminum Alloy, Brass, Copper, Etc.
High Light:

versatile woven wire screen mesh

,

plain weave woven wire screen mesh

,

30mesh woven wire screen cloth

Product Description:

The plain weave (double crimp) type of weave provides simplicity and high weave precision, which is suitable for applications with relatively small openings. The weave can ensure high efficiency and sustained performance screening.

The lock crimp weave type of weave features weft and warp wires that pass each other and get locked together at the point of intersection. Crimping further locks the wires to reduce abrasion. This weave type is particularly suitable for large aperture size and wire diameter applications.

The flat top weave is preferred as it offers a smooth surface for material flow. As there are no obstacles on the smooth surface side, the weave increases the abrasion-resistance lifetime.

The intercrimp weave has extra crimps in warp and weft wires between the intersections. The large open area makes it more rigidity and stable, and the woven wire screen can have higher throughput applications.



Features:

Wire mesh is a versatile and reliable product for use in filtration and separation, simply because it has a wide range of capabilities. It even has apertures ranging from over 6 inches (152.4 mm) to just 1 micron in size. Above that, its open area to flow rate ratio is astonishingly high and its apertures are accurately measured each time for superb control.

The surface of the wire mesh is smooth, featuring no sharp edges, burrs or acute angles. Even better, its temperature tolerance is very high, depending on the metal of choice. Such metal is also essential for ensuring the desired degree of corrosion and acid resistance. It is also noteworthy that wire mesh’s flexibility makes it an ideal product for forming concave and convex shapes.

One of the best features of wire mesh is that it maintains its stability under tension and can even withstand high pressure. Moreover, it serves as a support for less rigid media, and when weaving it no piercing or expanded operations are needed. That said, customers can request custom runs and special apertures without having to pay too much for tooling.



Technical Parameters:

When selecting woven wire screen mesh, understanding and considering several technical parameters is key to ensuring it meets the requirements of the intended application. Below are some important parameters to consider:

  • Wire Diameter: Wire diameter refers to the thickness of the wires used in the mesh. It is typically specified in either gauge or millimeters (mm). The wire diameter will determine the strength, stability, and open area of the mesh.
  • Mesh Count/Mesh Size: Mesh count, also known as mesh size or mesh designation, refers to the number of openings per linear inch or centimeter in the mesh. It will determine the size of particles that can pass through the screen.
  • Opening Size: Opening size is the distance between adjacent wires or the size of the individual openings in the mesh. It is typically specified in microns (μm) or millimeters (mm). As the opening size is determined by the combination of wire diameter and mesh count, selecting the appropriate opening size should depend on the desired particle size or filtration requirement.
  • Weave Type: The weave type of the wire mesh determines the pattern of wire interlocking and the characteristics of the mesh, such as strength, filtration efficiency, and particle retention. Common weave types include plain weave, twill weave, Dutch weave, and reverse Dutch weave.
  • Material: The choice of material for the woven wire screen mesh depends on the specific application requirements. Common materials include stainless steel, carbon steel, brass, and copper. In selecting the material, one should consider its chemical compatibility, temperature resistance, corrosion resistance, and mechanical strength.
  • Tensile Strength: Tensile strength indicates the maximum amount of tensile stress that a wire can withstand before breaking. It is an important parameter to consider for applications where the mesh is subjected to high tension or mechanical stress.
  • Open Area: Open area refers to the percentage of open space in the mesh. It affects the flow capacity, throughput, and screening efficiency of the mesh. Open area is calculated based on the mesh count and wire diameter.
  • Surface Finish: The surface finish of the woven wire screen mesh can vary depending on the application requirements. It can be plain, galvanized, or coated with materials such as epoxy or polyurethane.

These parameters can be customized based on the specific needs of the application. Consulting with a mesh supplier or an expert in the field will help in determining the appropriate technical parameters for the woven wire screen mesh required.



Applications:

Woven wire screen mesh is widely applied in a great variety of industries, from mining and construction to food processing and pharmaceuticals. It is an indispensable tool for applications like classification of particle size, liquid or gas filtration, dewatering, defending equipment from debris and insect screening.

Its multi-purpose application makes wire mesh an essential choice for different industries. Due to its flexibility, wire mesh is easily adjusted to meet different requirements, for example, requiring different openings, mesh count and wire diameter.



Customization:

Mamba Screen offers a wide range of Woven Wire Screen Mesh products, including Harp Screen, Construction Wire Screen, and Weaving Wire Mesh. Our Woven Wire Screen Mesh has a Brand Name of "Mamba Screen" and a Model Number of Woven Wire Screen Mesh. All of our products are Certified with ISO9001 and SGS. The Minimum Order Quantity for our Woven Wire Screen Mesh is 5 off. Our Woven Wire Screen Mesh is available in a variety of Opening Sizes ranging from 0.5mm to 152mm, and a variety of Lengths ranging from 0.5 to 30 meters. We offer a variety of Surface Treatments, including Galvanized, Oil Rust Prevention, and Painting. We use a variety of Materials, including Stainless Steel, Low Carbon Steel, High Carbon Steel, Galvanized Steel, Aluminum Alloy, Brass, and Copper. Our products are packaged in Rolls, Wooden Cases, and Pallets. Our Packaging Details are Iron Pallet or Wooden Case, and our Delivery Time is 10-15 days. We accept various Payment Terms, including TT, DA, DP, OA, and L/C. Our Supply Ability is 8000㎡/ Month. We are based in China and all our products are Place of Origin China.



Support and Services:

Technical Support and Service for Woven Wire Screen Mesh

At our company, we provide technical support and service for our Woven Wire Screen Mesh. Our team consists of highly trained technicians who are experienced in the installation, maintenance, and repair of the product. We also offer troubleshooting advice and guidance on best practices.

We strive to provide the best customer experience possible and are available to answer questions and concerns about our products. Our team of experts is available 24/7 to provide you with the assistance you need.

We also offer a comprehensive warranty that covers any defects in the materials or workmanship of our Woven Wire Screen Mesh. We stand by our products and guarantee your satisfaction.



Packing and Shipping:

Packaging and Shipping

Woven Wire Screen Mesh is typically shipped in rolls or sheets. Rolls are generally wrapped in a protective paper or plastic and secured with straps. Sheets are usually stacked and secured with straps. For both rolls and sheets, the product is then placed into a carton or onto a pallet for shipment.



FAQ:

Q1: What is the brand name of Woven Wire Screen Mesh?
A1: The brand name of Woven Wire Screen Mesh is Mamba Screen.
Q2: What is the model number of Woven Wire Screen Mesh?
A2: The model number of Woven Wire Screen Mesh is Woven Wire Screen Mesh.
Q3: Where is the place of origin of Woven Wire Screen Mesh?
A3: The place of origin of Woven Wire Screen Mesh is China.
Q4: What is the certification of Woven Wire Screen Mesh?
A4: The certification of Woven Wire Screen Mesh is ISO9001,SGS.
Q5: What is the minimum order quantity of Woven Wire Screen Mesh?
A5: The minimum order quantity of Woven Wire Screen Mesh is 5 off.
