Customisable Rolls Sheets Woven Wire Mesh Screens For Sizing And Classification

I'm Online Chat Now

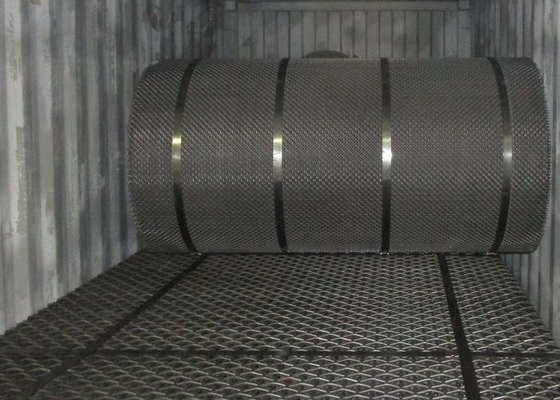

Customisable Rolls Sheets Woven Wire Mesh Screens For Sizing And Classification

Customisable Rolls Sheets Woven Wire Mesh Screens For Sizing And Classification
Customisable Rolls Sheets Woven Wire Mesh Screens For Sizing And Classification Customisable Rolls Sheets Woven Wire Mesh Screens For Sizing And Classification

Large Image :  Customisable Rolls Sheets Woven Wire Mesh Screens For Sizing And Classification

Product Details:
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO9001,SGS
Model Number: Woven wire screen cloths
Payment & Shipping Terms:
Minimum Order Quantity: 12 Square Meter
Price: $1500-$2500/TON
Packaging Details: On Wooden or Iron Pallet
Delivery Time: Within7-15days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram,O/A
Supply Ability: 10000SM/Week
Detailed Product Description
Mainly Material: High Carbon Steel Wire Tensile Stregth: 1600-1800Mpa
Weave Type: Plain Weave,Double Crimped,Dual Lock,Square Flat Top Locked Aperture: 1mm-152.4mm
Wire Diameter: 0.5-19.04mm Wire Dia Tolerance: <3%
Aperture Tolerance: <3% Processed Wire: Annealing Process,Patented Wire,
Surface Treat: Rust Protection Feature: Higher Wear Resistance,Higher Durable
Screen Mesh Width: 500mm-2500mm Products Name: Woven Wire Screen Cloths
Advantage: Lower Cost,Higher Screening Efficiency And Easy To Install And Replace
High Light:

customisable woven wire mesh screens

,

classification woven wire mesh screens

,

classification woven mesh screen

Mamba Customisable Rolls and Sheets Woven wire screen cloths



Mamba Screen Mesh MFG Company’s wire cloth is the fruit of close cooperation with Canadian technology. All equipment in the factory are imported from Germany. Our company strictly follows International Standard, the Guide of Industrial Wire Screen and Woven Wire Cloth. Every process, including Crimping, Weaving, Hook Making, Edge Binding, has its own Work Sheet to cross-reference. Every process must be double-checked and approved by our Quality Supervision Department.



Why Choose Mam Ba

More cost effective

MamBa Screen Mesh MFG Company’s strict quality control system starts at the very beginning: selecting the right material. There are more than 500 steel works in China. We only chose 2 of them as our material suppliers. Except their stable quality (and good qualification we need), they must be able to customize steel wire rods in accordance with correct composition ratios we provide. Most importantly, they must be able to provide the test report of SGS, the international third party test organization for every batch of steel wire rods they produced.Then these steel wire rods, the most suitable material for wire cloth, will be sent to China Juli Group. As our long-term partner, Juli Group, the biggest Sling manufacturer in the world, owns the most advanced wire drawing and heat treatment technique. Here, wires are taking lead patenting process to change their basic micro structure and texture to gain more fine grained pear lite. It is a necessary step to make sure our woven wire cloth features high tensile strength and better ductility.



Now, the material stage is ready. The wires will face one more test after they enter our factory. Our Quality Supervision Department will check its tensile strength, diameter and wire surface to decide if it can meet out company own standard which is actually higher than our National Standards..

Faster Delivery

30,00 tons production capacity per month of screen mesh, 2 million USD of screen mesh and 5 million USD raw materials-wire coils in stock, which make us to offer faster delivery time.One 20’GP Screen Mesh can be produced with in a day.

Stringent Quality Control

The company owns 18 patented products, all of them have been up to EU, GB and ASTM standards. The company has acquired certificates of ISO 14001 Environmental Management System, ISO 9001 Quality Management System and OHSAS 18001 Occupation Health Safety Management System.



Advanced Technologies

Our weaving technologies were introduced from Europe and USA. After more than 30 years Improving and Innovating,We can produce premium screen mesh,Polyurethane Screen and Parts, and offer special customized products.





Woven wire screen cloths Material:


highly abrasion-resistant spring steel wire or stainless spring steel wire.

No Grade Chemical Composition
C Si Mn
1 45 0.42-0.50 0.17-0.37 0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60





No Grade Chemical Composition
C Ni Mn Cr
1 304 ≤0.08 8.0-11.0 ≤2 18.0-20.0
2 321 ≤0.08 9.0-12.0 ≤2 17.0-19.0
3 316 ≤0.08 10.0-14.0 ≤2 16.0-18.5
4 2205 ≤0.03 4.5-6.5 2.5-3.5 21.0-24.0
5 2507 ≤0.03 6-8 ≤1.2 24-26



Woven wire screen cloths Weaving Type:

Customisable Rolls Sheets Woven Wire Mesh Screens For Sizing And Classification 0

Woven wire screen cloths Edge Types:

Customisable Rolls Sheets Woven Wire Mesh Screens For Sizing And Classification 1



Woven wire screen cloths Aperture and Wire Diameter:



Opening (Aperture) Wire Diameter Open Area %

Approx. Weight

kg/m2

mm inch mm inch
25.4 1 5.72 0.225 66.62% 13.3
28.58 1 1/8 5.72 0.225 69.43% 12.2
31.75 1 1/4 5.72 0.225 71.80% 10.9
19.05 3/4 6.17 0.243 57.06% 19.1
20 48/61 6.17 0.243 58.41% 18.6
22.23 7/8 6.17 0.243 61.27% 17.3
25.4 1 6.17 0.243 64.73% 15.4
26.99 1 1/16 6.17 0.243 66.25% 14.6
28.58 1 1/8 6.17 0.243 67.64% 13.8
31.75 1 1/4 6.17 0.243 70.11% 12.6
25.4 1 7.19 0.283 60.74% 19.8
28.58 1 1/8 7.19 0.283 63.84% 18.2
31.75 1 1/4 7.19 0.283 66.48% 16.7
38.1 1 1/2 7.19 0.283 70.77% 14.5
25.4 1 7.92 0.312 58.11% 24
28.58 1 1/8 7.92 0.312 61.31% 22
31.75 1 1/4 7.92 0.312 64.06% 20.25
38.1 1 1/2 7.92 0.312 68.54% 17.5
41.28 1 5/8 7.92 0.312 70.40% 16
44.45 1 3/4 7.92 0.312 72.04% 15
50.8 2 7.92 0.312 74.84% 13.5
25.4 1 9.19 0.362 53.92% 30.9
31.75 1 1/4 9.19 0.362 60.14% 26
38.1 1 1/2 9.19 0.362 64.91% 21.4
41.28 1 5/8 9.19 0.362 66.90% 22.4
44.45 1 3/4 9.19 0.362 68.67% 20
50.8 2 9.19 0.362 71.71% 18.1
57.15 2 1/4 9.19 0.362 74.21% 16.2
63.5 2 1/2 9.19 0.362 76.31% 14.85
50.8 2 11.1 0.437 67.35% 25.3
50.8 2 12.7 0.5 64.00% 32.3
57.15 2 1/4 12.7 0.5 66.94% 29.53
63.5 2 1/2 12.7 0.5 69.44% 26.5
76.2 3 12.7 0.5 73.47% 22.7
88.9 3 1/2 12.7 0.5 76.56% 20.2
101.6 4 12.7 0.5 79.01% 17.9








MamBa Woven wire screen cloths Application Idea for all Quarry , Aggregate and Mining Projects
 Customisable Rolls Sheets Woven Wire Mesh Screens For Sizing And Classification 2

Customisable Rolls Sheets Woven Wire Mesh Screens For Sizing And Classification 3

Customisable Rolls Sheets Woven Wire Mesh Screens For Sizing And Classification 4
