Galvanized Woven Wire Screen Mesh Long Lifespan Double Crimped

I'm Online Chat Now

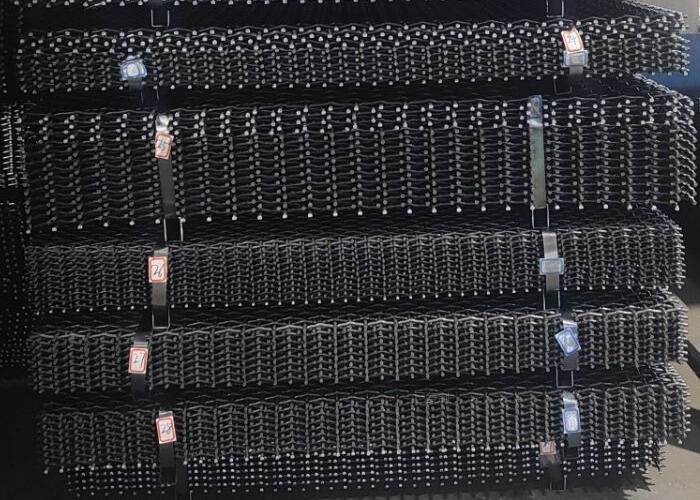

Galvanized Woven Wire Screen Mesh Long Lifespan Double Crimped

Galvanized Woven Wire Screen Mesh Long Lifespan Double Crimped
Galvanized Woven Wire Screen Mesh Long Lifespan Double Crimped Galvanized Woven Wire Screen Mesh Long Lifespan Double Crimped

Large Image :  Galvanized Woven Wire Screen Mesh Long Lifespan Double Crimped

Product Details:
Place of Origin: China
Brand Name: Mamba Screen
Certification: ISO9001,SGS
Model Number: Woven Wire Screen Mesh
Payment & Shipping Terms:
Minimum Order Quantity: 5 off
Packaging Details: Iron Pallet or Wooden Case
Delivery Time: 10-15days
Payment Terms: TT, DA,DP, OA, and L/C
Supply Ability: 8000㎡/ Month
Detailed Product Description
Diagonal Error: ≤0.3% Width: 0.5m-2.5m
Packaging: Rolls, Wooden Case, Pallets, Etc. Wire Diameter: 0.5mm-20mm
Length: 0.5-30meter Mesh Count: 1-30mesh
Surface Treatment: Galvanized, Oil Rust Prevention, And Painting Weave Type: Plain Weave, Double Crimped,Locker Crimped
High Light:

galvanized woven wire screen mesh

,

double crimped woven wire screen mesh

,

long lifespan woven wire screen cloth

Product Description:

The plain weave (double crimp) advantages lies on the simplicity and high precision. It is used for applications when the opening size is small and it can give a long-term performance.

The lock crimp weave provides a way that the weft and warp wires pass each other and get locked together at the point of intersection. This type of weave is suitable for screening applications that have relatively large aperture size and wire diameter.

The flat top weave offers advantages like having a smooth surface which is helpful for material flow. Moreover, its long abrasion resistance lifetime is largely due to the smooth surface which cannot act as an obstacle for the material.

The intercrimp weave is used in applications which need large open space, but have stable wire diameters. It has extra crimps between the intersections and has better rigidity and stability.



Features:

Our wire mesh selection offers an incredible range of filtration and separation capabilities, from apertures of 6 inches (152.4 mm) all the way down to 1 micron nominal. You get a high open area with the wire mesh to facilitate a great flow rate, in comparison to other media. The apertures and are very precise and controlled. The surface is smooth and screened, without any sharp edges, burrs, or acute angles.

The wire mesh is very tough and rigid, yet very flexible and can accommodate concave and convex shapes. There are different metals available to alter the properties, such as the chemical corrosion and acid resistance. We can do short and custom runs to take care of your requests. Plus, special aperture requirements can be met without having to worry about high tooling expenses.

The wire mesh is self-supporting and can handle a great amount of tension and pressure. You can also use it to provide additional support for other less sturdy media. Most importantly, the weaving process goes without any punching, piercing, or expanding that can actually weaken the structure.



Technical Parameters:

When selecting woven wire screen mesh, there are several technical parameters to consider in order to ensure the mesh meets the requirements of the intended application. These parameters include wire diameter, mesh count or mesh size, opening size, weave type, material, tensile strength, open area, and surface finish.

Wire Diameter: Wire diameter refers to the thickness of the wires used in the mesh, and is usually specified in either gauge or millimeters (mm). It affects the strength, stability, and open area of the mesh. Thicker wires provide increased strength but reduce the open area, while thinner wires offer higher open area but may have lower strength.

Mesh Count/Mesh Size: Mesh count, also known as mesh size or mesh designation, is the number of openings per linear inch or centimeter in the mesh. It determines the size of particles that can pass through the screen, and is specified as the number of openings in both the warp (vertical) and weft (horizontal) directions. For example, a 10 mesh screen has 10 openings per inch in both directions.

Opening Size: Opening size is the distance between adjacent wires or the size of the individual openings in the mesh. It is determined by the combination of wire diameter and mesh count, and is typically specified in microns (μm) or millimeters (mm). The appropriate opening size depends on the desired particle size or filtration requirement.

Weave Type: The weave type of the wire mesh determines the pattern of wire interlocking and the characteristics of the mesh. Common weave types include plain weave, twill weave, Dutch weave, and reverse Dutch weave. Each weave type has its own advantages in terms of strength, filtration efficiency, and particle retention capabilities.

Material: The choice of material for the woven wire screen mesh depends on the specific application requirements. Common materials include stainless steel, carbon steel, brass, and copper. The factors that need to be taken into consideration when selecting the material include chemical compatibility, temperature resistance, corrosion resistance, and mechanical strength.

Tensile Strength: Tensile strength is the maximum amount of tensile stress that a wire can withstand before breaking. It is essential to bear in mind, particularly in applications where the mesh is subjected to high tension or mechanical stress.

Open Area: Open area refers to the percentage of open space in the mesh. It is calculated based on the mesh count and wire diameter. Open area affects the flow capacity, throughput, and screening efficiency of the mesh. Higher open area allows for greater flow rates but may result in reduced strength.

Surface Finish: The surface finish of the woven wire screen mesh can vary depending on the application requirements. It can be plain, galvanized, or coated with materials such as epoxy or polyurethane for enhanced durability, corrosion resistance, or improved particle release properties.

These technical parameters can be customized based on the specific needs of the application. Consulting with a mesh supplier or an expert in the field can help in determining the appropriate technical parameters for the woven wire screen mesh required.



Applications:

Woven wire screen mesh is used in a variety of industries. It is helpful for a variety of tasks such as industrying mining, construction, agriculture, food processing, pharmaceuticals, chemical processing, and more. It can be useful for classifying particle size, dewatering, filtering liquids and gases, protecting equipment from debris, and providing insect screening.

It has a variety of uses and advantages, which makes it a popular choice among many businesses. The mesh is durable and capable of standing up to a lot of wear and tear, while still providing the necessary results. It can help processes run smoother and protect products from the hazardous environment.

At the same time, woven wire screen mesh is cost-effective and can provide cost savings over other alternatives. When it is applied correctly, it can be a great asset in any industrial setting. It is easy to install and maintain, making it a great choice for companies in need of an efficient solution.



Customization:

Mamba Screen Woven Wire Screen Mesh

Brand Name: Mamba Screen

Model Number: Woven Wire Screen Mesh

Place of Origin: China

Certification: ISO9001, SGS

Minimum Order Quantity: 5 off

Packaging Details: Iron Pallet or Wooden Case

Delivery Time: 10-15days

Payment Terms: TT, DA, DP, OA, and L/C

Supply Ability: 8000㎡/ Month

Surface Treatment: Galvanized, Oil Rust Prevention, And Painting

Application: Mining, Quarry, Construction, Aggregate, Food Processing, Chemical Industry, Etc.

Aperture Error: ≤3%

Width: 0.5m-2.5m

Packaging: Rolls, Wooden Case, Pallets, Etc.

Keywords:

Steel Wire Mesh, Quarry Screen Mesh, Aggregate Screen Mesh, Galvanized Mesh



Support and Services:

Technical Support and Service for Woven Wire Screen Mesh

We provide comprehensive technical support and service for Woven Wire Screen Mesh. Our team of experienced engineers is available to answer any technical questions you may have and provide advice and solutions. We also offer installation services and maintenance services to ensure your product is operating correctly and efficiently.

We are committed to delivering the highest level of customer service and satisfaction. Our customer service representatives are available to answer any questions you may have and provide assistance with product selection and ordering. We also offer a 30-day satisfaction guarantee on our products to ensure you are completely satisfied.

For more information about our technical support and services for Woven Wire Screen Mesh, please contact us today.



Packing and Shipping:

The packaging and shipping of Woven Wire Screen Mesh will depend on the types and sizes of the product. Generally, it is packaged in wooden cases or open-top boxes, and then put on pallets. The pallets will be secured with shrink-wrapped film. A detailed packing list and a set of documents including the bill of lading, invoice, and quality inspection report will be put in the package.

The shipping method of Woven Wire Screen Mesh is usually by sea or air transport. If the destination is a port, the customer can pick up the goods from the port. If the destination is a non-port area, the customer needs to arrange the next step of transportation.



FAQ:

A1: The Brand Name of Mamba Screen Woven Wire Screen Mesh is Mamba Screen.

A2: The Model Number of Mamba Screen Woven Wire Screen Mesh is Woven Wire Screen Mesh.

A3: The Place of Origin of Mamba Screen Woven Wire Screen Mesh is China.

A4: The Certifications of Mamba Screen Woven Wire Screen Mesh are ISO9001 and SGS.

A5: The Minimum Order Quantity of Mamba Screen Woven Wire Screen Mesh is 5 off.
