Product Details:
Payment & Shipping Terms:
|
| Mainly Material: | High Crabon And 65Mn Steel Wire,304SS Wire | Tensile Stregth: | 1300-1700Mpa |
|---|---|---|---|
| Weave Type: | Double Crimped, Lock Crimped, Flat Top | Aperture: | 1mm-152.4mm |
| Wire Diameter: | 0.5-19.04mm | Wire Dia Tolerance: | <3% |
| Aperture Tolerance: | <3% | Processed Wire: | Lead Bath Process |
| Surface Treat: | Rust Protection | Feature: | Wear Resistance |
| Max Width: | 2500mm | Products Name: | Woven Wire Screen Mesh |
| Advantage: | Lower Cost,Higher Screening Efficiency And Easy To Install And Replace | Application: | Mining |
| Max Length: | 100Meter | ||
| High Light: | aggregate woven wire screen mesh,0.50mm woven wire screen mesh,mining woven mesh screen |
||

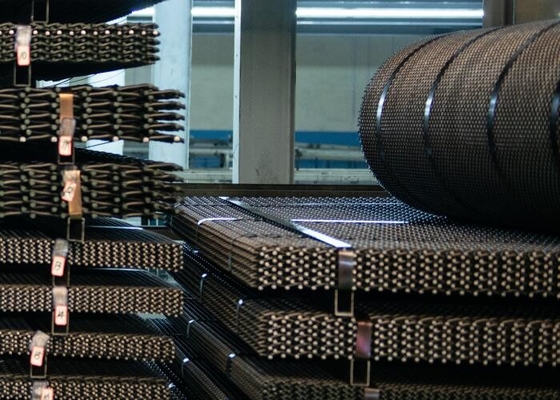

Mamba Rolls And Flat Plates Woven Wire Screen Mesh for Aggregate and Mining
Woven wire screen is the most common type of screening media used in aggregate processing and mining applications due to its features of high open area, high weave precision and high cost-performance ratio.
Aperture tolerance only ±3% is far superior to the industry standards in domestic and global markets, which can lead to high-precision screening and guaranteeing the percentage of material qualification. The high quality materials can yield a higher profit for manufacturers.
Square opening wire mesh is a most commonly used screening media by reason of its highly precise mesh apertures. MamBa’s woven wire screen is offered with the most precision mesh aperture within the global industry. Our square wire mesh features an aperture deviation of only ±3%, which is far superior to international standards of DIN47833 (Europe) and ASTM 2016-15 (North America).
We are able to deliver options of woven wire weave styles to perfectly suit your filtration and separation applications,
| Woven Wire Screen Mesh | |
| Wire Diameter | 0.50mm-19.05mm |
| Weaving Type | Double Crimp,Lock Crimp,Flat Top,Inter Crimp |
| Aperture | 1.00mm-152.00mm |
| Opening Type | Square or Slot |
| Max width | 2500.00mm |
| Products Type | Flat Plates,Rolls, Folding Hook |
| Material | High Carbon Steel Wire or Stainless Steel Wire. |
Weave Types:
Material:
highly abrasion-resistant spring steel wire or stainless spring steel wire.
| No | Grade | Chemical Composition | ||
| C | Si | Mn | ||
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 | ||
| 3 | 55 | 0.52-0.60 | ||
| 4 | 60 | 0.57-0.65 | ||
| 5 | 65 | 0.62-0.70 | ||
| 6 | 70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
| No | Grade | Chemical Composition | |||
| C | Ni | Mn | Cr | ||
| 1 | 304 | ≤0.08 | 8.0-11.0 | ≤2 | 18.0-20.0 |
| 2 | 321 | ≤0.08 | 9.0-12.0 | ≤2 | 17.0-19.0 |
| 3 | 316 | ≤0.08 | 10.0-14.0 | ≤2 | 16.0-18.5 |
| 4 | 2205 | ≤0.03 | 4.5-6.5 | 2.5-3.5 | 21.0-24.0 |
| 5 | 2507 | ≤0.03 | 6-8 | ≤1.2 | 24-26 |
Edge Types:
Features:
Easy to Install
Lower Cost
Higher screening accuracy
Require less maintenance
Sturdy construction
Installation instructions:
the screen is installed with using of tension metallic bars into a separator over different types of hook strips, further with using of side bars and wedges, possibly is fastened into a frame.
Application:
applies to vibrating screens for primary sieving of mine and aggregates, as well as asphalt mixer plant in road building.
