Product Details
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO9001,SGS
Model Number: High Carbon Steel Woven Wire Screen Cloth
Payment & Shipping Terms
Minimum Order Quantity: 10 Square Meter
Price: negotiable
Packaging Details: On Wooden or Iron Pallet
Delivery Time: Within7-15days
Payment Terms: L/C, T/T, D/A, D/P, O/A,Western Union, MoneyGram
Supply Ability: 10000SM/Week
Mainly Material: |
65Mn High Carbon Steel Wire,SS 304 |
Tensile Stregth: |
1200-1780Mpa |
Weave Type: |
Plain Weave,Lock Type |
Aperture: |
1mm-152.4mm |
Wire Diameter: |
0.5-19.04mm |
Wire Dia Tolerance: |
<3% |
Aperture Tolerance: |
<3% |
Processed Wire: |
Annealing Process |
Surface Treat: |
Rust Protection |
Feature: |
Wear Resistance |
Screen Mesh Width: |
500mm-2500mm |
Products Name: |
Steel Woven Wire Screen Cloth |
Advantage: |
Lower Cost,Higher Screening Efficiency And Easy To Install And Replace |
Application: |
Sizing, Mineral Processing, Classification( Coarse-and Fine Screening), Scalping, And Aggregate Processing |
Hook Degree: |
30-45° Or 180° |
Mainly Material: |
65Mn High Carbon Steel Wire,SS 304 |
Tensile Stregth: |
1200-1780Mpa |
Weave Type: |
Plain Weave,Lock Type |
Aperture: |
1mm-152.4mm |
Wire Diameter: |
0.5-19.04mm |
Wire Dia Tolerance: |
<3% |
Aperture Tolerance: |
<3% |
Processed Wire: |
Annealing Process |
Surface Treat: |
Rust Protection |
Feature: |
Wear Resistance |
Screen Mesh Width: |
500mm-2500mm |
Products Name: |
Steel Woven Wire Screen Cloth |
Advantage: |
Lower Cost,Higher Screening Efficiency And Easy To Install And Replace |
Application: |
Sizing, Mineral Processing, Classification( Coarse-and Fine Screening), Scalping, And Aggregate Processing |
Hook Degree: |
30-45° Or 180° |

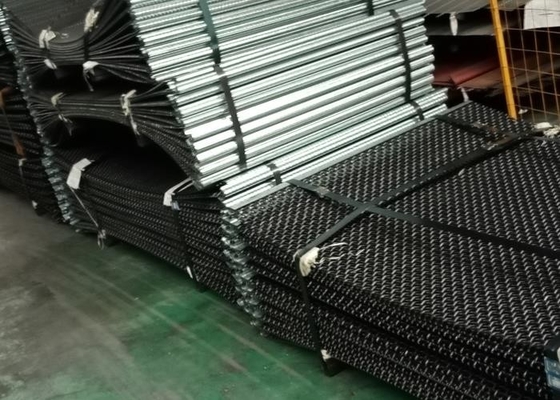

Mamba Woven Wire Screen Cloths
Anping Mam Ba Wire Mesh MFG Company, which is founded in 1989,
has been devoted into wire cloth and screen media production for 26 years.
The company owns 18 patented products, all of them have been up to EU, GB and ASTM standards.
The company has acquired certificates of ISO 14001 Environmental Management System, ISO 9001 Quality Management System and OHSAS 18001 Occupation Health Safety Management System.
Mamba Woven Wire Screen Cloths are a fully customisable screening solution produced using state-of-the-art manufacturing equipment to guarantee quality.
Open area is the surface aperture (opening) of a screening media that allows material, pulled by gravity, to pass through. The greater the open area, the greater the screening capacity.
Open area varies with the screening media type and affects the tonnage or volume of material that can be processed on a screen deck. On screen boxes with multiple decks, the relation of open area and material gradation between the decks is an important efficiency factor that needs to be balanced.
By using the highest quality wires, MamBa is able to decrease its wire diameters, which increases open area and throughput, while providing superior wear life.
| Opening (Aperture) | Wire Diameter | Open Area % |
Approx. Weight kg/m2 |
||
| mm | inch | mm | inch | ||
| 25.4 | 1 | 5.72 | 0.225 | 66.62% | 13.3 |
| 28.58 | 1 1/8 | 5.72 | 0.225 | 69.43% | 12.2 |
| 31.75 | 1 1/4 | 5.72 | 0.225 | 71.80% | 10.9 |
| 19.05 | 3/4 | 6.17 | 0.243 | 57.06% | 19.1 |
| 20 | 48/61 | 6.17 | 0.243 | 58.41% | 18.6 |
| 22.23 | 7/8 | 6.17 | 0.243 | 61.27% | 17.3 |
| 25.4 | 1 | 6.17 | 0.243 | 64.73% | 15.4 |
| 26.99 | 1 1/16 | 6.17 | 0.243 | 66.25% | 14.6 |
| 28.58 | 1 1/8 | 6.17 | 0.243 | 67.64% | 13.8 |
| 31.75 | 1 1/4 | 6.17 | 0.243 | 70.11% | 12.6 |
| 25.4 | 1 | 7.19 | 0.283 | 60.74% | 19.8 |
| 28.58 | 1 1/8 | 7.19 | 0.283 | 63.84% | 18.2 |
| 31.75 | 1 1/4 | 7.19 | 0.283 | 66.48% | 16.7 |
| 38.1 | 1 1/2 | 7.19 | 0.283 | 70.77% | 14.5 |
| 25.4 | 1 | 7.92 | 0.312 | 58.11% | 24 |
| 28.58 | 1 1/8 | 7.92 | 0.312 | 61.31% | 22 |
| 31.75 | 1 1/4 | 7.92 | 0.312 | 64.06% | 20.25 |
| 38.1 | 1 1/2 | 7.92 | 0.312 | 68.54% | 17.5 |
| 41.28 | 1 5/8 | 7.92 | 0.312 | 70.40% | 16 |
| 44.45 | 1 3/4 | 7.92 | 0.312 | 72.04% | 15 |
| 50.8 | 2 | 7.92 | 0.312 | 74.84% | 13.5 |
| 25.4 | 1 | 9.19 | 0.362 | 53.92% | 30.9 |
| 31.75 | 1 1/4 | 9.19 | 0.362 | 60.14% | 26 |
| 38.1 | 1 1/2 | 9.19 | 0.362 | 64.91% | 21.4 |
| 41.28 | 1 5/8 | 9.19 | 0.362 | 66.90% | 22.4 |
| 44.45 | 1 3/4 | 9.19 | 0.362 | 68.67% | 20 |
| 50.8 | 2 | 9.19 | 0.362 | 71.71% | 18.1 |
| 57.15 | 2 1/4 | 9.19 | 0.362 | 74.21% | 16.2 |
| 63.5 | 2 1/2 | 9.19 | 0.362 | 76.31% | 14.85 |
| 50.8 | 2 | 11.1 | 0.437 | 67.35% | 25.3 |
| 50.8 | 2 | 12.7 | 0.5 | 64.00% | 32.3 |
| 57.15 | 2 1/4 | 12.7 | 0.5 | 66.94% | 29.53 |
| 63.5 | 2 1/2 | 12.7 | 0.5 | 69.44% | 26.5 |
| 76.2 | 3 | 12.7 | 0.5 | 73.47% | 22.7 |
| 88.9 | 3 1/2 | 12.7 | 0.5 | 76.56% | 20.2 |
| 101.6 | 4 | 12.7 | 0.5 | 79.01% | 17.9 |
Mamba Woven Wire Screen Cloths are completely versatile to your needs. These screens can be made in a huge variety of wire sizes and weaving patterns. We’d be more than happy to recommend a configuration to suit your operations
Not all screen cloths are made equal, and that’s where the Mamba difference comes in. Mamba Woven Wire Screens are made using state-of-the-art equipment by highly qualified experts. We provide quality screens you can rely on.
1.Carbon Steel Wire Parameter:
| No | Grade | Chemical Composition | ||
| C | Si | Mn | ||
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 | ||
| 3 | 55 | 0.52-0.60 | ||
| 4 | 60 | 0.57-0.65 | ||
| 5 | 65 | 0.62-0.70 | ||
| 6 | 70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
2.Stainless Steel Wire Paramter:
| No | Grade | Chemical Composition | |||
| C | Ni | Mn | Cr | ||
| 1 | 304 | ≤0.08 | 8.0-11.0 | ≤2 | 18.0-20.0 |
| 2 | 321 | ≤0.08 | 9.0-12.0 | ≤2 | 17.0-19.0 |
| 3 | 316 | ≤0.08 | 10.0-14.0 | ≤2 | 16.0-18.5 |
| 4 | 2205 | ≤0.03 | 4.5-6.5 | 2.5-3.5 | 21.0-24.0 |
| 5 | 2507 | ≤0.03 | 6-8 | ≤1.2 | 24-26 |
Mamba Woven Wire Screen Cloths have been designed to withstand the most difficult screening applications. By choosing the right configuration for your operations, you’ll be able to reduce the frequency of pegging and blinding in your screens
Weave Types:
Edge Types:
Benefits include:
Reduced component costs because of Longer Wear life
Reduced labor costs because of fewer replacements and repairs
Quick and simple installation
Less caking with mixer, discharge hopper and skip
Easy cleaning
Increases profitability
Application:sizing, mineral processing, classification( coarse-and fine screening), scalping, and aggregate processing
