Product Details:
Payment & Shipping Terms:
|
| Mainly Material: | High Crabon And Mn Steel Wire,304SS Wire | Tensile Stregth: | 1400-1700Mpa |
|---|---|---|---|
| Weave Type: | Double Crimped, Lock Crimped, Flat Top | Aperture: | 1mm-152.4mm |
| Wire Diameter: | 0.5-19.04mm | Wire Dia Tolerance: | <3% |
| Aperture Tolerance: | <3% | Processed Wire: | Lead Bath Process |
| Surface Treat: | Rust Protection | Feature: | Wear Resistance |
| Screen Mesh Width: | 500mm-2500mm | Products Name: | High Carbon And Mn Steel Wire Screen Mesh |
| Advantage: | Lower Cost,Higher Screening Efficiency And Easy To Install And Replace | Install Type: | Edge Hook Or Bolt |
| High Light: | 0.5mm quarry screen mesh,mn steel wire quarry screen mesh,19.05mm quarry mesh |
||

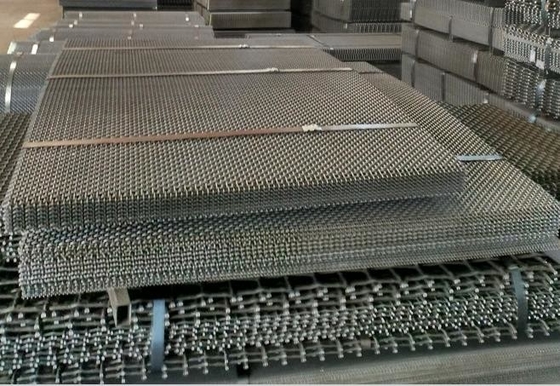

Mam Ba High Carbon and Mn Steel Wire Screen Mesh for Mining Quarry
Woven wire screen is the most common type of screening media used in aggregate processing and mining applications due to its features of high open area, high weave precision and high cost-performance ratio.
Aperture tolerance only ±3% is far superior to the industry standards in domestic and global markets, which can lead to high-precision screening and guaranteeing the percentage of material qualification. The high quality materials can yield a higher profit for manufacturers.
Square opening wire mesh is a most commonly used screening media by reason of its highly precise mesh apertures. Red Star’s woven wire screen is offered with the most precision mesh aperture within the global industry. Our square wire mesh features an aperture deviation of only ±3%, which is far superior to international standards of DIN47833 (Europe) and ASTM 2016-15 (North America).
We are able to deliver options of woven wire weave styles to perfectly suit your filtration and separation applications,
such as:
plain weave (double crimp)
The advantages of plain weave woven wire mesh are simplicity and high weave precision. This type of weave is used where the opening is relatively small, can guarantee achieving high efficiency and sustained performance screening.
lock crimp weave
In the lock crimp weave type, weft and warp wires pass each other and get locked together at the point of intersection. The crimping is done to lock the wires to prevent from abrasion caused by wire movements. This weave type works perfectly for screening applications where the aperture size and wire diameter are relatively large.
flat top weave
The flat top weave offers a smooth surface for easier material flow. This type of woven wire provides long abrasion resistance lifetime since there are no obstacles on the smooth surface side to strike the material during its flowing.
intercrimp weave
Intermediate crimp, or simply intercrimp has extra crimps in warp and weft wires between the intersections, it is primarily used where larger aperture size is required while the wire diameter remains stable. The rigidity and stability are greater than common woven wire screen.Thanks to its feature of large open area, the intercrimp woven wire screen is ideally suited for use in applications with high throughput.
| Woven Wire Screen Mesh | |
| Wire Diameter | 0.50mm-19.05mm |
| Weaving Type | Double Crimp,Lock Crimp,Flat Top,Inter Crimp |
| Aperture | 1.00mm-152.00mm |
| Opening Type | Square or Slot |
| Max width | 2500.00mm |
| Products Type | Flat Plates,Rolls, Folding Hook |
| Material | High Carbon Steel Wire or Stainless Steel Wire. |
Edge Types:
Weaving Types:
Mam Ba High Carbon and Mn Steel Wire Screen Mesh for Mining Quarry application:
