Anping MamBa Screen Mesh MFG.,Co.Ltd
Home ProductsWoven Wire Screen Mesh

Wire Aggregate 0.5mm Quarry Screen Mesh Double Crimped

I'm Online Chat Now

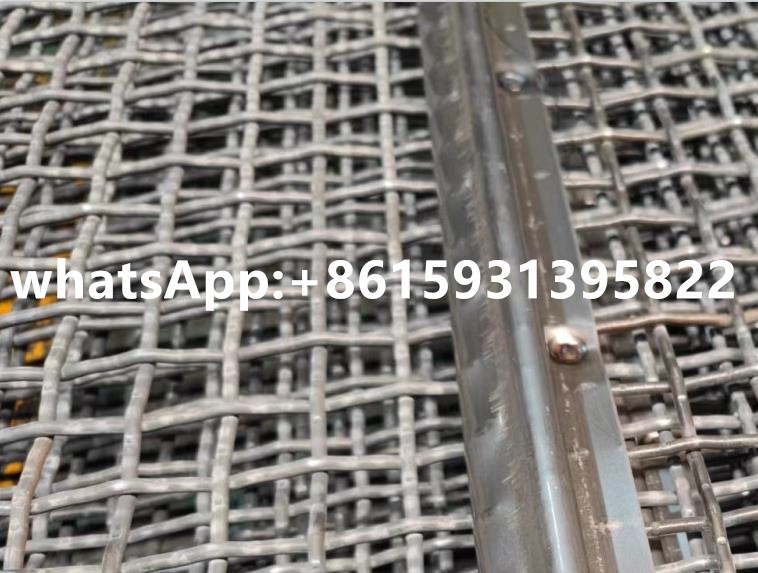

Wire Aggregate 0.5mm Quarry Screen Mesh Double Crimped

Wire Aggregate 0.5mm Quarry Screen Mesh Double Crimped
Wire Aggregate 0.5mm Quarry Screen Mesh Double Crimped Wire Aggregate 0.5mm Quarry Screen Mesh Double Crimped

Large Image :  Wire Aggregate 0.5mm Quarry Screen Mesh Double Crimped

Product Details:
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO9001,SGS
Model Number: Wire Screen Mesh
Payment & Shipping Terms:
Minimum Order Quantity: 10 Square Meter
Price: 1100-8000USD/TON
Packaging Details: On Wooden or Iron Pallet
Delivery Time: Within5-15days
Payment Terms: L/C, T/T, D/A, D/P, O/A,Western Union, MoneyGram
Supply Ability: 100-120TN/DAYS
Detailed Product Description
Mainly Material: Middle And High Crabon Mn Steel Wire,304SS Wire Tensile Stregth: 1200-1700Mpa
Weave Type: Double Crimped, Lock Crimped, Flat Top Aperture: 1mm-152.4mm
Wire Diameter: 0.5-19.04mm Wire Dia Tolerance: <3%
Aperture Tolerance: <3% Processed Wire: Lead Bath Process
Surface Treat: Rust Protection Feature: Longer Screen Life And Save Downtime
Screen Mesh Width: 500mm-2500mm Products Name: Wire Screen Mesh
Advantage: Lower Cost,Higher Screening Efficiency And Easy To Install And Replace Application: Qarry, Coal,Mining Industrial, And Construction
High Light:

double crimped aggregate screen cloth


0.5mm wire quarry screen mesh


double crimped quarry screen mesh

Mam Ba are leading screen mesh manufacturer in China. We operate strictly following the guidance of ISO 14001Environmental Management System, ISO 9001 Quality Management System and OHSAS 18001 Occupation Health Safety Management System. There is no any waste or pollution made, leaked or dumped during our production.Mam Ba sincerely hopes to become your lifelong reliable and trust-able friends in mining screening industry


Material,looks the same but different


The best screens must have the right combination of all three critical factors- ductility, tensile strength and hardness. To achieve all 3 factors above, Red Star does not only focus on quality materials but also adopts special heat treatment process to improve overall performance of steel wires. After treatment, both internal structure and physical properties of steel wire has been significantly improved.


The Devil is in the details that is why we care


To make right screen media, Mam Ba, the biggest screen media manufacturer in China, has invested heavily in technology and equipment. We own 10 production lines and more than 600 crimping wheels. But more importantly, we own a capable and professional team of workers who always pay attention to details during the production.



Our ultimate goal: Zero Defect.


Building a successful team is not only about finding a group of people with the right mix of professional skills, but also about focusing on the goal, hardworking and leadership. To achieve our goal, namely making right screen media, Mam Ba has set up a set of strict working procedures to supervise the whole process.


Mainly Raw Material List:


Carbon Steel Wire Parameter:


No Grade Chemical Composition
C Si Mn
1 45 0.42-0.50 0.17-0.37 0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60


Stainless Steel Wire Paramter:

No Grade Chemical Composition
C Ni Mn Cr
1 304 ≤0.08 8.0-11.0 ≤2 18.0-20.0
2 321 ≤0.08 9.0-12.0 ≤2 17.0-19.0
3 316 ≤0.08 10.0-14.0 ≤2 16.0-18.5
4 2205 ≤0.03 4.5-6.5 2.5-3.5 21.0-24.0
5 2507 ≤0.03 6-8 ≤1.2 24-26


Edge Types:
 Wire Aggregate 0.5mm Quarry Screen Mesh Double Crimped 0
Weave Types:
 Wire Aggregate 0.5mm Quarry Screen Mesh Double Crimped 1


Screen Attributes


1.Cutting edge micro-grain structure


2.Strong enough to withstand trauma or product impact, vibration

fatigue and stress of vibratory units


3.Longer screen life reduces screen changes, saves downtime and

reduces cost per ton


4.Uniform hardness and wire diameter for increased wear life


5.Offered in space, mesh, slotted openings and anti-blinding designs




1.Saves downtime and costs

2.Wears thin and smooth for predictable screen replacement and a

healthier bottom line

3.Spend less time changing screens and more time generating product

4.Increases profitability


 Main Applications


1.Sand Aggregate (Quarries)

2.Mining Companies & Mining Machinery

3.Road Construction Companies & Road machinery

4.Hot Mix Asphalt (HMA) Plants

5.Construction materials recycle


Wire Aggregate 0.5mm Quarry Screen Mesh Double Crimped 2
