Width 500mm Woven 1800Mpa Metal Wire Mesh Screen

I'm Online Chat Now

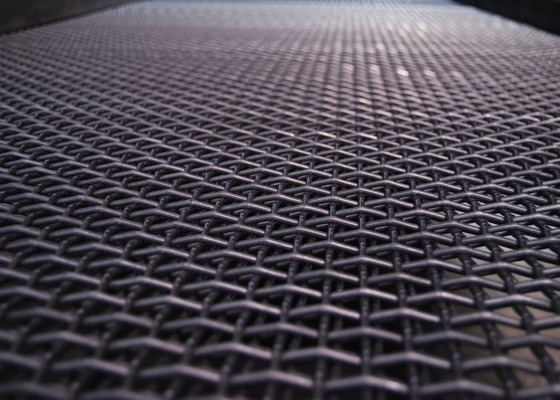

Width 500mm Woven 1800Mpa Metal Wire Mesh Screen

Width 500mm Woven 1800Mpa Metal Wire Mesh Screen
Width 500mm Woven 1800Mpa Metal Wire Mesh Screen Width 500mm Woven 1800Mpa Metal Wire Mesh Screen

Large Image :  Width 500mm Woven 1800Mpa Metal Wire Mesh Screen

Product Details:
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO9001,SGS
Model Number: High Carbon Steel Wire Screen Mesh
Payment & Shipping Terms:
Minimum Order Quantity: 10 Square Meter
Price: negotiable
Packaging Details: On Wooden or Iron Pallet
Delivery Time: Within7-15days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000SM/Week
Detailed Product Description
Mainly Material: Middle And High Carbon Steel Wire,304 Stainless Steel Wire Tensile Stregth: 1600-1800Mpa
Aperture: 1mm-152.4mm Wire Diameter: 0.5-19.04mm
Wire Dia Tolerance: <3% Aperture Tolerance: <3%
Processed Wire: Annealing Process Surface Treat: Rust Protection
Feature: Wear Resistance Screen Mesh Width: 500mm-2500mm
Products Name: Metal Wire Mesh Screen Advantage: Lower Cost,Higher Screening Efficiency And Easy To Install And Replace
Weave Type: Plain Weave,Lock Type,Flat Top Aperture Sizes: Square, Rectangle
High Light:

1800mpa metal wire mesh screen


width 500mm woven metal screen

Mam Ba 65Mn High Carbon Steel Wire Quarry Screen Mesh for Aggregate and Quarry


The Lock Crimp Mesh is produced via the pre-crimp technique. The warp and Shute wires are both crimped at their points of intersection and ensures that there is no wire movement in the mesh. This makes the lock crimp wire cloth a very hearty stainless steel screen mesh.

Lock Crimped Mesh is characterized by straight sections of wire connected by a well defined bump at the wire intersections, such a manner to actually lock the wires together, offering further assurance of no wire movement. Our lock crimp wire mesh is good in quality and competitive at price.

Weave Type:
Single intermediate crimp screen, double intermediate crimp screen, lock crimp screen, flat top screen, pressure welded screen.

Hook type:
Metal sheet hook. (C type or U type).

Crimped wire mesh is used as fence or filters in a lot of industries; Heavy Duty Crimped wire mesh are also named Quarry Mesh, it is mostly used as screen in mining, coal factory.



Our Products Metal Screen Mesh:

Mainly Material:highly abrasion-resistant spring steel wire or stainless spring steel wire.


1.Carbon Steel Wire Parameter:


No Grade Chemical Composition
C Si Mn
1 45 0.42-0.50 0.17-0.37 0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60


2.Stainless Steel Wire Paramter:


No Grade Chemical Composition
C Ni Mn Cr
1 304 ≤0.08 8.0-11.0 ≤2 18.0-20.0
2 321 ≤0.08 9.0-12.0 ≤2 17.0-19.0
3 316 ≤0.08 10.0-14.0 ≤2 16.0-18.5
4 2205 ≤0.03 4.5-6.5 2.5-3.5 21.0-24.0
5 2507 ≤0.03 6-8 ≤1.2 24-26



Opening size:

1 - 152.4 mm

Wire diameter:

0.5 - 19.05mm
Hole type: square, rectangular and long slot.

Supplied dimensions:

as required by customer.Rolls or Cut to Flat Plate

Aperture, Wire Diameter and Diagonal Error or Tolerance:

1. Aperture error: ≤3%,which is better than International Standards;

2. Wire diameter error: ±3%;

3. Diagonal error: ≤9mm every 2m;

It ensures every piece of wire cloth we made can be etching with remarkable sign of Mam Ba: square, flatness and right tightness.

The Woven Wire Screens are manufactured with an industry-leading stringent wire opening of ±3% and extremely tight crimps and weave for a longer wear life and the elimination of premature failure.

Weave Types:

 Width 500mm Woven 1800Mpa Metal Wire Mesh Screen 0

Edge Types:
Width 500mm Woven 1800Mpa Metal Wire Mesh Screen 1
Hook and Edge:
1.Our hook making adopts the electromagnetic coil heating process. All hooks are one-time forming. There are different type of hooks and edges available.
2.We can provide wire cloth with or without hooks and wire cloth rolls in different size according to client’s requests.



Mam Ba Wire Mesh MFG Company’s strict quality control system starts at the very beginning:


selecting the right material. There are more than 500 steel works in China.


We only chose 2 of them as our material suppliers.


Except their stable quality (and good qualification we need),


they must be able to customize steel wire rods in accordance with correct composition ratios we provide Most importantly,


they must be able to provide the test report of SGS, the international third party test organization for every batch of steel wire rods they produced.


Mam Ba Wear Resistance Metal Wire Mesh Screensused Cases:

Anping Mam Ba Wire Mesh MFG.,Co.Ltd


In the last 30 Years, Customer Satification and Protection of

of the environment and workers' health are priority objectives to Mam Ba.Consistently with this choice,

Mam Ba Has Implemented a quality management system conforming to standard ISO 9001,

An environmental system conforming to standard ISO 14001 and an Occupational Health and

Safety system conforming to standard OHSAS 180Width 500mm Woven 1800Mpa Metal Wire Mesh Screen 2
