Anping MamBa Screen Mesh MFG.,Co.Ltd
Home ProductsMetal Wire Mesh Screen

Mining / Mineral Processing Heavy Metal Mesh Screen 0.5mm Dia

I'm Online Chat Now

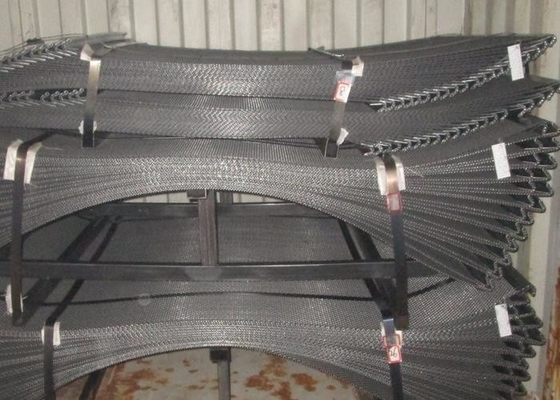

Mining / Mineral Processing Heavy Metal Mesh Screen 0.5mm Dia

Mining / Mineral Processing Heavy Metal Mesh Screen 0.5mm Dia
Mining / Mineral Processing Heavy Metal Mesh Screen 0.5mm Dia Mining / Mineral Processing Heavy Metal Mesh Screen 0.5mm Dia

Large Image :  Mining / Mineral Processing Heavy Metal Mesh Screen 0.5mm Dia

Product Details:
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO9001,SGS
Model Number: Wire Cloths
Payment & Shipping Terms:
Minimum Order Quantity: 10 Square Meter
Price: $1500-$3000/Ton
Packaging Details: On Wooden or Iron Pallet
Delivery Time: Within7-15days
Payment Terms: L/C, T/T, D/A, D/P, O/A Western Union, MoneyGram
Supply Ability: 10000SM/Week
Detailed Product Description
Mainly Material: Optimum Wire Tensile Stregth: 1600-1800Mpa
Weave Type: Plain Weave,Lock Type Aperture: 1mm-152.4mm
Wire Diameter: 0.5-19.04mm Wire Dia Tolerance: <3%
Aperture Tolerance: <3% Processed Wire: Patented Process
Surface Treat: Rust Protection Feature: Long Wear Resistance,Greater Open Area
Screen Mesh Width: 500mm-2500mm Products Name: Wire Cloths
Advantage: Lower Cost,Higher Screening Efficiency And Easy To Install And Replace Application: Quarry,Mining,Construction
High Light:

mining processing heavy metal mesh screen

,

0.5mm dia heavy metal mesh screen

,

mineral processing heavy wire mesh screen

Mamba Screen Mesh MFG.,Company

MamBa Screen Mesh MFG Company is very experienced and good at manufacturing per-crimped woven wire screens, especially heavy duty ones. All our screen meshes are made to the highest quality specifications with a specific type of screen available to suite any of clients’ certain screening requirements.

With 40 years around in the screening media industry business line, our knowledge and expertise has evolved to where we can supply the clients with the optimal products and solution to their screening requirements at the lowest total cost. We offer a complete range of openings, wire diameters, materials and weave types enabling us to provide you with the optimum wire screen media product for your application. Our extensive inventories allow us to supply you the most suitable product to your exact applications.

Mining / Mineral Processing Heavy Metal Mesh Screen 0.5mm Dia 0



A wire’s quality plays an essential role in a screening media’s performance. The effective quality of wire depends on the right balance of three factors:



1.HARDNESS Resistance to abrasion and wear

2.TENSILE STRENGTH Resistance to failure/breakage under stress

3.DUCTILITY Capacity to support stress and to be formed without breaking or losing its properties

Mam Ba ensures optimum wire quality and consistency at all times by developing, (through its own specifications and internal laboratory quality controls), the best recipe for a wire’s chemical content to optimize all factors, and by using the most advanced patented wire-making process, Major also only uses the highest quality of stainless steel wires with the highest tensile strength, available in Type 304 and Type 316.



Material:
highly abrasion-resistant spring steel wire or stainless spring steel wire.

No Grade Chemical Composition
C Si Mn
1 45 0.42-0.50 0.17-0.37 0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60





No Grade Chemical Composition
C Ni Mn Cr
1 304 ≤0.08 8.0-11.0 ≤2 18.0-20.0
2 321 ≤0.08 9.0-12.0 ≤2 17.0-19.0
3 316 ≤0.08 10.0-14.0 ≤2 16.0-18.5
4 2205 ≤0.03 4.5-6.5 2.5-3.5 21.0-24.0
5 2507 ≤0.03 6-8 ≤1.2 24-26



Wire Cloths
Wire Diameter 0.50mm-19.05mm
Weaving Type Double Crimp,Lock Crimp,Flat Top,Inter Crimp
Aperture 1.00mm-152.00mm
Opening Type Square or Slot
Max width 2500.00mm
Products Type Flat Plates,Rolls, Folding Hook
Material High Carbon Steel Wire or Stainless Steel Wire.



Application:



Screen Cloths is used for sizing, mineral processing, classification, scalping, and aggregate processing. The screen media depending on its specific function to choose different materials. Our screen media in many different materials to serve diversified applications and use cases.



Mining / Mineral Processing Heavy Metal Mesh Screen 0.5mm Dia 1

Mining / Mineral Processing Heavy Metal Mesh Screen 0.5mm Dia 2

Mining / Mineral Processing Heavy Metal Mesh Screen 0.5mm Dia 3
