Double 1600mpa Plain Weave 19.04mm Gravel Screen Mesh In Quarry Industrial

Product Details

Place of Origin: China

Brand Name: Mam Ba

Certification: ISO9001,SGS

Model Number: High Carbon Steel Wire Screen Mesh

Payment & Shipping Terms

Minimum Order Quantity: 10 Square Meter

Price: negotiable

Packaging Details: On Wooden or Iron Pallet

Delivery Time: Within7-15days

Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability: 10000SM/Week

Get Best Price
Product Details
Highlight:

double gravel screen mesh

,

plain weave gravel screen mesh

,

annealing gravel screen mesh

Mainly Material:
High Carbon Steel Wire
Tensile Stregth:
1600-1800Mpa
Weave Type:
Plain Weave
Aperture:
1mm-152.4mm
Wire Diameter:
0.5-19.04mm
Wire Dia Tolerance:
<3%
Aperture Tolerance:
<3%
Processed Wire:
Annealing Process
Surface Treat:
Rust Protection
Feature:
Wear Resistance
Screen Mesh Width:
500mm-2500mm
Products Name:
Screen Mesh
Advantage:
Lower Cost,Higher Screening Efficiency And Easy To Install And Replace
Mainly Material:
High Carbon Steel Wire
Tensile Stregth:
1600-1800Mpa
Weave Type:
Plain Weave
Aperture:
1mm-152.4mm
Wire Diameter:
0.5-19.04mm
Wire Dia Tolerance:
<3%
Aperture Tolerance:
<3%
Processed Wire:
Annealing Process
Surface Treat:
Rust Protection
Feature:
Wear Resistance
Screen Mesh Width:
500mm-2500mm
Products Name:
Screen Mesh
Advantage:
Lower Cost,Higher Screening Efficiency And Easy To Install And Replace
Product Description


Mainly Material:highly abrasion-resistant spring steel wire or stainless spring steel wire.



1.Carbon Steel Wire Parameter:



No Grade Chemical Composition
C Si Mn
1 45 0.42-0.50 0.17-0.37 0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60



2.Stainless Steel Wire Paramter:



No Grade Chemical Composition
C Ni Mn Cr
1 304 ≤0.08 8.0-11.0 ≤2 18.0-20.0
2 321 ≤0.08 9.0-12.0 ≤2 17.0-19.0
3 316 ≤0.08 10.0-14.0 ≤2 16.0-18.5
4 2205 ≤0.03 4.5-6.5 2.5-3.5 21.0-24.0
5 2507 ≤0.03 6-8 ≤1.2 24-26






Opening size:


1 - 152.4 mm


Wire diameter:


0.5 - 19.05mm
Hole type: square, rectangular and long slot.


Supplied dimensions:


as required by customer.Rolls or Cut to Flat Plate


Aperture, Wire Diameter and Diagonal Error or Tolerance:


1. Aperture error: ≤3%,which is better than International Standards;


2. Wire diameter error: ±3%;


3. Diagonal error: ≤9mm every 2m;


It ensures every piece of wire cloth we made can be etching with remarkable sign of Mam Ba: square, flatness and right tightness.



The Woven Wire Screens are manufactured with an industry-leading stringent wire opening of ±3% and extremely tight crimps and weave for a longer wear life and the elimination of premature failure.


Weave Types:




Edge Types:



Hook and Edge:

1.Our hook making adopts the electromagnetic coil heating process. All hooks are one-time forming. There are different type of hooks and edges available.

2.We can provide wire cloth with or without hooks and wire cloth rolls in different size according to client’s requests.





Mam Ba Wire Mesh MFG Company’s strict quality control system starts at the very beginning:



selecting the right material. There are more than 500 steel works in China.



We only chose 2 of them as our material suppliers.



Except their stable quality (and good qualification we need),



they must be able to customize steel wire rods in accordance with correct composition ratios we provide Most importantly,



they must be able to provide the test report of SGS, the international third party test organization for every batch of steel wire rods they produced.

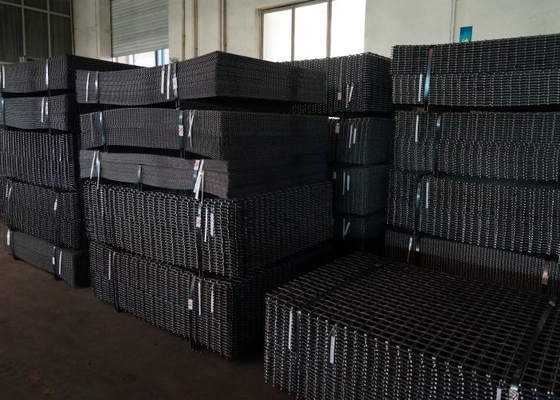

Mam Ba Wear Resistance Metal Wire Mesh Screensused Cases:


Double 1600mpa Plain Weave 19.04mm Gravel Screen Mesh In Quarry Industrial 0Double 1600mpa Plain Weave 19.04mm Gravel Screen Mesh In Quarry Industrial 1




Mam Ba 65Mn High Carbon Steel Wire Quarry Screen Mesh for Aggregate and Quarry
