|Name:||Polyurethane Flip Flow Screen Media||Material:||PU|
|Color:||Red Or As Your Requirement||Hardness:||80-90ShA|
|Apeture Type:||Slot||Application:||Qarry, Coal,Mining Industrial|
|Feature:||Higher Wear Resistance||Operating Temperature:||Below 80ºC|

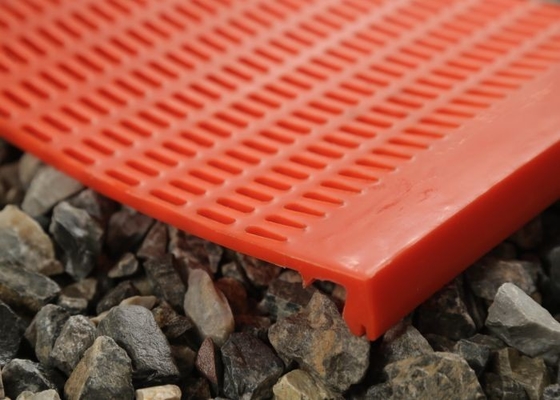

Higher Wear Resistance RedStar Polyurethane Flip Flow Screen Media for Mining
Polyurethane Flip Flow Screen: square hole, long hole.
RedStar has more than 10 different types of Polyurethane Flip Flow Screen for customers to choose,
RedStar can also be customized to customer requirements of other sizes of Polyurethane Flip Flow
Polyurethane Flip Flow Screen Normal Specification
|Aperture Sizes||3×13mm - 50×50mm|
1, flip flow screens using the best quality raw materials production, product-specific high wear resistance. Long service life.
2, flip flow screen has excellent toughness, stronger than the average polyurethane mesh toughness.
3, Polyurethane Flip Flow Screen using a mold casting molding, a variety of holes can be processed.
4, Polyurethane Flip Flow Screen thickness is generally 4-8mm, lightweight, sieve machine load is small.
5, polyurethane relaxation screen in a short time to produce a considerable high frequency of expansion and contraction, and to achieve the purpose of screening materials. In such a high frequency of movement, the material is difficult to pile up the phenomenon.
6, Polyurethane Flip Flow Screen hole rate is extremely high, the processing capacity per unit area, high screening efficiency.
Mam Ba High Performance Polyurethane Flip Flow Screen Media for Mining
Polyurethane Flip Flow Screen is mainly used for screening hard-to-screen materials, including sticky, fine and wet materials (such as highly sticky coal of high moisture content, and classification of medium & fine coke). The main advantages including high screening efficiency, long wearing life, wide application of particle size range, no pegging and no blinding. The flip flow screens are with high tensile strength, excellent wear performance, so as to achieve the designed service life of more than 4000 hours.
Polyurethane Flip Flow Screen Mode of Operation
The base frame is agitated by means of shaft and unbalance motor drive. The vibration is passed to the dynamic frame via thrust rubbers.Fixed screening mats between the dynamic and the base frame are clamped and ﬂ exed by the two vibrating frames. The modular and compact construction of the Mam Ba Flip-Flow-Screen ensures a wide acceptance for many different applications. The easy assembly respectively changing of the screening mats, the extension to a multi-deck version and the dynamic stroke adaptation are further features. The vibrating cover can be opened without tools. This ensures a rapid and easy accessibility of the screening mats. The relative movement of both screening frames creates a “trampoline effect” for the screening mats. The advantages of this effect are:
1. High acceleration up to 50g in the screening mats
2. Loosening-up of the product
Polyurethane Flip Flow Screen Benefits
Non blinding screening mats – less contamination Compact and modular construction Single- or multi-deck execution Dynamic wear resistant screening mats allow an efﬁ cient material ﬂow – screwless mounted (fast changeover). The high acceleration on the screening mats ensures a self-cleaning effect. Inﬁnite adjustment of the vibrating parameters to match changing product characteristics / qualities Low operating and maintenance costs
Polyurethane Vibrating Screen is widely used for the classification of bulk material, such as coal, minerals, coke, beans, etc. So it can be used in the agriculture, chemical industry, minerals, quarry and smelting industries.
Polyurethane vibrating screen can sort the wet materials, it can be used in the water conservancy and hydropower and dewatering industries.
Efficient screening of difficult, sticky or wet materials with separation cuts of 0.2 to approx. 50 mm.
