Wear Resistance Woven Screen Mesh Cursher And Screening Parts Sturdy Construction

Product Details

Place of Origin: China

Brand Name: Mam Ba

Certification: ISO9001,SGS

Model Number: Woven Wire Screens

Payment & Shipping Terms

Minimum Order Quantity: 10 Square Meter

Price: negotiable

Packaging Details: On Wooden or Iron Pallet

Delivery Time: Within7-15days

Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability: 10000SM/Week

Get Best Price
Product Details
High Light:

mining screen mesh

,

gravel screen mesh

Mainly Material:
65Mn High Crabon Steel Wire
Tensile Stregth:
1600-1800Mpa
Weave Type:
Plain Weave
Aperture:
1mm-152.4mm
Wire Dia Tolerance:
<3%
Aperture Tolerance:
<3%
Products Name:
Spring Steel Woven Wire Screen Media
Advantage:
Lower Cost,Higher Screening Efficiency And Easy To Install And Replace
Mainly Material:
65Mn High Crabon Steel Wire
Tensile Stregth:
1600-1800Mpa
Weave Type:
Plain Weave
Aperture:
1mm-152.4mm
Wire Dia Tolerance:
<3%
Aperture Tolerance:
<3%
Products Name:
Spring Steel Woven Wire Screen Media
Advantage:
Lower Cost,Higher Screening Efficiency And Easy To Install And Replace
Product Description

Spring Steel Woven Wire Screen Media:



The Woven Wire Screens are manufactured with an industry-leading stringent wire opening of ±3% and extremely tight crimps and weave for a longer wear life and the elimination of premature failure.



Material:
Mainly Material:highly abrasion-resistant spring steel wire or stainless spring steel wire.



Carbon Steel Wire Parameter:



No Grade Chemical Composition
C Si Mn
1 45 0.42-0.50 0.17-0.37 0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60



Stainless Steel Wire Paramter:

No Grade Chemical Composition
C Ni Mn Cr
1 304 ≤0.08 8.0-11.0 ≤2 18.0-20.0
2 321 ≤0.08 9.0-12.0 ≤2 17.0-19.0
3 316 ≤0.08 10.0-14.0 ≤2 16.0-18.5
4 2205 ≤0.03 4.5-6.5 2.5-3.5 21.0-24.0
5 2507 ≤0.03 6-8 ≤1.2 24-26



Weave Types:







Edge Types:

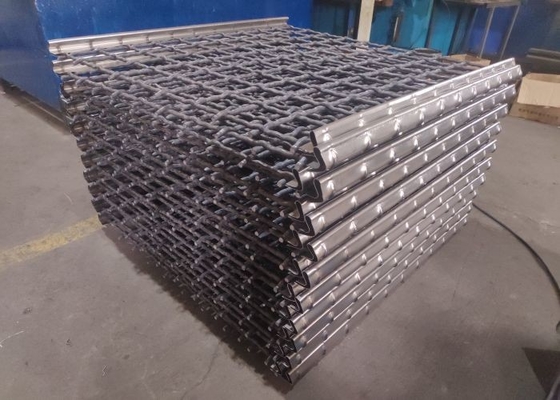

Hook and Edge



1.Our hook making adopts the electromagnetic coil heating process. All hooks are one-time forming. There are different type of hooks and edges available.



2.We can provide wire cloth with or without hooks and wire cloth rolls in different size according to client’s requests.



Spring Steel Woven Wire Screen Media Advantage:


1. Easy to Install



2. Lower Cost



3. Higher Opening Aera



4. Higher screening accuracy and Efficiency


5. Require less maintenance


6. Sturdy construction



Opening size:


1 - 152.4 mm


Wire diameter:


0.5 - 19.05mm



Hole type: square, rectangular and long slot.


Supplied dimensions:


as required by customer.Rolls or Cut to Flat Plate



Aperture, Wire Diameter and Diagonal Error or Tolerance:



1. Aperture error: ≤3%,which is better than International Standards;



2. Wire diameter error: ±3%;



3. Diagonal error: ≤9mm every 2m;



It ensures every piece of wire cloth we made can be etching with remarkable sign of Mam Ba: square, flatness and right tightness.





Installation instructions:


the screen is installed with using of tensioning metallic bars into a separator over different types of hook strips, further with using of side bars and wedges, possibly is fastened into a frame.



Mam Ba Wire Mesh MFG CompanySpring Steel Woven Wire Screen Media :



Mam Ba Wire Mesh MFG Company has a set of strict procedures to control the quality from materials to final products shipping. Our woven wire cloth has been widely accepted by clients from North America, Australia, Europe and Middle East for its high durability, precision and impact resistance. 90% of our products are used in international markets because they can be perfectly matched with various kinds of vibrating screens including international brands, such as Wirtgen, Atlas Copco, Sandvik, Mesto,Terex and other.




Our Spring Steel Woven Wire Screen Media used Cases:





Wear Resistance Woven Screen Mesh Cursher And Screening Parts Sturdy Construction 0Wear Resistance Woven Screen Mesh Cursher And Screening Parts Sturdy Construction 1Wear Resistance Woven Screen Mesh Cursher And Screening Parts Sturdy Construction 2
