Rust Proof Quarry Mesh Max Length 30 Meter For Construction

I'm Online Chat Now

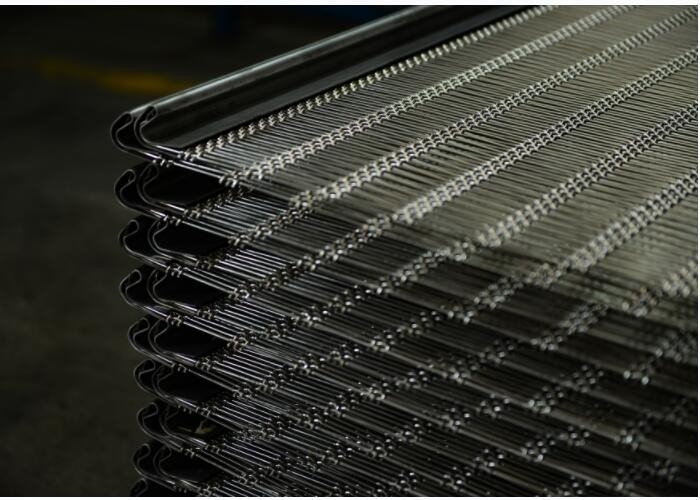

Rust Proof Quarry Mesh Max Length 30 Meter For Construction

Rust Proof Quarry Mesh Max Length 30 Meter For Construction
Rust Proof Quarry Mesh Max Length 30 Meter For Construction Rust Proof Quarry Mesh Max Length 30 Meter For Construction

Large Image :  Rust Proof Quarry Mesh Max Length 30 Meter For Construction

Product Details:
Place of Origin: China
Brand Name: Mamba Screen
Certification: ISO9001,SGS
Model Number: Woven Wire Screen Mesh
Payment & Shipping Terms:
Minimum Order Quantity: 15 Square Meter
Price: 5000-10000USD/Ton
Packaging Details: Put into Wooden Carton or on Iron Pallet
Delivery Time: Within14-21days
Payment Terms: L/C, T/T, D/A, D/P, OA,Western Union, MoneyGram
Supply Ability: 100TN/DAYS
Detailed Product Description
Aperture Tolerance: <3% Aperture: 1-200mm
Open Area: 35--80% Material: High Carbon Steel Wire,Stainless Steel
Surface Treatment: Rust Proof Edge Treatment: Hooked Or No Hooked
Wire Diameter: 0.8mm-19.05 Processed Wire: Annealing Process
High Light:

rust proof quarry mesh


length 30 meter quarry mesh


construction quarry screen mesh

Product Description:

Woven wire screen is the most common type of screening media used in aggregate processing and mining applications due to its features of high open area, high weave precision and high cost-performance ratio. It is offered with the most precision mesh aperture within the global industry, with an aperture deviation of only ±3%. This is far superior to international standards of DIN47833 (Europe) and ASTM 2016-15 (North America).

There are four different weave styles to perfectly suit your filtration and separation applications and guarantee achieving high efficiency and sustained performance screening.

  • Plain weave: simplicity and high weave precision. This type of weave is used where the opening is relatively small.
  • Lock crimp weave: weft and warp wires pass each other and get locked together at the point of intersection. The crimping is done to lock the wires to prevent from abrasion caused by wire movements.
  • Flat top weave: this provides a smooth surface for easier material flow with a long abrasion resistance lifetime.
  • Intercrimp weave: extra crimps in warp and weft wires between the intersections are present. It offers larger aperture size with a stable wire diameter, stability, greater rigidity and a large open area.

The high quality materials of woven wire mesh can yield a higher profit for manufacturers, thus leading to high-precision screening and guaranteeing the percentage of material qualification.



Aggregate Screens

Aggregate screens are commonly used in the rock and quarry industry for crushing and filtering of rocks. Mamba’s wire mesh aggregate screens have various applications, such as screening and separating stones, coal, mining gravel, sand and other materials. Woven aggregate screen mesh is used for vibrating screen crushers, and is made by bending or welding hooks.

High open areas of aggregate screens allow them to operate at top capacity. Different weaving and hook types fit different aggregate screens and materials, which provides efficient installation. Mamba’s wire mesh aggregate screens are cost effective, and are known for their unbeatable satisfaction.



Customized Quarry Screen Mesh

Our Mamba Screen Quarry Screen Mesh is a heavy duty wire screen mesh made for high impact and abrasion resistance. It is perfect for any quarry or mining application. Our quarry screen mesh is available in a variety of models and sizes, including square, rectangle and slotted. It comes with wire diameters from 0.8mm to 19.05mm and hooked or no hooked edges. This quarry screen mesh also provides a high tensile strength of 1000-1800Mpa and an aperture tolerance of less than 3%.


Support and Services:

Quarry Screen Mesh Technical Support and Service

We provide technical support and service for Quarry Screen Mesh products. Our experienced professionals are available to answer any questions you may have and provide necessary assistance.

We provide both on-site and online technical support and service. Our on-site technicians can visit your site and provide solutions to any problems you may have. Our online support and service are available through our website, email, chat, and phone.

We also offer preventive maintenance services to help you keep your Quarry Screen Mesh in optimal condition. We can inspect and tune-up your screen mesh to ensure that it is working properly and efficiently.

If you have any questions or need assistance, please don’t hesitate to contact us.


Packing and Shipping:

Packaging and shipping for Quarry Screen Mesh is done with the utmost care. The mesh is secured on a pallet or skid for easy transportation. Each pallet is shrink-wrapped for extra protection. Heavy-duty cardboard or wooden boxes are used to help protect the mesh from damage during shipping. All shipments are tracked and insured.



Q1: What is Mamba Screen Woven Wire Screen Mesh?

A1: Mamba Screen Woven Wire Screen Mesh is a type of screen mesh made of woven wire, originating from China.

Q2: How is Mamba Screen Woven Wire Screen Mesh used?

A2: Mamba Screen Woven Wire Screen Mesh is typically used for filtering, sieving and quarrying.

Q3: What are the advantages of using Mamba Screen Woven Wire Screen Mesh?

A3: Mamba Screen Woven Wire Screen Mesh is durable, strong and offers a long service life.

Q4: What sizes are available for Mamba Screen Woven Wire Screen Mesh?

A4: Mamba Screen Woven Wire Screen Mesh is available in various sizes, which can be customized to meet specific requirements.

Q5: How is Mamba Screen Woven Wire Screen Mesh manufactured?

A5: Mamba Screen Woven Wire Screen Mesh is manufactured using high-strength wires that are woven together to form a mesh.
