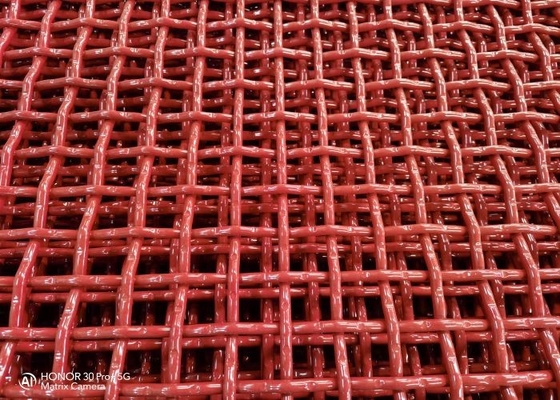

Spring Steel Wire Double Crimp Screen For Screening Equipment In Mineral Quarry

Product Details

Place of Origin: China

Brand Name: Mam Ba

Certification: ISO

Model Number: 001

Payment & Shipping Terms

Minimum Order Quantity: 10pcs each size; while less than 10pcs, cost will be a bit higher, still available.

Price: negotiable

Packaging Details: 10pcs per skid, packed in iron belt with Iron tube

Delivery Time: within 10days for one order

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 2 containers per week

Get Best Price
Product Details
Highlight:

mining screen mesh

,

gravel screen mesh

Material:
High Tensile Steel Wire
Wire Dia:
0.65-19.05mm
Aperture:
1.35-100mm
L & W:
At Customized
Package:
Iron Tube With Belt
Markets:
USA;Canada;Australia;Germany;Others
Material:
High Tensile Steel Wire
Wire Dia:
0.65-19.05mm
Aperture:
1.35-100mm
L & W:
At Customized
Package:
Iron Tube With Belt
Markets:
USA;Canada;Australia;Germany;Others
Product Description

Anping Mam Ba Wire Mesh MFG Company, which is founded in 1989, has been devoted into wire cloth and screen media production for 26 years. The company owns 18 patented products, all of them have been up to EU, GB and ASTM standards. The company has acquired certificates of ISO 14001 Environmental Management System, ISO 9001 Quality Management System and OHSAS 18001 Occupation Health Safety Management System.

Mam Ba Wire Mesh MFG Company has a set of strict procedures to control the quality from materials to final products shipping. Our woven wire cloth has been widely accepted by clients from North America, Australia, Europe and Middle East for its high durability, precision and impact resistance. 90% of our products are used in international markets because they can be perfectly matched with various kinds of vibrating screens including international brands. For all of mining, aggregate, asphalt mixing and road construction industries, every cent saved from high quality production, fast parts changes and a longer part wearlife will be eventually converted into hard profits and real cost reduction of companies. As the most important part of vibrating screens, a set of high-quality wire cloth with high accuracy, long wear life and high anti-impact is the foundation of production quality assurance in all industries above.



Mam Ba screen mesh is popular for its high quality. Mam Ba screen mesh could help customers lower the cost and enlarge the market.



Vibrating screen media mesh is mainly used on vibrating screen machines for screening and sizing all kinds of sand, gravel, coal, stone, rock and other materials in mineral, metallurgy, quarry and other industries.



By using the highest quality wires,Mam Ba is able to increase open area of screen mesh to get a longer service life.

Mam Ba can supply a wide range of crimping mould and offer customers the best crimp for the required specification and application.



To get a quotation ,you need to indicate those :

  1. WIRE DIA ,Aperture
  2. LENGTH & width
  3. Qty and all dimensions for rolls , or cut to size pieces , or HOOK edge
  4. Any other requirements not mentioned



Below are some specifications for reference:

Aperture Square weave Light Duty Wire dia kg/m2 OA% Medium Wire dia kg/m2 OA% Heavy Duty Wire dia kg/m2 OA%
2.00             1.37 7.1 35
3.15       2.00 9.9 37 2.50 14.1 31
4.00 2.00 8.50 44 2.50 12.2 38 3.05 16.8 32
5.0 2.00 7.80 51 2.50 16.6 44 3.05 14.7 38
5.6 2.50 9.80 48 3.05 13.7 41 4.00 21.2 34
6.35 2.50 8.89 51 3.05 12.6 46 4.00 19.6 38
6.8 2.50 9.00 51 3.05 10.0 44 4.00 19.7 37
7.1 2.50 8.80 55 3.05 11.9 48 4.00 18.3 41
8 2.50 10.80 54 4.00 16.9 44 5.00 24.4 38
9 3.05 9.80 55 4.00 15.6 48 5.00 22.7 44
10 3.05 9.10 58 4.00 14.5 51 5.00 21.2 44
11.2 3.05 10.40 54 5.00 19.6 48 5.60 28.6 44
12.5 4.00 12.30 57 5.00 18.1 51 5.60 20.0 47
14 4.00 16.70 54 5.00 20.0 51 6.80 24.6 48
16 5.00 15.10 58 5.60 19.5 56 6.80 22.6 51
18 5.00 14.50 58 6.80 20.7 55 7.10 25.0 51
20 5.60 14.00 61 6.80 19.2 58 7.10 24.0 54
22 5.60 17.60 61 7.10 21.5 57 8.00 26.7 54
25 6.80 16.10 64 7.10 20.1 60 8.00 24.6 57
28 7.00 14.70 63 8.00 19.0 61 9.00 27.8 57
32 8.00 20.60 64 9.00 26.0 60 10.00 30.4 58
38 8.00 18.70 67 9.00 28.1 64 10.00 27.9 61
40 9.00 21.00 67 10.00 25.4 64 11.20 31.1 61
45 9.00 19.50 69 10.00 23.4 67 11.20 28.4 64
50 10.00 23.20 69 11.20 26.0 67 12.50 31.8 64
56 10.00 19.20 72 11.20 28.7 69 12.50 29.0 67
63 10.00 17.40 75 11.20 24.5 72 12.50 25.1 70
76.2 10.00 14.80 78 11.20 16.0 75 12.50 20.0 73
80 10.00 16.00 79 11.20 17.5 72 12.50 21.5 75
90 10.00 14.00 81 11.20 15.7 79 12.70 19.4 77
100 10.00 10.00 82 11.20 14.3 81 12.70 17.6 79
