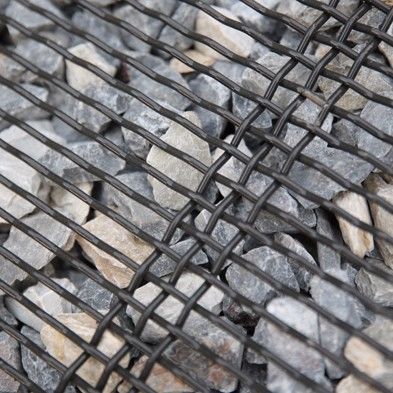

Durable Tensile 65Mn Spring Steel Woven Wire Screen Media for Aggregate and Mining

I'm Online Chat Now

Durable Tensile 65Mn Spring Steel Woven Wire Screen Media for Aggregate and Mining

Durable Tensile 65Mn Spring Steel Woven Wire Screen Media for Aggregate and Mining
Durable Tensile 65Mn Spring Steel Woven Wire Screen Media for Aggregate and Mining

Large Image :  Durable Tensile 65Mn Spring Steel Woven Wire Screen Media for Aggregate and Mining

Product Details:
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO9001,SGS
Model Number: Woven Wire Screens
Payment & Shipping Terms:
Minimum Order Quantity: 10 Square Meter
Price: negotiable
Packaging Details: On Wooden or Iron Pallet
Delivery Time: Within7-15days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000SM/Week
Detailed Product Description
Mainly Material: 65Mn High Crabon Steel Wire Tensile Stregth: 1600-1800Mpa
Weave Type: Plain Weave Aperture: 1mm-152.4mm
Wire Diameter: 0.5-19.04mm Wire Dia Tolerance: <3%
Aperture Tolerance: <3% Processed Wire: Annealing Process
Surface Treat: Rust Protection Feature: Wear Resistance
Screen Mesh Width: 500mm-2500mm
High Light:

mining screen mesh

,

sand screen mesh

Mam Ba Wire Mesh MFG Company:



Today there is a variety of weave types available in our company. They include Double Crimp Screen, Single Intermediate Crimp Screen, Double Intermediate Crimp Screen, Lock Crimp Screen, Slot Screen, Rectangular Screen, Intertwined Wire Bands and Flat-top Screen, etc.



Recently, our company developed two new products: Polyurethane Screen and Anti Clogging Screen.

Polyurethane screens have proven to be generally economical due to the long wear life and low maintenance requirements. Its wear life is enhanced by the polymers flexibility, which returns some of the impact energy imparted by the vibrating media. Noise is greatly reduced. Correctly applied Polyurethane screens can reduce or even eliminate plugging, pegging and blinding problems due to the tapered openings and resiliency of the material. Corrosion and rust are eliminated.

Anti-clogging wire screen, also known as Self Cleaning Screen, can drastically avoid the clogging and plugging of materials during screening. This type of screen is made of high tensile or stainless steel wires, with polyurethane bands that link crimped wires together.

Mam Ba Wire Mesh MFG Company’s polyurethane screen and anti-clogging screen have adopted the most advanced technology in the world. All equipment is imported from Europe.



The Woven Wire Screens are manufactured with an industry-leading stringent wire opening of ±3% and extremely tight crimps and weave for a longer wear life and the elimination of premature failure.



Weave Types



Durable Tensile 65Mn Spring Steel Woven Wire Screen Media for Aggregate and Mining 0

Material:
Mainly Material:highly abrasion-resistant spring steel wire or stainless spring steel wire.



Carbon Steel Wire Parameter:



No Grade Chemical Composition
C Si Mn
1 45 0.42-0.50 0.17-0.37 0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60



Stainless Steel Wire Paramter:

No Grade Chemical Composition
C Ni Mn Cr
1 304 ≤0.08 8.0-11.0 ≤2 18.0-20.0
2 321 ≤0.08 9.0-12.0 ≤2 17.0-19.0
3 316 ≤0.08 10.0-14.0 ≤2 16.0-18.5
4 2205 ≤0.03 4.5-6.5 2.5-3.5 21.0-24.0
5 2507 ≤0.03 6-8 ≤1.2 24-26


Opening size:


1 - 152.4 mm


Wire diameter:


0.5 - 19.05mm



Hole type: square, rectangular and long slot.


Supplied dimensions:


as required by customer.Rolls or Cut to Flat Plate



Aperture, Wire Diameter and Diagonal Error or Tolerance:



1.Aperture error: ≤3%,which is better than International Standards;



2.Wire diameter error: ±3%;



3.Diagonal error: ≤9mm every 2m;



It ensures every piece of wire cloth we made can be etching with remarkable sign of Mam Ba: square, flatness and right tightness.





Edge Types:



Our hook making adopts the electromagnetic coil heating process. All hooks are one-time forming. There are different type of hooks and edges available.

We can provide wire cloth with or without hooks and wire cloth rolls in different size according to client’s requests.







Hook and Edge



1.Our hook making adopts the electromagnetic coil heating process. All hooks are one-time forming. There are different type of hooks and edges available.



2.We can provide wire cloth with or without hooks and wire cloth rolls in different size according to client’s requests.



Features:


Easy to Install

Lower Cost

Higher screening accuracy
Require less maintenance
Sturdy construction



Installation instructions:


the screen is installed with using of tensioning metallic bars into a separator over different types of hook strips, further with using of side bars and wedges, possibly is fastened into a frame.






Application:
applies to vibrating screens for primary sieving of mine and aggregates, as well as asphalt mixer plant in road building.



Durable Tensile 65Mn Spring Steel Woven Wire Screen Media for Aggregate and Mining 1Durable Tensile 65Mn Spring Steel Woven Wire Screen Media for Aggregate and Mining 2
