Heat Resistant High Tensile 65Mn Steel Woven Wire Screen with Corrosion Resistance for Vibrating Screen Mesh

Name: Heat Resistant High Tensile 65Mn Steel Woven Wire Screen with Corrosion Resistance for Vibrating Screen Mesh
Brand: Anping MamBa Screen Mesh MFG.,Co.Ltd
SKU: Mine Sieving Mesh
Price: 13.30 USD
Availability: InStock

Product Details

Place of Origin: HeBei,China

Brand Name: MamBa

Certification: CE

Model Number: Mine Sieving Mesh

Payment & Shipping Terms

Minimum Order Quantity: 1500 Square Meter/Square Meters per Week

Price: $7.30 20 - 199 square meters

Packaging Details: 1.compacted before packaging. 2. Plastic packaging outside and on the pallet. or according to the customers' requirment

Delivery Time: 8-14 days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 5000 Square Meter/Square Meters per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                shaker mesh vibrating screen, heat resistant mesh vibrating screen, heat resistant vibrating screen mesh


Product Name:	High Tensile 65mn Mn Steel Wire Woven Mesh Shaker Gravel Mining Vibrating Screen Price For Sale	Weave Style:	Plain Weave,Dutch Weave,Plain/Twill/Dutch Weave
Material:	Stainless Steel Wire,65Mn	Technique:	Woven,Welded Mesh
Type:	Weave Wire Mesh,Crimped Wire Mesh,stainless Steel Screen Mesh	Width:	0.5-2m,0.8-2m And Special Width As Your Requested
Hole Shape:	Square Hole	Feature:	Acis Resist,Corrosion Resistance,heat Resistant
Roll Length:	30-50m Wire Mesh

Product Name:	High Tensile 65mn Mn Steel Wire Woven Mesh Shaker Gravel Mining Vibrating Screen Price For Sale
Weave Style:	Plain Weave,Dutch Weave,Plain/Twill/Dutch Weave
Material:	Stainless Steel Wire,65Mn
Technique:	Woven,Welded Mesh
Type:	Weave Wire Mesh,Crimped Wire Mesh,stainless Steel Screen Mesh
Width:	0.5-2m,0.8-2m And Special Width As Your Requested
Hole Shape:	Square Hole
Feature:	Acis Resist,Corrosion Resistance,heat Resistant
Roll Length:	30-50m Wire Mesh

Product Description

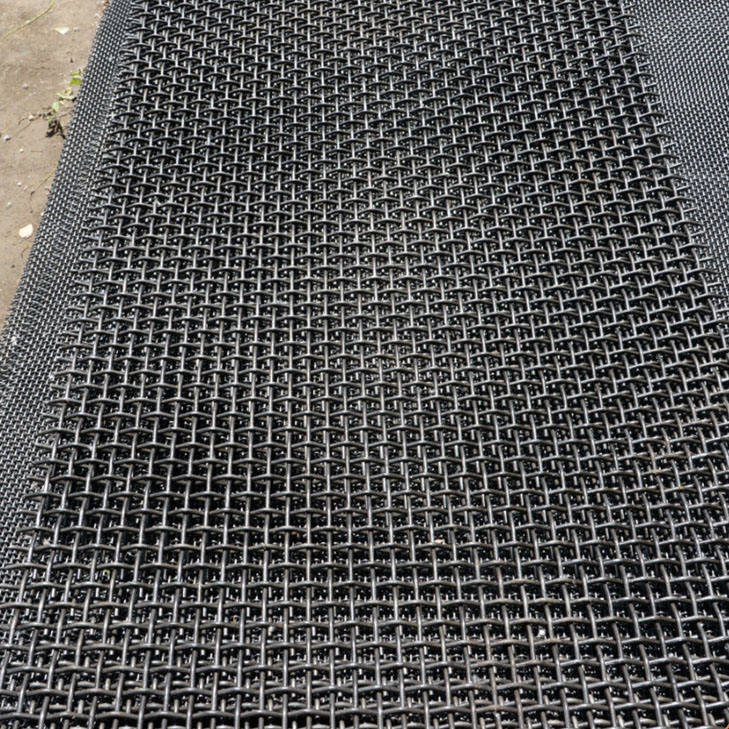

Shaker Gravel Mining Mesh Vibrating Screen Heat Resistant

High tensile strength wire mesh manufactured from 45# steel and 65Mn steel, specifically designed for mining sand screening applications. This versatile vibrating screen sieve mesh is engineered for various industrial processes including screening, sizing, grading, shifting, separating, scalping, and washing operations.

Custom design options available with integrated plungers and vibrating rods for enhanced protection against tearing and extended service life.

Specification List of Crimped Wire Mesh

SWG Wire Gauge	Wire Diameter (mm)	Mesh/Inch	Aperture (mm)	Weight (kg/m²)
14	2.0	21	1	4.2
8	4.05	18	1	15
25	0.50	20	0.61	2.6
23	0.61	18	0.8	3.4
24	0.55	16	0.1	2.5
24	0.55	14	0.12	4
22	0.71	12	0.14	2.94
19	1	2.3	0.18	1.45
6	4.8	1.2	2	20
6	4.8	1	2	20
6	4.8	0.7	3	14
14	2.0	5.08	0.3	12
14	2.0	2.1	1	2.5
14	2.0	3.6	1.5	1.9

Weaving Types

Double Crimp Wire Mesh

Manufactured with pre-crimped wires to obtain precise screening apertures and achieve maximum rigidity. This weaving type performs exceptionally well in conditions where materials are not sticky or have minimal tendency to peg or wedge.

Flat Top Wire Mesh

Features wires crimped on one side only to create a flat surface, enhancing durability and allowing for larger apertures with high precision. This design is typically used for coarse mineral screening applications.

Lock Crimp Wire Mesh

Engineered with pre-crimped wires to maintain precise screening apertures while providing maximum structural rigidity. Ideal for applications involving non-sticky materials or those with minimal pegging or wedging tendencies.

Applications

Vibrating screens and stone crushers for sieving mine materials and aggregates
Asphalt mixer plants in road building and construction
Filtration and protection systems in petroleum, chemical, and marine industries
Operations in acid and alkali environments
Glass reinforcement applications
Various baskets for household and industrial use
Art crafts and decorative applications
Kitchen and refrigerator baskets
