Product Details:
Payment & Shipping Terms:
|
| Application: | Screening And Filtering | Certificate: | ISO9001 |
|---|---|---|---|
| Color: | Silver | Hole Shape: | Square |
| Length: | 30m | MOQ: | 1 Piece |
| Material: | Stainless Steel | Mesh Count: | 2-635 Mesh |
| Packing: | Rolls Or Cartons | Surface Treatment: | Polishing |
| Weave Type: | Plain Weave | Width: | 0.5-2.5m |
| Wire Diameter: | 0.02-6mm | ||
| High Light: | 45Mn Vibrating Screen Mesh,Hooked Crimped Woven Vibrating Screen Mesh,65 Mn Vibrating Screen Wire Mesh |
||

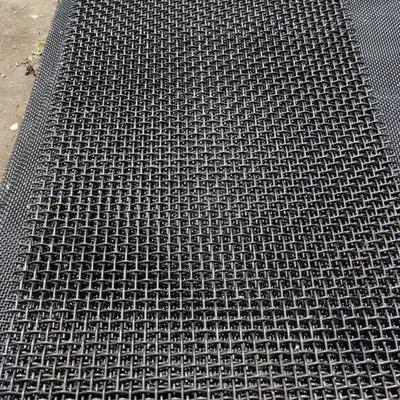

Mamba Rolls and Flat Plates made from high carbon steel wire cloths screen mesh
Woven wire screen stands out as the predominant choice for screening media in aggregate processing and mining applications, thanks to its notable features such as high open area, precise weave, and an impressive cost-performance ratio.
The remarkable aperture tolerance of only ±3% sets MamBa's woven wire screen apart from industry standards, both domestically and globally. This level of precision not only ensures high-precision screening but also guarantees the material qualification percentage. The utilization of high-quality materials further enhances profitability for manufacturers.
Moreover, MamBa's commitment to excellence is evident in the square opening wire mesh, recognized as one of the most widely used screening media due to its exceptionally precise mesh apertures. MamBa's woven wire screen takes pride in offering the most precise mesh aperture globally, with an impressive aperture deviation of only ±3%, surpassing international standards like DIN47833 (Europe) and ASTM 2016-15 (North America).
With the ability to provide various woven wire weave styles, MamBa ensures tailored options to perfectly match your filtration and separation applications.
| Woven Wire Screen Mesh | |
| Wire Diameter | 0.50mm-19.05mm |
| Weaving Type | Double Crimp,Lock Crimp,Flat Top,Inter Crimp |
| Aperture | 1.00mm-152.00mm |
| Opening Type | Square or Slot |
| Max width | 2500.00mm |
| Products Type | Flat Plates,Rolls, Folding Hook |
| Material | High Carbon Steel Wire or Stainless Steel Wire. |
Weave Types:
Material:
highly abrasion-resistant spring steel wire or stainless spring steel wire.
| No | Grade | Chemical Composition | ||
| C | Si | Mn | ||
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 | ||
| 3 | 55 | 0.52-0.60 | ||
| 4 | 60 | 0.57-0.65 | ||
| 5 | 65 | 0.62-0.70 | ||
| 6 | 70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
| No | Grade | Chemical Composition | |||
| C | Ni | Mn | Cr | ||
| 1 | 304 | ≤0.08 | 8.0-11.0 | ≤2 | 18.0-20.0 |
| 2 | 321 | ≤0.08 | 9.0-12.0 | ≤2 | 17.0-19.0 |
| 3 | 316 | ≤0.08 | 10.0-14.0 | ≤2 | 16.0-18.5 |
| 4 | 2205 | ≤0.03 | 4.5-6.5 | 2.5-3.5 | 21.0-24.0 |
| 5 | 2507 | ≤0.03 | 6-8 | ≤1.2 | 24-26 |
Edge Types:
Features:
Easy to Install
Lower Cost
Higher screening accuracy
Require less maintenance
Sturdy construction
Installation instructions:
the screen is installed with using of tension metallic bars into a separator over different types of hook strips, further with using of side bars and wedges, possibly is fastened into a frame.
Application:
applies to vibrating screens for primary sieving of mine and aggregates, as well as asphalt mixer plant in road building.
