Home > products > Quarry Screen Mesh > Square Aperture Sizes Ranging 0.5 - 152.4mm Aggregate Screen Mesh for Construction

Square Aperture Sizes Ranging 0.5 - 152.4mm Aggregate Screen Mesh for Construction

Product Details

Place of Origin: China

Brand Name: Mam Ba

Certification: ISO9001,SGS

Model Number: Aggregate Screen Mesh

Payment & Shipping Terms

Minimum Order Quantity: 10 Square Meter

Price: 1-8USD/KG

Packaging Details: On Wooden or Iron Pallet or wooden Carton

Delivery Time: Within7-15days

Payment Terms: L/C, T/T, D/A, D/P, O/A,Western Union, MoneyGram

Supply Ability: 50-100TON/DAYS

Get Best Price
Product Details
Highlight:
Material:
High Crabon Steel Wire,304SS Wire
Tensile Stregth:
1200-1700Mpa
Weave Type:
Plain Weave,Lock Type,Flat Top
Aperture:
0.5mm-152.4mm
Wire Diameter:
0.3-19.04mm
Wire Dia Tolerance:
<3%
Aperture Tolerance:
<3%
Processed Wire:
Drawing And Heat Treatment
Surface Treat:
Rust Protection
Feature:
High Wear Resistance And Longer Working Life
Screen Mesh Width:
100mm-3000mm
Opening:
Square,Rectangular,Harp And Slot
Material:
High Crabon Steel Wire,304SS Wire
Tensile Stregth:
1200-1700Mpa
Weave Type:
Plain Weave,Lock Type,Flat Top
Aperture:
0.5mm-152.4mm
Wire Diameter:
0.3-19.04mm
Wire Dia Tolerance:
<3%
Aperture Tolerance:
<3%
Processed Wire:
Drawing And Heat Treatment
Surface Treat:
Rust Protection
Feature:
High Wear Resistance And Longer Working Life
Screen Mesh Width:
100mm-3000mm
Opening:
Square,Rectangular,Harp And Slot
Product Description

Mam Ba Wire Mesh MFG Company:



Mam Ba Woven Wire Screen Cloths are completely versatile to your needs. These screens can be made in a huge variety of wire sizes and weaving patterns. We’d be more than happy to recommend a configuration to suit your operations.



Not all screen cloths are made equal, and that’s where the Mam Ba difference comes in. Our Woven Wire Screens are made using state-of-the-art equipment by highly qualified experts. We provide quality screens you can rely on.



Mam ba Woven Wire Screen Cloths have been designed to withstand the most difficult screening applications. By choosing the right configuration for your operations, you’ll be able to reduce the frequency of pegging and blinding in your screens



Our Woven Wire Screen Cloths are available in the following apertures:

  1. long slot
  2. double shute
  3. triple shute
  4. poly-ripple (Square and split)
  5. piano wire/harp screens
  6. TRIA harp
  7. square harp
  8. flat top.

Woven Wire Screen Mesh Material:


highly abrasion-resistant spring steel wire or stainless spring steel wire.

No Grade Chemical Composition
C Si Mn
1 45 0.42-0.50 0.17-0.37 0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60





No Grade Chemical Composition
C Ni Mn Cr
1 304 ≤0.08 8.0-11.0 ≤2 18.0-20.0
2 321 ≤0.08 9.0-12.0 ≤2 17.0-19.0
3 316 ≤0.08 10.0-14.0 ≤2 16.0-18.5
4 2205 ≤0.03 4.5-6.5 2.5-3.5 21.0-24.0
5 2507 ≤0.03 6-8 ≤1.2 24-26





Opening size:


1 - 152.4 mm


Wire diameter:


0.5 - 19.05mm



Hole type: square, rectangular and long slot.


Supplied dimensions:


as required by customer.Rolls or Cut to Flat Plate



Aperture, Wire Diameter and Diagonal Error or Tolerance:



1. Aperture error: ≤3%,which is better than International Standards;



2. Wire diameter error: ±3%;



3. Diagonal error: ≤9mm every 2m;



It ensures every piece of wire cloth we made can be etching with remarkable sign of Mam Ba: square, flatness and right tightness.







Benefits include:

  • Reduced component costs because of extended life
  • Reduced labor costs because of fewer replacements and repairs
  • Quick and simple installation
  • Less caking with mixer, discharge hopper and skip
  • Easy cleaning



Application:


Woven Wire Screen applies to vibrating screens for primary sieving of mine and aggregates, as well as asphalt mixer plant in road building.





Rference Photos:

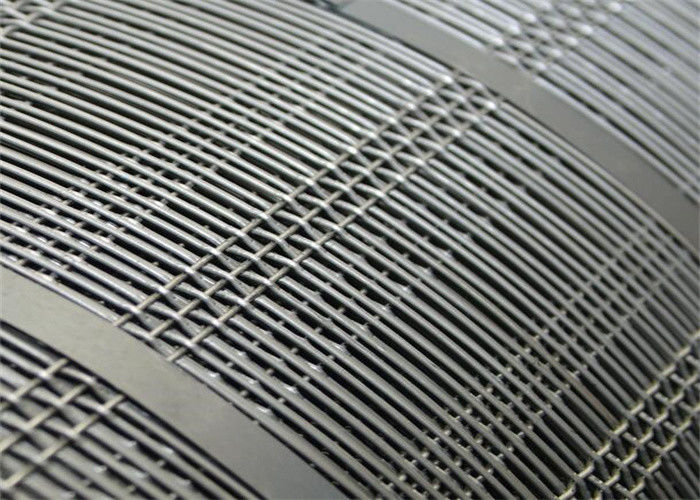

Square Aperture Sizes Ranging 0.5 - 152.4mm Aggregate Screen Mesh for Construction 0

Square Aperture Sizes Ranging 0.5 - 152.4mm Aggregate Screen Mesh for Construction 1



Square Aperture Sizes Ranging 0.5 - 152.4mm Aggregate Screen Mesh for Construction 2
