Mining Industry Self Cleaning Screen Mesh High Carbon Spring Steel

I'm Online Chat Now

Mining Industry Self Cleaning Screen Mesh High Carbon Spring Steel

Mining Industry Self Cleaning Screen Mesh High Carbon Spring Steel
Mining Industry Self Cleaning Screen Mesh High Carbon Spring Steel Mining Industry Self Cleaning Screen Mesh High Carbon Spring Steel

Large Image :  Mining Industry Self Cleaning Screen Mesh High Carbon Spring Steel

Product Details:
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO
Model Number: 003
Payment & Shipping Terms:
Minimum Order Quantity: Any qty is available, just cost is different. Generally, 10pcs each size.
Price: negotiable
Packaging Details: 10pcs per skid, packed in iron belt with Iron tube
Delivery Time: within 15days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 80pcs per day
Detailed Product Description
Material: High Carbon Spring Steel Wire: 1.2mm-9mm
Aperture: 1.5mm-45mm Typle: 3 Types
Standard: ASTM, ISO Market: USA; Canada; Australia; Germany; Etc
High Light:

stainless steel woven wire mesh screen

,

steel wire mesh screen

The Anti-blocking Screen is a method of weaving the wire mesh. The overlap points of warp are not prominent, and the surface is flat.

Anti-blocking Screen is easy to leak, wear-resistant and corrosion-resistant.



The screens are made of spring steel or stainless steel wires kept at the right distance by crimped steel wire .

Wire-ripple screens are mainly used at plant processing material at high temperature,like asphalt plant.

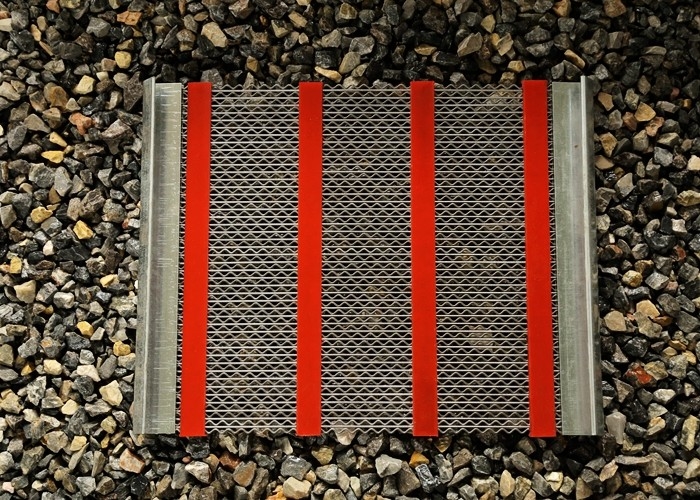

Mam Ba self-cleaning screen mesh



Material:high carbon spring wire, stainless steel wire

It can only be fixed with polyurethane stripe

Features: don’t require screening accuracy, as long as the large production, it is recommended to use this screen.



Advantages of the Anti-blocking Screen :

  • Increase the throughput of spec materials with a better open area
  • Replace the broken Anti-blocking screen much easier for its lightweight
  • Provide substantially more open area than traditional screen
  • Precise sizing and high efficiency
  • High wear resistance and a longer service time
  • Eliminate the blinding and pegging
  • Min the downtime and save cost
  • Reduce fines

There are three types according to weaving way:

Mining Industry Self Cleaning Screen Mesh High Carbon Spring Steel 0  Mining Industry Self Cleaning Screen Mesh High Carbon Spring Steel 1 Mining Industry Self Cleaning Screen Mesh High Carbon Spring Steel 2


                      A                                                       B                                                           C



C TYPE: same self cleaning action reinforced for heavier loads and bed depth.



Some specifications of B type are reference. Special sizes can be at customized.

Aperture mm Wire dia mm Opening area %
1.5 1.2-1.25 50
1.75 1.2-1.25 55
2 1.2-1.6 57-51
2.5 1.2-2 60-53
3 1.2-2 64-57
3.5 1.2-2 67-57
4 1.2-2 70-62
4.5 1.2-2 75-64
5 1.5-2.8 71-56
5.5 1.5-2.8 69-62
6 1.5-2.8 73-60
6.5 2-2.8 70-66
7 2-3.15 72-67
7.5 2-3.15 62-60
8 2-3.15 74-69
8.5 2-3.5 77-74
9 2-3.5 79-69
10 2-3.5 80-74
11 2-3.5 85-73
12 2-4 84-71
12.5 2.5-4 80-71
13 3-4 73-70
14 3-4 82-73
15 3.5-5 78-69
15.5 3.5-5 78-67
16 3.5-5 75-69
17 4-5 80-70
18 4-5 80-76
19 4-5 82-77
20 4-5 86-77
22 4-6 84-78
24 4-7 81-76
25 4-7 83-78
27 4-7 83-79
28 4-8 83-78
30 4-8 85-79
35 4-8 86-79
40 4-9 89-78
45 4-9 90-80

Mining Industry Self Cleaning Screen Mesh High Carbon Spring Steel 3Mining Industry Self Cleaning Screen Mesh High Carbon Spring Steel 4
Self-cleaning screens are available in a side-tensioned or end-tensioned configuration.
