Product Details
Place of Origin: HeBei,China
Brand Name: MamBa
Certification: CE
Model Number: Stainless Steel Screen Mesh
Payment & Shipping Terms
Minimum Order Quantity: 1500 Square Meter/Square Meters per Week
Price: 1 - 9 square meters $14.00
Packaging Details: Outside use wooden crates or plywood pallets.
Delivery Time: 30
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10 Roll/Rolls per Day
Weave Type: |
Plain,Plain/Twill,Plain/Twill/Dutch,Twill |
Mesh Count: |
18mesh-420mesh,80-400mesh |
Product Name: |
High Precision Stainless Steel Screen Mesh Wear And Corrosion Resistant |
Feature: |
Heat Resistance,long Life |
Mesh Count: |
10-400 |
Wire: |
1.2mm-9mm |
Surface Treatment: |
Galvanized, PVC Coated, Painted |
Application: |
Mining, Petroleum, Chemical, Construction |
Thickness: |
20-60mm |
Opening Type: |
D,H,S Type |
Aperture Type: |
Square, Rectange, Harp |
Wire Diameter: |
0.02-2mm |
Standard: |
ASTM, ISO |
Product Type: |
Flat Plate, Rolls, And Folding Hook. |
Mainly Material: |
Steel Wire Screen |
Aperture Tolerance: |
<3% |
Install Type: |
Edge Hook Or Bolt |
Weave Type: |
Plain,Plain/Twill,Plain/Twill/Dutch,Twill |
Mesh Count: |
18mesh-420mesh,80-400mesh |
Product Name: |
High Precision Stainless Steel Screen Mesh Wear And Corrosion Resistant |
Feature: |
Heat Resistance,long Life |
Mesh Count: |
10-400 |
Wire: |
1.2mm-9mm |
Surface Treatment: |
Galvanized, PVC Coated, Painted |
Application: |
Mining, Petroleum, Chemical, Construction |
Thickness: |
20-60mm |
Opening Type: |
D,H,S Type |
Aperture Type: |
Square, Rectange, Harp |
Wire Diameter: |
0.02-2mm |
Standard: |
ASTM, ISO |
Product Type: |
Flat Plate, Rolls, And Folding Hook. |
Mainly Material: |
Steel Wire Screen |
Aperture Tolerance: |
<3% |
Install Type: |
Edge Hook Or Bolt |

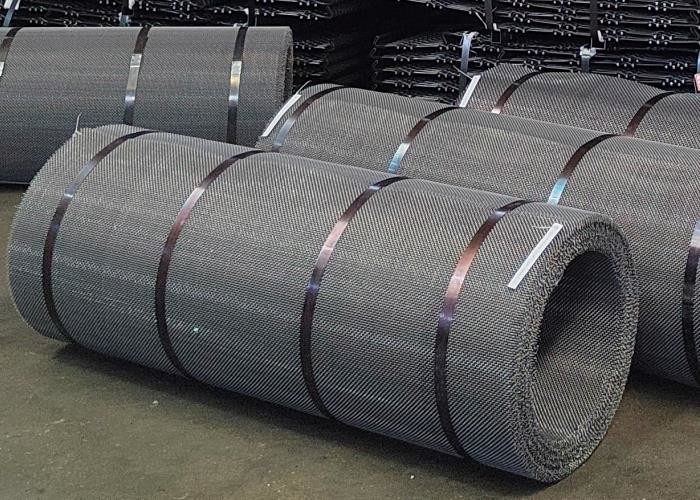

Stainless Steel Wire Mesh
Stainless steel wire mesh is made by stainless steel wire,Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance Corrosion.
Stainless steel woven wire mesh comes in different types, each designed to cater to specific needs and requirements.
Plain weave wire mesh, where the wires are woven in an over-and-under pattern, creating a square opening. This type provides excellent stability and a high level of filtration accuracy, making it ideal for fine particle separation, insect screens, and sieving applications.
Twill weave wire mesh, which is characterized by a diagonal pattern created by the interlacing of wires. Twill weave mesh offers enhanced strength and flexibility, making it suitable for heavy-duty applications such as conveyor belts, hydraulic filters, and architectural applications like facades and interior design.
Dutch weave wire mesh is a specialized type that features a tight weave with smaller wire openings. It is created by using thicker wires in the warp direction and finer wires in the weft direction. This design provides superior filtration capabilities and is commonly used in applications requiring precise filtration, such as oil and gas, pharmaceutical, and chemical industries.
Reverse Dutch weave wire mesh is another variant where the thicker wires are used in the weft direction and finer wires in the warp direction. This configuration results in a high flow rate and excellent mechanical stability, making it suitable for pressure filtration, vacuum filters, and liquid-solid separation.
Specification
Mainly Material:highly abrasion-resistant spring steel wire or stainless spring steel wire.
Carbon Steel Wire Parameter:
| No | Grade | Chemical Composition | ||
| C | Si | Mn | ||
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 | ||
| 3 | 55 | 0.52-0.60 | ||
| 4 | 60 | 0.57-0.65 | ||
| 5 | 65 | 0.62-0.70 | ||
| 6 | 70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
Stainless Steel Wire Paramter:
| No | Grade | Chemical Composition | |||
| C | Ni | Mn | Cr | ||
| 1 | 304 | ≤0.08 | 8.0-11.0 | ≤2 | 18.0-20.0 |
| 2 | 321 | ≤0.08 | 9.0-12.0 | ≤2 | 17.0-19.0 |
| 3 | 316 | ≤0.08 | 10.0-14.0 | ≤2 | 16.0-18.5 |
| 4 | 2205 | ≤0.03 | 4.5-6.5 | 2.5-3.5 | 21.0-24.0 |
| 5 | 2507 | ≤0.03 | 6-8 | ≤1.2 | 24-26 |
High Carbon Steel Alloys
High tensile crimping quality spring steel wire
The Tufflex™ Difference
The Strong and Durable Alternative Wire ... Tufflex wire is an alternative to high carbon and oil tempered wire. Finer grain structure and higher tensile strength offer greater consistency and flexibility throughout the screen,
offering both impact and abrasive resistance.
High Carbon
Abrasion-resistant, hard drawn, high carbon wire that can withstand repeated impact from heavy objects. Recommened for use when material to be screened is heavy and bulky, but moderately abrasive. High carbon wire has the least expensive initial cost.
Stainless Steel
Abrasion and corrosion-resistant, high tensile, hard drawn wire.
S304 Stainless
Standard alloy = 18% chrome / 8% nickel for excellent corrosion resistance.
S316 Stainless
Molybdenum is added to the basic 18% / 8% alloy for increased resistance to chemical corrosion.
S430 Stainless
Chromium alloy with no nickel for higher resistance to chemicals, atmospheric corrosion and oxidation. Handles temperatures up to 1,600 F.
Hook Types:
