Din 17223 Steel Flex Self Cleaning Screen Mesh Anti Clogging For Cement Applications

I'm Online Chat Now

Din 17223 Steel Flex Self Cleaning Screen Mesh Anti Clogging For Cement Applications

Din 17223 Steel Flex Self Cleaning Screen Mesh Anti Clogging For Cement Applications
Din 17223 Steel Flex Self Cleaning Screen Mesh Anti Clogging For Cement Applications Din 17223 Steel Flex Self Cleaning Screen Mesh Anti Clogging For Cement Applications

Large Image :  Din 17223 Steel Flex Self Cleaning Screen Mesh Anti Clogging For Cement Applications

Product Details:
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO9001,SGS
Model Number: Flex Anti-Clogging Screen
Payment & Shipping Terms:
Minimum Order Quantity: 15 Square Meter
Price: $3000-$8000/Ton
Packaging Details: On Wooden or Iron Pallet
Delivery Time: Within7-15days
Payment Terms: L/C, T/T, D/A, D/P,O/A Western Union, MoneyGram
Supply Ability: 10000SM/Week
Detailed Product Description
Mainly Material: SAE 1045,SAE1070, AISI 304 316 Stainless Steel Tensile Stregth: 1100-1700Mpa
Aperture: 1mm-152.4mm Wire Diameter: 1mm - 12.7mm
Wire Dia Tolerance: <3% Aperture Tolerance: <3%
Processed Wire: Annealing Process Surface Treat: Rust Protection
Feature: Self Cleaning, Anti Clogging Screen Mesh Width: 500mm-2500mm
Products Name: Flex Anti-Clogging Screen Advantage: Save Donwtime, Lower Operating Cost And Operating Time
Aperture Sizes: Type V And H ,D, S, PU Strip Sizes: 30mm Width, 3-6mm Thickness.
High Light:

cement applications self cleaning screen mesh

,

anti clogging self cleaning screen mesh

,

anti clogging self cleaning wire mesh

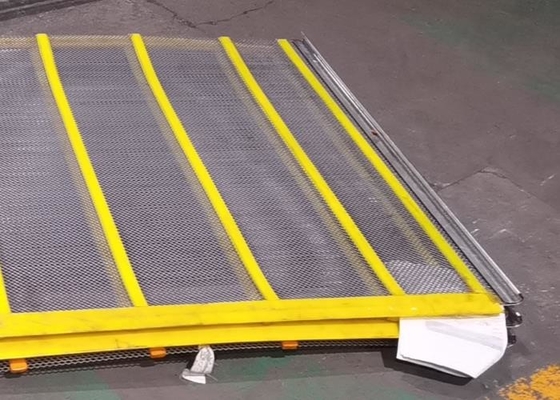

Mamba Flex Anti-Clogging Screen​


Mamba manufacture self cleaning mesh screens in high tensile steel mesh and stainless steel, supplied with or without polyurethane cross bands. Self cleaning screens non-blinding, high quality surface provides accurate screening and sizing, particularly where material is difficult. For example wet or sticky, self cleaning mesh also gives higher production rates while eliminating large unwanted flat material contaminating the finished product.

With high quality, non-blinding screening surface the Flexi-Harp is the perfect self cleaning mesh. The combination of different size wire used in manufacture means they vibrate at varying frequencies, producing a self-cleaning surface. Also, due to their flat surface (no knuckles) self cleaning screens use a smaller wire diameter than woven wire for certain applications. Therefore has a greater opening area percentage but lasts as long as normal square woven mesh.

Flex Anti-Clogging Screen Main Parameter:



Flex Anti-Clogging Screen
Wire Diameter 0.80mm-12.7mm
Aperture 1.00mm-101.6mm
Opening Type Shape D,V,S and H
Max width 2500.00mm
Products Type Flat Plates, Folding Hook,Modular
Material High Carbon Steel Wire or Stainless Steel Wire.


Flex Anti-Clogging Screen Opening Type:

Din 17223 Steel Flex Self Cleaning Screen Mesh Anti Clogging For Cement Applications 0


Flex Anti-Clogging Screen Aperture and Wire Diameter:



Aperture(mm) Wire Diameter(mm)
1.25 1.00
2.00 1.00 1.37
2.50 1.37 1.60 1.80
2.75 1.37 1.60 1.80 2.00
3.15 1.37 1.60 1.80 2.00
3.50 1.37 1.60 1.80 2.00
4.00 1.60 1.80 2.00 2.50
4.50 1.60 1.80 2.00 2.50
5.00 1.80 2.00 2.50 3.15
6.00 1.80 2.00 2.50 3.15
6.30 2.00 2.50 2.76 3.15
7.10 2.00 2.50 2.76 3.15
8.00 2.00 2.50 2.76 3.15
9.00 2.50 2.76 3.15 3.50
9.50 2.50 2.76 3.15 4.00
10.00 4.00
11.10 2.50 2.76 3.15 4.00
12.70 3.15 4.00 4.50
14.00 3.15 4.00 4.50 5.00
15.00 3.15 4.00 4.50 5.00
16.00 3.15 4.00 4.50 5.00
17.00 3.15 4.00 4.50 5.00
18.00 4.00 4.50 5.00
19.00 4.00 4.50 5.00
20.00 4.00 4.50 5.00
22.00 4.00 4.50 5.00
25.40 4.00 4.50 5.00
28.00 4.00 4.50 5.00
30.00 4.50 5.00 5.50 6.00
31.50 4.50 5.00 5.50 6.00
38.00 5.00 5.50 6.00 8.00
44.00 6.00 8.00 9.00
50.00 8.00 9.00 11.10
57.00 8.00 9.00 11.10 12.70
63.00 8.00 9.00 11.10 12.70
76.20 8.00 9.00 11.10 12.70





Mamba strive for constant growth and innovation in mining and aggregate screening industry, aiming at offering the best product and service to our customers’ needs and creating additional value for their business.






Flex Anti-Clogging Screen Features& Benefits:

1.High screening efficiency


2.High go through rate


3.Less blinding, blocking or pegging


4.Less maintenance cost


5.Reduce operating cost and downtime


6.Suits all types of mobile and static screens


Flex Anti-Clogging Screen Application:


What are the Flex Anti-Clogging Screens used for?



1.Sizing



2.Separating



3.Washing



4.Screening



What are the main application areas for Flex Anti-Clogging Screens?



1.Aggregate Processing



2.Mining Applications



3.Quarry Industrial



4.Wishing Application



5.Cement Manufacturing



6.Asphalt Plants



Din 17223 Steel Flex Self Cleaning Screen Mesh Anti Clogging For Cement Applications 1
Din 17223 Steel Flex Self Cleaning Screen Mesh Anti Clogging For Cement Applications 2
