Product Details:
Payment & Shipping Terms:
|
| Material: | SS 304,316 Or 65Mn High Carbon Steel Wire Or | Products Name: | Poly Self Cleaning Screen Mesh |
|---|---|---|---|
| PU Strip Color: | Red,Yellow Or Customization | Aperture Range: | 2mm-101.6mm |
| Wire Dimater: | 1mm-12.7mm | Aperture Shape: | Diamond,ZigZag, Harp, V Shape |
| Mainly Feature: | Anti Clogging And Self Cleaning | Application: | Aggregate Processing,Washing Application |
| Product Type: | Folding Hook, Flat Plates,Modular | Aperture Tolerate: | ＜3% |
| Wire Diameter Tolerate: | ＜3% | PU Strip Spacing: | Customizable |
| Sample Testing: | Free Samples | ||
| High Light: | quarry self cleaning wire mesh,diameter 0.8mm self cleaning wire mesh,diameter 12.7mm gravel screen mesh |
||
MAMBA Poly Self Cleaning Screen Mesh
MamBa Screen Mesh Company is committed to maintaining a leading position in global screen media market. To uphold the commitment we make, we work closely with our worldwide customers to make sure every screen is featured by robust structure, long wear life and precise opening size to help customers in increasing throughput while maintaining high screening accuracy.
Poly Self Cleaning Screen Mesh Material:
highly abrasion-resistant spring steel wire or stainless spring steel wire.
| No | Grade | Chemical Composition | ||
| C | Si | Mn | ||
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 | ||
| 3 | 55 | 0.52-0.60 | ||
| 4 | 60 | 0.57-0.65 | ||
| 5 | 65 | 0.62-0.70 | ||
| 6 | 70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
| No | Grade | Chemical Composition | |||
| C | Ni | Mn | Cr | ||
| 1 | 304 | ≤0.08 | 8.0-11.0 | ≤2 | 18.0-20.0 |
| 2 | 321 | ≤0.08 | 9.0-12.0 | ≤2 | 17.0-19.0 |
| 3 | 316 | ≤0.08 | 10.0-14.0 | ≤2 | 16.0-18.5 |
| 4 | 2205 | ≤0.03 | 4.5-6.5 | 2.5-3.5 | 21.0-24.0 |
| 5 | 2507 | ≤0.03 | 6-8 | ≤1.2 | 24-26 |
Apeture and Diameter
| Aperture(mm) | Wire Diameter(mm) | |||
| 1.25 | 1.00 | |||
| 2.00 | 1.00 | 1.37 | ||
| 2.50 | 1.37 | 1.60 | 1.80 | |
| 2.75 | 1.37 | 1.60 | 1.80 | 2.00 |
| 3.15 | 1.37 | 1.60 | 1.80 | 2.00 |
| 3.50 | 1.37 | 1.60 | 1.80 | 2.00 |
| 4.00 | 1.60 | 1.80 | 2.00 | 2.50 |
| 4.50 | 1.60 | 1.80 | 2.00 | 2.50 |
| 5.00 | 1.80 | 2.00 | 2.50 | 3.15 |
| 6.00 | 1.80 | 2.00 | 2.50 | 3.15 |
| 6.30 | 2.00 | 2.50 | 2.76 | 3.15 |
| 7.10 | 2.00 | 2.50 | 2.76 | 3.15 |
| 8.00 | 2.00 | 2.50 | 2.76 | 3.15 |
| 9.00 | 2.50 | 2.76 | 3.15 | 3.50 |
| 9.50 | 2.50 | 2.76 | 3.15 | 4.00 |
| 10.00 | 4.00 | |||
| 11.10 | 2.50 | 2.76 | 3.15 | 4.00 |
| 12.70 | 3.15 | 4.00 | 4.50 | |
| 14.00 | 3.15 | 4.00 | 4.50 | 5.00 |
| 15.00 | 3.15 | 4.00 | 4.50 | 5.00 |
| 16.00 | 3.15 | 4.00 | 4.50 | 5.00 |
| 17.00 | 3.15 | 4.00 | 4.50 | 5.00 |
| 18.00 | 4.00 | 4.50 | 5.00 | |
| 19.00 | 4.00 | 4.50 | 5.00 | |
| 20.00 | 4.00 | 4.50 | 5.00 | |
| 22.00 | 4.00 | 4.50 | 5.00 | |
| 25.40 | 4.00 | 4.50 | 5.00 | |
| 28.00 | 4.00 | 4.50 | 5.00 | |
| 30.00 | 4.50 | 5.00 | 5.50 | 6.00 |
| 31.50 | 4.50 | 5.00 | 5.50 | 6.00 |
| 38.00 | 5.00 | 5.50 | 6.00 | 8.00 |
| 44.00 | 6.00 | 8.00 | 9.00 | |
| 50.00 | 8.00 | 9.00 | 11.10 | |
| 57.00 | 8.00 | 9.00 | 11.10 | 12.70 |
| 63.00 | 8.00 | 9.00 | 11.10 | 12.70 |
| 76.20 | 8.00 | 9.00 | 11.10 | 12.70 |

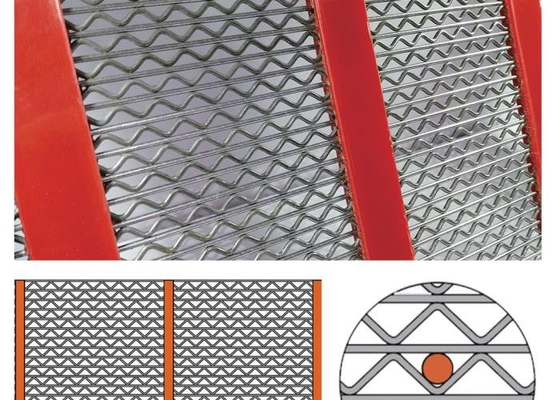

Poly Self Cleaning Screen Mesh Opening Shape
We manufacture and supply anti-clogging screen panels with different sizes, shapes, patterns and apertures
Poly Self Cleaning Screen Mesh Feature:
1.Safer,Easier and Stable operation
2.Lower wear compared to conventional steel woven wire mesh
3.High tensile strength
4.Various Aperture
5.Pass Heat Treatment High Carbon Steel Wire
6.AISI 304 316 Stainless Steel
7.Different hooks available
8.Cost Effective
Poly Self Cleaning Screen Mesh Benifits:
1.Anti-Clogging properties
2.Self-Cleaning properties
3.Larger screening area
4.Longer service life
5.High Efficiency
6.Highly resistant to abrasion, wear and tear
7.Resistant to corrosion
8.Shorter cleaning down-times
9.Wide range of applications
10.Various Opening Shape
Poly Self Cleaning Screen Mesh Application:
1.Aggregate Processing
2.Washing Applications
3.Cement Manufacturing
4.Asphalt Plants
5.Mining Application
