Product Details
Place of Origin: China
Brand Name: Mamba
Certification: ISO9001,SGS Test
Model Number: FPoly Vibe
Payment & Shipping Terms
Minimum Order Quantity: 15 Square Meter
Price: 5000-12000USD/Ton
Packaging Details: On Wooden Carton or Pallet
Delivery Time: Within14-21days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,O/A
Supply Ability: 8000 Square Meter/Week
Material: |
65Mn High Carbon Steel Wire Or SS 304 Or SS316 |
Products Name: |
Poly Vibe Crushing Screens |
PU Strip Color: |
Red,Yellow Or Customization |
Aperture Range: |
2mm-101.6mm |
Wire Dimater: |
1mm-12.7mm |
Aperture Shape: |
Diamond,ZigZag, Harp, V Shape |
Mainly Feature: |
Self Cleaning |
Application: |
Sizes, Mining Processing, Classification |
Product Type: |
Folding Hook, Flat Plates,Modular |
Aperture Tolerate: |
＜3% |
Wire Diameter Tolerate: |
＜3% |
PU Strip Spacing: |
Customizable |
Installation: |
With Hook,or Bolt, Or Pin And Sleeve |
Material: |
65Mn High Carbon Steel Wire Or SS 304 Or SS316 |
Products Name: |
Poly Vibe Crushing Screens |
PU Strip Color: |
Red,Yellow Or Customization |
Aperture Range: |
2mm-101.6mm |
Wire Dimater: |
1mm-12.7mm |
Aperture Shape: |
Diamond,ZigZag, Harp, V Shape |
Mainly Feature: |
Self Cleaning |
Application: |
Sizes, Mining Processing, Classification |
Product Type: |
Folding Hook, Flat Plates,Modular |
Aperture Tolerate: |
＜3% |
Wire Diameter Tolerate: |
＜3% |
PU Strip Spacing: |
Customizable |
Installation: |
With Hook,or Bolt, Or Pin And Sleeve |
Mamba Poly Vibe Crushing Screens
Mamba is founded in 1989, has been devoted into wire cloth and screen media production for 33 years. The company owns 18 patented products, all of them have been up to EU, GB and ASTM standards. The company has acquired certificates of ISO 14001 Environmental Management System, ISO 9001 Quality Management System and OHSAS 18001 Occupation Health Safety Management System.
Mamba Screen Mesh Company’s strict quality control system starts at the very beginning: selecting the right material. There are more than 500 steel works in China. We only chose 2 of them as our material suppliers. Except their stable quality (and good qualification we need), they must be able to customize steel wire rods in accordance with correct composition ratios we provide. Most importantly, they must be able to provide the test report of SGS, the international third party test organization for every batch of steel wire rods they produced.
Poly Vibe Crushing Screens is a specific type of screening media made with multiple individual metal wires or polyurethane material. Independent vibration of the wires is created at variable frequencies to provide a good self-screening effect without plugging the meshes. Self-cleaning screen is featured by less plugging, increased wear life and higher screen efficiency in contrast to conventional screen mesh. Due to these features, self-cleaning screen has been increasingly popularized by customers in many industries.
Poly Vibe Crushing Screens Major Parameter:
| Poly Vibe Crushing Screens | |
| Wire Diameter | 0.80mm-12.7mm |
| Aperture | 1.00mm-101.6mm |
| Opening Type | Shape D,V,S and H |
| Max width | 2500.00mm |
| Products Type | Flat Plates, Folding Hook,Modular |
| Material | High Carbon Steel Wire or Stainless Steel Wire. |
Poly Vibe Crushing Screens compose of individual wires that vibrate independently at different frequencies preventing material accumulating between the wires and allowing the self cleaning effect,
Poly Vibe Crushing Screens Aperture and Wire Diameter:
| Aperture(mm) | Wire Diameter(mm) | |||
| 1.25 | 1.00 | |||
| 2.00 | 1.00 | 1.37 | ||
| 2.50 | 1.37 | 1.60 | 1.80 | |
| 2.75 | 1.37 | 1.60 | 1.80 | 2.00 |
| 3.15 | 1.37 | 1.60 | 1.80 | 2.00 |
| 3.50 | 1.37 | 1.60 | 1.80 | 2.00 |
| 4.00 | 1.60 | 1.80 | 2.00 | 2.50 |
| 4.50 | 1.60 | 1.80 | 2.00 | 2.50 |
| 5.00 | 1.80 | 2.00 | 2.50 | 3.15 |
| 6.00 | 1.80 | 2.00 | 2.50 | 3.15 |
| 6.30 | 2.00 | 2.50 | 2.76 | 3.15 |
| 7.10 | 2.00 | 2.50 | 2.76 | 3.15 |
| 8.00 | 2.00 | 2.50 | 2.76 | 3.15 |
| 9.00 | 2.50 | 2.76 | 3.15 | 3.50 |
| 9.50 | 2.50 | 2.76 | 3.15 | 4.00 |
| 10.00 | 4.00 | |||
| 11.10 | 2.50 | 2.76 | 3.15 | 4.00 |
| 12.70 | 3.15 | 4.00 | 4.50 | |
| 14.00 | 3.15 | 4.00 | 4.50 | 5.00 |
| 15.00 | 3.15 | 4.00 | 4.50 | 5.00 |
| 16.00 | 3.15 | 4.00 | 4.50 | 5.00 |
| 17.00 | 3.15 | 4.00 | 4.50 | 5.00 |
| 18.00 | 4.00 | 4.50 | 5.00 | |
| 19.00 | 4.00 | 4.50 | 5.00 | |
| 20.00 | 4.00 | 4.50 | 5.00 | |
| 22.00 | 4.00 | 4.50 | 5.00 | |
| 25.40 | 4.00 | 4.50 | 5.00 | |
| 28.00 | 4.00 | 4.50 | 5.00 | |
| 30.00 | 4.50 | 5.00 | 5.50 | 6.00 |
| 31.50 | 4.50 | 5.00 | 5.50 | 6.00 |
| 38.00 | 5.00 | 5.50 | 6.00 | 8.00 |
| 44.00 | 6.00 | 8.00 | 9.00 | |
| 50.00 | 8.00 | 9.00 | 11.10 | |
| 57.00 | 8.00 | 9.00 | 11.10 | 12.70 |
| 63.00 | 8.00 | 9.00 | 11.10 | 12.70 |
| 76.20 | 8.00 | 9.00 | 11.10 | 12.70 |

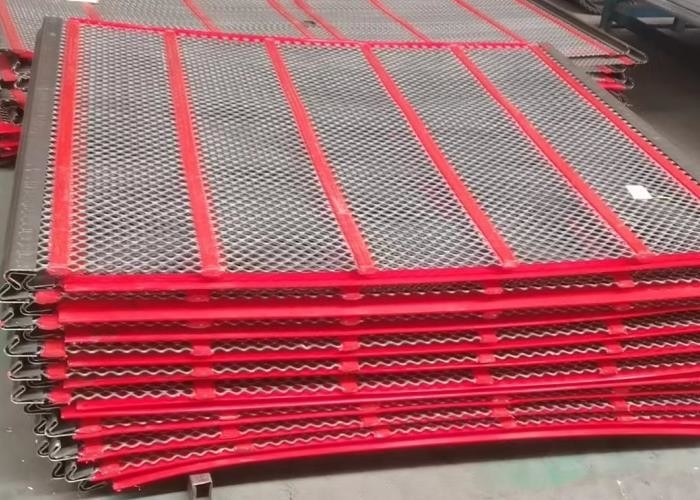

Poly Vibe Crushing Screens Aperture Shape Refer the follow photos.
Poly Vibe Crushing Screens Advantage and Feature:
1.Engineered to decrease your cost per ton
2.Reduces blinding and pegging for fast effective screening
3.Increased screen life
4.Extensive range of openings
5.Newly innovative polyurethane strips
6.No modification required of crowned deck
Poly Vibe Crushing Screens Application:
sizing, mineral processing, classification( coarse-and fine screening), scalping, and aggregate processing
