Product Details
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO9001 SGS
Model Number: PU SCS
Payment & Shipping Terms
Minimum Order Quantity: 10 Square Meter
Price: negotiable
Packaging Details: On Wooden Carton or Pallet
Delivery Time: Within10-20days
Payment Terms: L/C, T/T, D/P, Western Union, MoneyGram
Supply Ability: 8000SM/Week
Wire Material: |
Stainless Steel Wire Or 65Mn Steel Wire,Middle Carbon Steel Wire |
Wire Diameter: |
1.00-12.70mm |
Tensile Strength: |
1700-1800Mpa |
Aperture: |
1-50mm |
Strip Material: |
High Quality Polyurethane |
Feature: |
Anti-Clogging |
Screen Mesh Width: |
500-2500mm |
Wire Tolerance: |
<3% |
Aperture Tolerance: |
<3% |
Porduction Type: |
Can Do OEM |
Products Name: |
Self Cleaning Screen Mesh |
Opening Type: |
S,V,D And H |
Wire Material: |
Stainless Steel Wire Or 65Mn Steel Wire,Middle Carbon Steel Wire |
Wire Diameter: |
1.00-12.70mm |
Tensile Strength: |
1700-1800Mpa |
Aperture: |
1-50mm |
Strip Material: |
High Quality Polyurethane |
Feature: |
Anti-Clogging |
Screen Mesh Width: |
500-2500mm |
Wire Tolerance: |
<3% |
Aperture Tolerance: |
<3% |
Porduction Type: |
Can Do OEM |
Products Name: |
Self Cleaning Screen Mesh |
Opening Type: |
S,V,D And H |

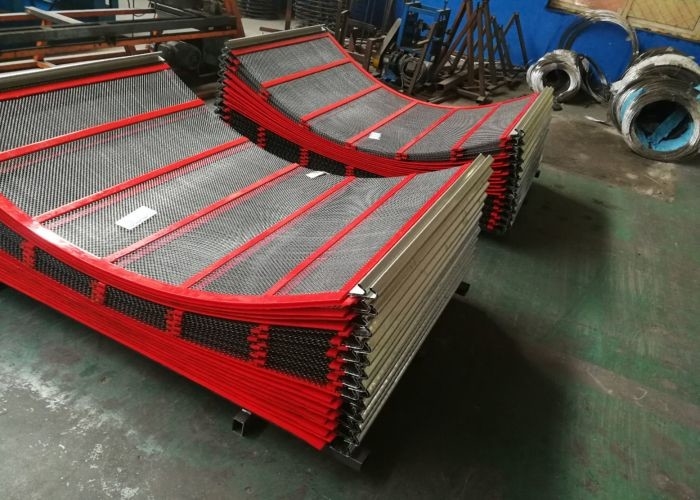

Mam Ba Wire Mesh MFG Company- Pu Strip Self Cleaning Screen
Pu Strip Self Cleaning Screen Characteristic
Our self cleaning screens are available in high tensile steel mesh or stainless steel. Also with or without polyurethane cross strips. Self cleaning screens are a non-blinding, high quality screening surface that provides accurate screening and sizing. Particularly where material is difficult, wet or sticky. In addition to having many advantages over other screen types, self cleaning mesh gives higher production rates. At the same time eliminating the problem of large unwanted flat material that contaminates the finished product.
With high quality, non-blinding screening is the perfect mesh. The combination of different size wire used in manufacture means that they vibrate at varying frequencies to produce a self-cleaning surface. Also, due to its flat surface (no knuckles) self cleaning screens can use a smaller wire diameter than woven wire for some applications. Therefore it has a greater opening area percentage and still lasts as long as normal square woven mesh.
PU Strip Self Clenaing Screen Shape Configurations:
Shape D is ideal for the medium and light materials. It is effectively controls the materials sizing through the equal openings. Shape D can do an excellent job no matter how strict the material sizing requirements.
Pu Strip Self Cleaning Screen The Shape S of self cleaning screen mesh is made of several horizontal and parallel crimped wires. It looks like the herringbone pattern, which can offer better sizing control than Shape S and Shape S by eliminating more flats and elongates
Shape V is specifically engineered and designed to reduce blinding and plugging conditions when the use of conventional square opening wire cloth is not acceptable. The Shape V screen accurately controls material sizing, both undersized, similar sized and oversized materials, while staying clean and remaining efficient.
PU Strip Self Cleaning Screen Material:
Main Material highly abrasion-resistant spring steel wire or stainless spring steel wire.
No | Grade | Chemical Composition | ||
C | Si | Mn | ||
1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
2 | 50 | 0.47-0.55 | ||
3 | 55 | 0.52-0.60 | ||
4 | 60 | 0.57-0.65 | ||
5 | 65 | 0.62-0.70 | ||
6 | 70 | 0.67-0.75 | ||
7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
No | Grade | Chemical Composition | |||
C | Ni | Mn | Cr | ||
1 | 304 | ≤0.08 | 8.0-11.0 | ≤2 | 18.0-20.0 |
2 | 321 | ≤0.08 | 9.0-12.0 | ≤2 | 17.0-19.0 |
3 | 316 | ≤0.08 | 10.0-14.0 | ≤2 | 16.0-18.5 |
4 | 2205 | ≤0.03 | 4.5-6.5 | 2.5-3.5 | 21.0-24.0 |
5 | 2507 | ≤0.03 | 6-8 | ≤1.2 | 24-26 |
PU Strip Self Cleaning Screen Characteristics:
1. high performance production
2. More opening area
3. 30% more capacity than woven wire
4. Eliminates blinding and plugging
5. 3 times longer wear life time than woven wire
6. Minimizes down time cleaning and unclogging
7. Maximizes throughput
Pu Strip Self Cleaning Screen Hook Types:
Our hook making adopts the electromagnetic coil heating process. All hooks are one-time forming. There are different type of hooks and edges available.
We can provide wire cloth with or without hooks and wire cloth rolls in different size according to client’s requests.
Application:
applies to vibrating screens for primary sieving of mine and aggregates, as well as asphalt mixer plant in road building.
