High Wear Resistance Rock Crusher Screen Self - Cleaning ASTM Standard

I'm Online Chat Now

High Wear Resistance Rock Crusher Screen Self - Cleaning ASTM Standard

High Wear Resistance Rock Crusher Screen Self - Cleaning ASTM Standard
High Wear Resistance Rock Crusher Screen Self - Cleaning ASTM Standard

Large Image :  High Wear Resistance Rock Crusher Screen Self - Cleaning ASTM Standard

Product Details:
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO
Model Number: 002
Payment & Shipping Terms:
Minimum Order Quantity: Any qty is available, just cost is different. Generally, 10pcs each size.
Price: negotiable
Packaging Details: 10pcs per skid, packed in iron belt with Iron tube
Delivery Time: within 15days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 80pcs per day
Detailed Product Description
Material: High Carbon Spring Steel Wire: 1.2mm-9mm
Aperture: 1.5mm-45mm Typle: 3 Types
Standard: ASTM, ISO Market: USA; Canada; Australia; Germany; Etc
High Light:

self cleaning mesh

,

stainless steel crimped wire mesh

Mam Ba self-cleaning screen mesh

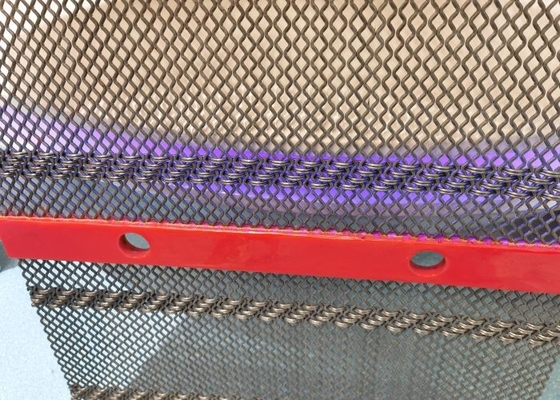

Self-cleaning screens allow wires to vibrate independently at different frequencies, preventing materials from pegging & blinding and getting self cleaning effect. They are used primarily for small openings.



Compared with traditional wire screens,they are lightweight with large open area and easy to install which could increase material throughput , screening efficiency and reduce the cost of screening operations.



Material:high carbon steel wire, and stainless steel wire



Production capacity: Wire- Ripple screen :25,000m2 per year.


Characteristics:
* high performance and excellent self cleaning
* long wear-life
* More opening area
* 30% more capacity than woven wire
* Eliminates blinding and plugging
* 3 times longer wear life time than woven wire
* Minimizes down time cleaning and unclogging
* Maximizes throughput
* Superior design results in production increase and cost savings



High Wear Resistance Rock Crusher Screen Self - Cleaning ASTM Standard 0High Wear Resistance Rock Crusher Screen Self - Cleaning ASTM Standard 1High Wear Resistance Rock Crusher Screen Self - Cleaning ASTM Standard 2



Some specifications are reference. Special sizes can be at customized.

Aperture mm Wire dia mm Opening area %
1.5 1.2-1.6 38-31
1.75 1.2-1.25 40
2 1.2-1.6 43-37
2.5 1.2-2 48-35
3 1.2-2 52-40
3.5 1.2-2 56-42
4 1.2-2 58-45
4.5 1.2-2.5 62-40
5 1.2-2.8 65-41
5.5 1.5-2.5 61-48
6 1.5-2.8 64-48
6.5 1.5-3.15 66-47
7 2-3.15 61-49
7.5 2-3.15 62-52
8 2-3.15 63-53
8.5 2.5 61
9 2-3.15 67-56
9.5 2.5-3.15 63-57
10 2-3.15 69-59
10.5 2.5-3.15 66-60
11 2-3.15 72-61
11.5 2.5-2.8 66-64
12 2-4 73-57
12.5 2.5-4 69-58
13 2-4 75-59
13.5 2.8 68
14 2-4 76-61
14.5 2.5-4 73-62
15 2.5-4 74-63
15.5 3-3.15 70-69
16 3-4 71-64
17 2.5-4 76-66
18 3-4 73-67
19 3-5 76-68
20 3-5 79-69
21 3-5 75-71
22 3-5 80-72
23 4 73
24 4-6 74-69
25 4-6 74-70
26 4-6 75-71
27 4-8 76-70
28 3-8 82-69
29 4-9 77-70
30 4-9 82-70
32 4-9 79-70
35 4-9 81-74
40 4-9 83-75
44 4-9 84-76



Application:
* sand and gravel industry,
* ore preparation plants,
* mining industry
* For damp, sticky, hard-to-screen material



To get a quotation ,you need to indicate those :

  1. WIRE DIA ,Aperture
  2. LENGTH & width
  3. Qty and all dimensions for rolls , or cut to size pieces , or HOOK edge
  4. Any other requirements not mentioned

Mam Ba screen mesh is used as a spare part of crusher equipment playing an important role in vibrating efficiency. A screen mesh at bad quality could increase downtime and make extra cost. Mam Ba is aim to help customers lower the cost. Customers can contact us anytime once something is wrong during the use of screen mesh. Prompt service could be available.
