Mining Industrial PU Fine Mesh Screens with 0.075-0.18mm Aperture for Abrasion Resistance and Low Noise Long Wear Life

Product Details

Place of Origin: China

Brand Name: Mam Ba

Certification: ISO9001 SGS

Model Number: PFS

Payment & Shipping Terms

Minimum Order Quantity: 5 Square Meter

Price: negotiable

Packaging Details: On Wooden Carton

Delivery Time: Within10-20days

Payment Terms: L/C,T/T,D/P,Western Union,MoneyGram

Supply Ability: 5000SM/Week

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                fine wire screen, fine wire mesh screen


Products Name:	Fine Mesh Screens	Material:	High Quality PU And Steel Wire
Screening Feature:	Fine Higher Screening Accuracy	Width:	0.6-1.6m
Length:	0.7-3.5m	Working Feature:	Low Noise And Longer Wear Life
Opening Area:	32% – 42%	PU Hardness:	80-87A
Thickness:	5-7mm	Resilience:	45%-47%
Aperture Type:	Slot	Aperture Sizes:	0.075-0.18mm

Products Name:	Fine Mesh Screens
Material:	High Quality PU And Steel Wire
Screening Feature:	Fine Higher Screening Accuracy
Width:	0.6-1.6m
Length:	0.7-3.5m
Working Feature:	Low Noise And Longer Wear Life
Opening Area:	32% – 42%
PU Hardness:	80-87A
Thickness:	5-7mm
Resilience:	45%-47%
Aperture Type:	Slot
Aperture Sizes:	0.075-0.18mm

Product Description

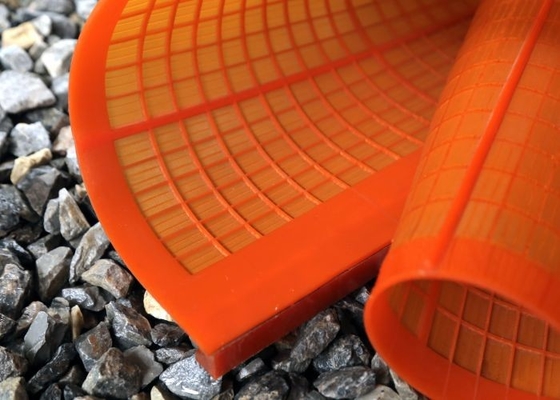

Mining Industrial PU Fine Mesh Screens

Enhance productivity with 0.075-0.18 mm aperture polyurethane fine mesh screens designed for high-frequency vibrating screens.

Product Specifications

Normal Screen Size: 1040×700mm
Aperture Range: 0.075-0.18mm
Service Life: 6-12 months
Material: High-quality Polyurethane
Compatible with High Frequency Vibrating Screens
Available Colors: Orange, Red, and custom colors
Screen Width Options: 0.6m, 0.7m, 0.8m, 1m, 1.2m
Screen Length Options: 0.7m, 0.8m, 1m, 1.045m, 1.2m, 1.245m, 1.5m, 2m
Hook Type: Polyurethane hook system

Key Features

Excellent abrasion and wear resistance
Superior acid and alkali resistance
Fine openings for precise separation
Inlaid wedge-shape structure enhances tensile strength
Non-blinding design
Compatible with most vibrating screen types
Lightweight for easy installation and replacement
Low operating and maintenance costs
Reduced noise operation
Extended service life
High open area: 32%-42%
Custom mold designs available

Fine Particle Separation Performance

Our polyurethane fine screen mesh is manufactured from high-quality polyurethane sheets with precision screen surfaces. These screens offer superior abrasion resistance and significantly longer service life compared to traditional woven vibrating screen mesh. The anti-blinding properties enable efficient screening of materials previously considered difficult or impossible to process. With extremely fine openings down to 0.1mm, these screens are suitable for diverse wet and dry applications. The polyurethane construction ensures low noise operation and minimal maintenance requirements, making them ideal replacements for perforated vibrating screen mesh.

Detailed Specification Table

Item	Slot Width (mm)	Slot Length (mm)	Open Area (%)
APF-01	0.10	2.59	28.8
APF-02	0.12	2.59	20.20
APF-03	0.15	2.75	28.90
APF-04	0.18	2.12	29.64
APF-05	0.20	2.59	25.80
APF-06	0.23	2.59	27.80
APF-07	0.25	2.59	30.20
APF-08	0.40	2.59	31.90
APF-09	0.50	4.30	33.50
APF-10	0.60	4.30	36.40
APF-11	0.70	5.20	39.33
APF-12	0.80	5.20	40.60
APF-13	1.00	5.75	43.35
APF-14	1.50	8.20	37.91

High Frequency Screening Applications

Fine screening involves separating particles in the range of 10 mm to 38 microns (400 mesh). In wet fine screening applications, the screen surface quality directly impacts separation efficiency and overall screening performance. Our wear-resistant urethane screen panels provide high open area and anti-blinding properties that outperform conventional woven wire screens.

Technical Specifications

PU Hardness: 80-87A
Thickness: 5-7mm
Resilience: 45%-47%
Aperture Type: Slot
Aperture Sizes: 0.075-0.18mm
