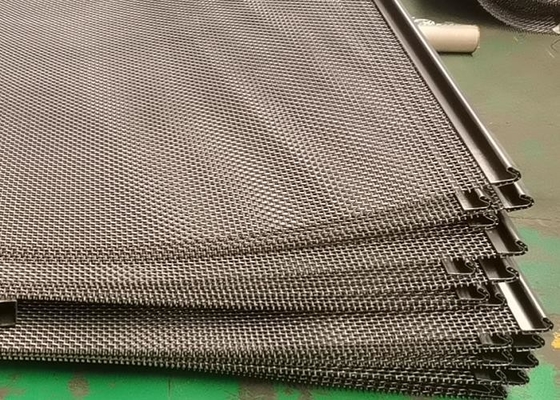

65mn Metal Wire Mesh Screen For Sand And Gravel Industry

Product Details

Place of Origin: China

Brand Name: Mam Ba

Certification: ISO9001,SGS

Model Number: 65Mn Wire Screens

Payment & Shipping Terms

Minimum Order Quantity: 5 Square Meter

Price: 2000-4000USD/TON

Packaging Details: On Wooden or Iron Pallet

Delivery Time: Within5-15days

Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram,CAD,OA

Supply Ability: 50000SM/Week

Get Best Price
Product Details
High Light:

65mn metal wire mesh screen

,

gravel industry metal wire mesh screen

,

metal wire mesh for sifting sand

Mainly Material:
65MnHigh Tensile Carbon Steel Wire,SS304
Tensile Stregth:
1200-1900Mpa
Weave Type:
Plain, Flat Top And Lock Type
Aperture:
1mm-152.4mm
Wire Diameter:
0.5-19.04mm
Wire Dia Tolerance:
<3%
Aperture Tolerance:
<3%
Processed Wire:
Heat Treatment
Surface Treat:
Rust Protection
Feature:
Heavy Duty,High Durable
Screen Mesh Width:
500mm-2500mm
Products Name:
Wire Screen Mesh
Advantage:
Lower Cost,Higher Screening Efficiency And Easy To Install And Replace
Mainly Material:
65MnHigh Tensile Carbon Steel Wire,SS304
Tensile Stregth:
1200-1900Mpa
Weave Type:
Plain, Flat Top And Lock Type
Aperture:
1mm-152.4mm
Wire Diameter:
0.5-19.04mm
Wire Dia Tolerance:
<3%
Aperture Tolerance:
<3%
Processed Wire:
Heat Treatment
Surface Treat:
Rust Protection
Feature:
Heavy Duty,High Durable
Screen Mesh Width:
500mm-2500mm
Products Name:
Wire Screen Mesh
Advantage:
Lower Cost,Higher Screening Efficiency And Easy To Install And Replace
Product Description

Mam Ba 65Mn Wire Screen



Mamba  is the largest professional screen media manufacturer in China.
which is founded in 1989, has been devoted to wiring cloth and screen media production for 33 years.
The company owns 18 patented products, all of which have been up to EU, GB, and ASTM standards.
The company has acquired certificates of ISO 14001 Environmental Management System, ISO 9001 Quality Management System,
and OHSAS 18001 Occupation Health Safety Management System.



Mam Wire Screens Material:


Mainly Material:highly abrasion-resistant spring steel wire or stainless spring steel wire.



1.Carbon Steel Wire Parameter:



No Grade Chemical Composition
C Si Mn
1 45 0.42-0.50 0.17-0.37 0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60



2.Stainless Steel Wire Paramter:



No Grade Chemical Composition
C Ni Mn Cr
1 304 ≤0.08 8.0-11.0 ≤2 18.0-20.0
2 321 ≤0.08 9.0-12.0 ≤2 17.0-19.0
3 316 ≤0.08 10.0-14.0 ≤2 16.0-18.5
4 2205 ≤0.03 4.5-6.5 2.5-3.5 21.0-24.0
5 2507 ≤0.03 6-8 ≤1.2 24-26





Mam Ba Wear Resistance Metal Wire Mesh Screens:


Mam Ba Wire Mesh MFG Company has a set of strict procedures to control the quality from materials to final products shipping. Our woven wire cloth has been widely accepted by clients from North America, Australia, Europe and Middle East for its high durability, precision and impact resistance. 90% of our products are used in international markets because they can be perfectly matched with various kinds of vibrating screens including international brands, such as Wirtgen, Atlas Copco, Sandvik, Mesto,Terex and other.


The more crimping wheels that a manufacturer has available, the greater variety of weaves they can create. As an efficient wire mesh manufacturer, we produce our own crimping wheels, which allows us to have constant innovation of different crimps. Mam Ba Wire Mesh MFG Company owns 550 sets crimping wheels in different specification. And this number has been increasing by 100 sets every year.



Mam Ba Wire Screen Advantage:


1. Easy to Install
2. Lower Cost
3. Higher Opening Aera
4. Higher screening accuracy and Efficiency
5. Require less maintenance
6. Sturdy construction



Wire Screen
Wire Diameter 0.50mm-19.05mm
Weaving Type Double Crimp,Lock Crimp,Flat Top,Inter Crimp
Aperture 1.00mm-152.00mm
Opening Type Square or Slot
Max width 2500.00mm
Products Type Flat Plates,Rolls, Folding Hook
Material

High Carbon Steel Wire or Stainless Steel Wire.









Opening (Aperture) Wire Diameter Open Area %

Approx. Weight

kg/m2

mm inch mm inch
25.4 1 5.72 0.225 66.62% 13.3
28.58 1 1/8 5.72 0.225 69.43% 12.2
31.75 1 1/4 5.72 0.225 71.80% 10.9
19.05 3/4 6.17 0.243 57.06% 19.1
20 48/61 6.17 0.243 58.41% 18.6
22.23 7/8 6.17 0.243 61.27% 17.3
25.4 1 6.17 0.243 64.73% 15.4
26.99 1 1/16 6.17 0.243 66.25% 14.6
28.58 1 1/8 6.17 0.243 67.64% 13.8
31.75 1 1/4 6.17 0.243 70.11% 12.6
25.4 1 7.19 0.283 60.74% 19.8
28.58 1 1/8 7.19 0.283 63.84% 18.2
31.75 1 1/4 7.19 0.283 66.48% 16.7
38.1 1 1/2 7.19 0.283 70.77% 14.5
25.4 1 7.92 0.312 58.11% 24
28.58 1 1/8 7.92 0.312 61.31% 22
31.75 1 1/4 7.92 0.312 64.06% 20.25
38.1 1 1/2 7.92 0.312 68.54% 17.5
41.28 1 5/8 7.92 0.312 70.40% 16
44.45 1 3/4 7.92 0.312 72.04% 15
50.8 2 7.92 0.312 74.84% 13.5
25.4 1 9.19 0.362 53.92% 30.9
31.75 1 1/4 9.19 0.362 60.14% 26
38.1 1 1/2 9.19 0.362 64.91% 21.4
41.28 1 5/8 9.19 0.362 66.90% 22.4
44.45 1 3/4 9.19 0.362 68.67% 20
50.8 2 9.19 0.362 71.71% 18.1
57.15 2 1/4 9.19 0.362 74.21% 16.2
63.5 2 1/2 9.19 0.362 76.31% 14.85
50.8 2 11.1 0.437 67.35% 25.3
50.8 2 12.7 0.5 64.00% 32.3
57.15 2 1/4 12.7 0.5 66.94% 29.53
63.5 2 1/2 12.7 0.5 69.44% 26.5
76.2 3 12.7 0.5 73.47% 22.7
88.9 3 1/2 12.7 0.5 76.56% 20.2
101.6 4 12.7 0.5 79.01% 17.9



Supplied dimensions:


as required by customer.Rolls or Cut to Flat Plate


Aperture, Wire Diameter and Diagonal Error or Tolerance:


1. Aperture error: ≤3%,which is better than International Standards;


2. Wire diameter error: ±3%;


3. Diagonal error: ≤9mm every 2m;


It ensures every piece of wire cloth we made can be etching with remarkable sign of Mam Ba: square, flatness and right tightness.



The Woven Wire Screens are manufactured with an industry-leading stringent wire opening of ±3% and extremely tight crimps and weave for a longer wear life and the elimination of premature failure.


Weave Types:

65mn Metal Wire Mesh Screen For Sand And Gravel Industry 0


Edge Types:

65mn Metal Wire Mesh Screen For Sand And Gravel Industry 1


Hook and Edge:

1.Our hook making adopts the electromagnetic coil heating process. All hooks are one-time forming. There are different type of hooks and edges available.

2.We can provide wire cloth with or without hooks and wire cloth rolls in different size according to client’s requests.




Mam Ba Wire Screen Workship:


 65mn Metal Wire Mesh Screen For Sand And Gravel Industry 2

65mn Metal Wire Mesh Screen For Sand And Gravel Industry 3

65mn Metal Wire Mesh Screen For Sand And Gravel Industry 4

65mn Metal Wire Mesh Screen For Sand And Gravel Industry 5
