Anping MamBa Screen Mesh MFG.,Co.Ltd
Home ProductsMetal Wire Mesh Screen

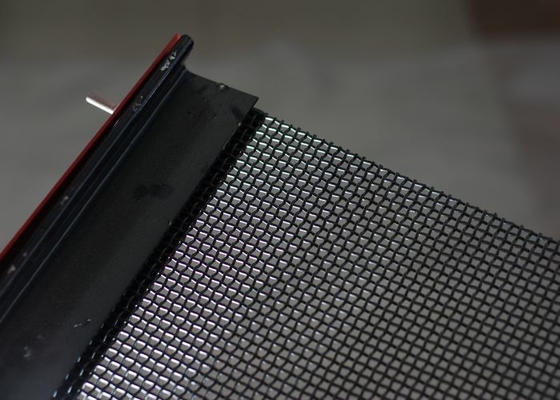

ISO9001 Ss304 Woven Wire Screen Mesh For Mining Industry

I'm Online Chat Now

ISO9001 Ss304 Woven Wire Screen Mesh For Mining Industry

ISO9001 Ss304 Woven Wire Screen Mesh For Mining Industry
ISO9001 Ss304 Woven Wire Screen Mesh For Mining Industry ISO9001 Ss304 Woven Wire Screen Mesh For Mining Industry

Large Image :  ISO9001 Ss304 Woven Wire Screen Mesh For Mining Industry

Product Details:
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO9001,SGS
Model Number: High Carbon Steel Wire Screen Mesh
Payment & Shipping Terms:
Minimum Order Quantity: 10 Square Meter
Price: negotiable
Packaging Details: On Wooden or Iron Pallet
Delivery Time: Within7-15days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000SM/Week
Detailed Product Description
Mainly Material: High Carbon Steel Wire,304 Stainless Steel Wire Tensile Stregth: 1600-1800Mpa
Weave Type: Plain Weave Aperture: 1mm-152.4mm
Wire Diameter: 0.5-19.04mm Wire Dia Tolerance: <3%
Aperture Tolerance: <3% Processed Wire: Annealing Process
Surface Treat: Rust Protection Feature: Wear Resistance
Screen Mesh Width: 500mm-2500mm Products Name: Woven Wire Screen Mesh
Advantage: Lower Cost,Higher Screening Efficiency And Easy To Install And Replace
High Light:

ISO9001 Woven Wire Screen Mesh

,

Mining Woven Wire Screen Mesh

,

Ss304 Woven Wire Screen Mesh

ISO9001 Ss304 Woven Wire Screen Mesh For Mining Industry



Our Products Metal Screen Mesh:


Mainly Material:highly abrasion-resistant spring steel wire or stainless spring steel wire.



Mam Ba Wire Mesh MFG Company’s strict quality control system starts at the very beginning:



selecting the right material. There are more than 500 steel works in China.



We only chose 2 of them as our material suppliers.



Except their stable quality (and good qualification we need),



they must be able to customize steel wire rods in accordance with correct composition ratios we provide Most importantly,



they must be able to provide the test report of SGS, the international third party test organization for every batch of steel wire rods they produced.



1.Carbon Steel Wire Parameter:



No Grade Chemical Composition
C Si Mn
1 45 0.42-0.50 0.17-0.37 0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60



2.Stainless Steel Wire Paramter:



No Grade Chemical Composition
C Ni Mn Cr
1 304 ≤0.08 8.0-11.0 ≤2 18.0-20.0
2 321 ≤0.08 9.0-12.0 ≤2 17.0-19.0
3 316 ≤0.08 10.0-14.0 ≤2 16.0-18.5
4 2205 ≤0.03 4.5-6.5 2.5-3.5 21.0-24.0
5 2507 ≤0.03 6-8 ≤1.2 24-26






Opening size:


1 - 152.4 mm


Wire diameter:


0.5 - 19.05mm
Hole type: square, rectangular and long slot.


Supplied dimensions:


as required by customer.Rolls or Cut to Flat Plate


Aperture, Wire Diameter and Diagonal Error or Tolerance:


1. Aperture error: ≤3%,which is better than International Standards;


2. Wire diameter error: ±3%;


3. Diagonal error: ≤9mm every 2m;


It ensures every piece of wire cloth we made can be etching with remarkable sign of Mam Ba: square, flatness and right tightness.



The Woven Wire Screens are manufactured with an industry-leading stringent wire opening of ±3% and extremely tight crimps and weave for a longer wear life and the elimination of premature failure.


Weave Types:



 ISO9001 Ss304 Woven Wire Screen Mesh For Mining Industry 0
Edge Types:
 ISO9001 Ss304 Woven Wire Screen Mesh For Mining Industry 1


Hook and Edge:

1.Our hook making adopts the electromagnetic coil heating process. All hooks are one-time forming. There are different type of hooks and edges available.

2.We can provide wire cloth with or without hooks and wire cloth rolls in different size according to client’s requests.




Mam Ba Wear Resistance Metal Wire Mesh Screensused Cases:



Mam Ba 65Mn High Carbon Steel Wire Quarry Screen Mesh for Aggregate and Quarry




ISO9001 Ss304 Woven Wire Screen Mesh For Mining Industry 2ISO9001 Ss304 Woven Wire Screen Mesh For Mining Industry 3
