Product Details
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO9001,SGS Test
Model Number: Polyurethane Screen Panels
Payment & Shipping Terms
Minimum Order Quantity: 10 Square Meter
Price: negotiable
Packaging Details: Put into Carton or on Pallet
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P,
Supply Ability: 10000 Square Meter/Week
Name: |
Polyurethane Screen Panels |
Material: |
Polyurethane |
Color: |
Red Or As Your Requirement |
Hardness: |
60A-95A |
Normal Sizes: |
305*305*30mm |
Application: |
Qarry, Coal,Mining Industrial |
Feature: |
High Wear Resistance |
Operating Temperature: |
Below 70ºC |
Install Stype: |
Rail Support,Pin&Sleeve Or Trim Strip |
Standard: |
ISO9001,SGS Test |
Production Mode: |
Hand Cast And Mold |
Name: |
Polyurethane Screen Panels |
Material: |
Polyurethane |
Color: |
Red Or As Your Requirement |
Hardness: |
60A-95A |
Normal Sizes: |
305*305*30mm |
Application: |
Qarry, Coal,Mining Industrial |
Feature: |
High Wear Resistance |
Operating Temperature: |
Below 70ºC |
Install Stype: |
Rail Support,Pin&Sleeve Or Trim Strip |
Standard: |
ISO9001,SGS Test |
Production Mode: |
Hand Cast And Mold |

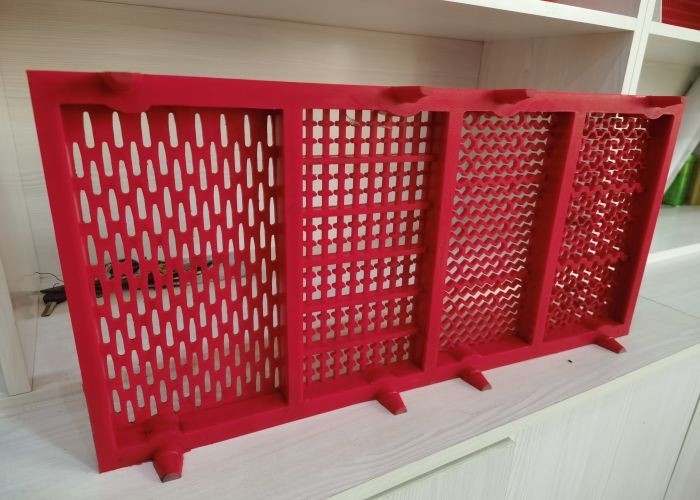

Mam Ba Polyurethane Screens
RedStar manufactures a widge range of polyurethane screens that are lighter, more cost-effective and achieve a longer working life than standard screen panels – even in harsh operating conditions.
RedStar’s expertise in high-tensile polyurethane screens has resulted in extensive range of products designed to suit your particular screening requirements.
Special Specification can also be customized according to customer's requirements.
Polyurethane Screen Panels Main Features:
1. Highly elastic and can be installed easily
2. Light weighted and improved durability
3. Impact proof body and compact design
4. Reduces noise and can withstand high temperature
Application:
Polyurethane Vibrating Screen is widely used for the classification of bulk material, such as coal, minerals, coke, beans, etc. So it can be used in the agriculture, chemical industry, minerals, quarry and smelting industries.
Polyurethane vibrating screen can sort the wet materials, it can be used in the water conservancy and hydropower and dewatering industries.
Modular Polyurethane Screens Panels
| Modular PU Screen Panels | |||||
|
Overall Sizes mm |
Aperture mm |
Opening Angle |
Height of screening Area mm |
Thickness mm |
Hardness
|
| 305x305x30 | 0.3 | 11-25 | 11 | 30 | HS60-85 |
| 305x305x30 | 0.5 | 11-25 | 11 | 30 | HS60-85 |
| 305x305x30 | 0.75 | 11-25 | 11 | 30 | HS60-85 |
| 305x305x30 | 1 | 11-25 | 11 | 30 | HS60-85 |
| 305x305x30 | 1.5 | 11-25 | 12 | 30 | HS60-85 |
| 305x305x30 | 2 | 11-25 | 12 | 30 | HS60-85 |
| 610x305x45 | 0.3 | 11-25 | 11 | 45 | HS60-85 |
| 610x305x45 | 0.5 | 11-25 | 11 | 45 | HS60-85 |
| 610x305x45 | 0.75 | 11-25 | 11 | 45 | HS60-85 |
| 610x305x45 | 1 | 11-25 | 11 | 45 | HS60-85 |
| 610x305x45 | 1.5 | 11-25 | 12 | 45 | HS60-85 |
| 610x305x45 | 2 | 11-25 | 12 | 45 | HS60-85 |
Material: Steel wire inside and polyurethane outside.
Thickness: 20mm - 60mm.
Opening size: 0.6mm - 160mm.
Screen type: Modular polyurethane screening and tensioned polyurethane panels.
Hole type: Comb, square, oblong, round, fine mesh sieve screen.
Connection types: Mosaic, bolt, layering connection, screen hook connection
