Product Details
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO
Model Number: 003
Payment & Shipping Terms
Minimum Order Quantity: Any qty is available, just cost is different. Generally, 10pcs each size.
Price: negotiable
Packaging Details: 10pcs per skid, packed in iron belt with Iron tube
Delivery Time: within 15days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 80pcs per day
Material: |
High Carbon Spring Steel |
Wire: |
1.2mm-9mm |
Aperture: |
1.5mm-45mm |
Typle: |
3 Types |
Standard: |
ASTM, ISO |
Market: |
USA; Canada; Australia; Germany; Etc |
Material: |
High Carbon Spring Steel |
Wire: |
1.2mm-9mm |
Aperture: |
1.5mm-45mm |
Typle: |
3 Types |
Standard: |
ASTM, ISO |
Market: |
USA; Canada; Australia; Germany; Etc |

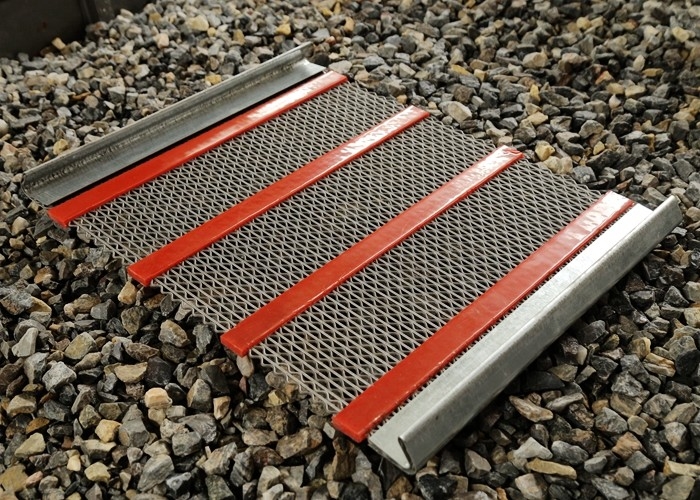

High Wear Resistance Anti-Clogging Self-Cleaning Screen Mesh For Mining Industry
Poly-Ripple Anti-clogging Wire Mesh Screens
Aperture / Opening: Diamond Opening, Weaving Opening, Triangle Opening
Specification: width up to 2.5m, no length limitation;
Edge: Raw Edge, plated sheathed, hooked, inner plated welded etc.;
Wire Materials: Spring Steel (High Carbon Steel), or Stainless steel (e.g. 304 & 316)
The Anti-blocking Screen is a method of weaving the wire mesh. The overlap points of warp are not prominent, and the surface is flat.
Anti-blocking Screen is easy to leak, wear-resistant and corrosion-resistant.
Advantages of the Anti-blocking Screen :
• High open area
• Exceptional cleaning ability
• Suited for applications with a high percentage of near-size material which is prone to pegging or blinding
• Used for declogging very sticky materials with no flacky products
• Removes fines, produces a cleaner retained product and reduces blinding of wet and sticky material
Poly Ripple Wire Mesh Screens Panels are designed for high abrasion applications where the material has a tendency to blind or peg. Produced using abrasion resistant polyurethane profiles molded over straight and crimped high quality steel wires, Poly Ripple Wire Mesh Screen could provide superior wear life.
Poly Ripple Anti-clogging Wire Mesh Screens are high production wire screens developed to enhance cleaning and non-blinding action, using independently vibrating weft wires. There are various designs that provide screening accuracy close to traditional wire mesh in square, triangle or slotted openings. These screens significantly reduce blinding and pegging in severe applications.
There are three types according to weaving way:
A B C
C TYPE: same self cleaning action reinforced for heavier loads and bed depth.
Some specifications of B type are reference. Special sizes can be at customized.
| Aperture mm | Wire dia mm | Opening area % |
| 1.5 | 1.2-1.25 | 50 |
| 1.75 | 1.2-1.25 | 55 |
| 2 | 1.2-1.6 | 57-51 |
| 2.5 | 1.2-2 | 60-53 |
| 3 | 1.2-2 | 64-57 |
| 3.5 | 1.2-2 | 67-57 |
| 4 | 1.2-2 | 70-62 |
| 4.5 | 1.2-2 | 75-64 |
| 5 | 1.5-2.8 | 71-56 |
| 5.5 | 1.5-2.8 | 69-62 |
| 6 | 1.5-2.8 | 73-60 |
| 6.5 | 2-2.8 | 70-66 |
| 7 | 2-3.15 | 72-67 |
| 7.5 | 2-3.15 | 62-60 |
| 8 | 2-3.15 | 74-69 |
| 8.5 | 2-3.5 | 77-74 |
| 9 | 2-3.5 | 79-69 |
| 10 | 2-3.5 | 80-74 |
| 11 | 2-3.5 | 85-73 |
| 12 | 2-4 | 84-71 |
| 12.5 | 2.5-4 | 80-71 |
| 13 | 3-4 | 73-70 |
| 14 | 3-4 | 82-73 |
| 15 | 3.5-5 | 78-69 |
| 15.5 | 3.5-5 | 78-67 |
| 16 | 3.5-5 | 75-69 |
| 17 | 4-5 | 80-70 |
| 18 | 4-5 | 80-76 |
| 19 | 4-5 | 82-77 |
| 20 | 4-5 | 86-77 |
| 22 | 4-6 | 84-78 |
| 24 | 4-7 | 81-76 |
| 25 | 4-7 | 83-78 |
| 27 | 4-7 | 83-79 |
| 28 | 4-8 | 83-78 |
| 30 | 4-8 | 85-79 |
| 35 | 4-8 | 86-79 |
| 40 | 4-9 | 89-78 |
| 45 | 4-9 | 90-80 |
Self-cleaning screens are available in a side-tensioned or end-tensioned configuration.
