High Carbon Steel Woven Wire Screen Mesh For Mining Quarrying Crusher Equipment

I'm Online Chat Now

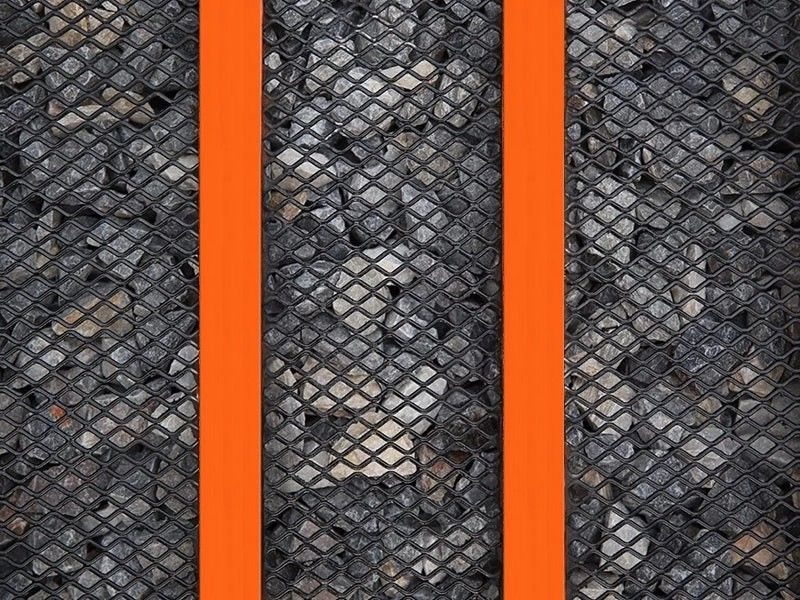

High Carbon Steel Woven Wire Screen Mesh For Mining Quarrying Crusher Equipment

High Carbon Steel Woven Wire Screen Mesh For Mining Quarrying Crusher Equipment
High Carbon Steel Woven Wire Screen Mesh For Mining Quarrying Crusher Equipment

Large Image :  High Carbon Steel Woven Wire Screen Mesh For Mining Quarrying Crusher Equipment

Product Details:
Place of Origin: China
Brand Name: Mam Ba
Certification: ISO
Model Number: 001
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: $50-$160 per unit
Packaging Details: 10pcs per skid, packed in iron belt with Iron tube
Delivery Time: within 10days for one order
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: one container per week
Detailed Product Description
Material: High Carbon Spring Steel Wire Dia: From 0.15 To 22.5mm
Opening / Aperture: 1.37mm To 100mm Specification: At Customized
Status Of Goods: Roll; Panel; Hooked Package: Iron Tube With Belt
Color: Black Or Any Color Painted Available Usage: Vibrating Different Materials; As Spare Parts Of Crusher Equipment
Market: USA; Canada; Australia; Germany; Etc Standard: ISO14315/9044
High Light:

mining screen mesh

,

gravel screen mesh

Mam Ba Woven wire screen media for crusher equipment

Mam Ba is a leading manufacture of screen mesh and polyurethane products, established in 1989, not far from Beijing about 2.5hours by car.



Screen mesh served for all kinds of asphalt mixing plants, Quarrying plants,mining industry,and accessories used for all kinds of vibrating screening machines.

They are available in rolls or panels cut to size , with or without tension folds.

During the production process, there is QC following and inspecting the quality.

All Mam Ba wire screens are produced according to standards ISO14315/9044

According to crimping and weaving type, there are:

A.Double crimp screen

B.Lock crimp screen

C.Double intermediate crimp screen

D.Flat top screen



Production capacity: 2 containers each week

Payment terms: TT or others

Loading port: Tianjin/ Xingang port,China; Shanghai port, China

Quality certification: Available

Markets: USA,Canada,Germany, Australia, some other countries

Below are some specification for reference:

Aperture Square weave Light Duty Wire dia kg/m2 OA% Medium Wire dia kg/m2 OA% Heavy Duty Wire dia kg/m2 OA%
2.00             1.37 7.1 35
3.15       2.00 9.9 37 2.50 14.1 31
4.00 2.00 8.50 44 2.50 12.2 38 3.05 16.8 32
5.0 2.00 7.80 51 2.50 16.6 44 3.05 14.7 38
5.6 2.50 9.80 48 3.05 13.7 41 4.00 21.2 34
6.35 2.50 8.89 51 3.05 12.6 46 4.00 19.6 38
6.8 2.50 9.00 51 3.05 10.0 44 4.00 19.7 37
7.1 2.50 8.80 55 3.05 11.9 48 4.00 18.3 41
8 2.50 10.80 54 4.00 16.9 44 5.00 24.4 38
9 3.05 9.80 55 4.00 15.6 48 5.00 22.7 44
10 3.05 9.10 58 4.00 14.5 51 5.00 21.2 44
11.2 3.05 10.40 54 5.00 19.6 48 5.60 28.6 44
12.5 4.00 12.30 57 5.00 18.1 51 5.60 20.0 47
14 4.00 16.70 54 5.00 20.0 51 6.80 24.6 48
16 5.00 15.10 58 5.60 19.5 56 6.80 22.6 51
18 5.00 14.50 58 6.80 20.7 55 7.10 25.0 51
20 5.60 14.00 61 6.80 19.2 58 7.10 24.0 54
22 5.60 17.60 61 7.10 21.5 57 8.00 26.7 54
25 6.80 16.10 64 7.10 20.1 60 8.00 24.6 57
28 7.00 14.70 63 8.00 19.0 61 9.00 27.8 57
32 8.00 20.60 64 9.00 26.0 60 10.00 30.4 58
38 8.00 18.70 67 9.00 28.1 64 10.00 27.9 61
40 9.00 21.00 67 10.00 25.4 64 11.20 31.1 61
45 9.00 19.50 69 10.00 23.4 67 11.20 28.4 64
50 10.00 23.20 69 11.20 26.0 67 12.50 31.8 64
56 10.00 19.20 72 11.20 28.7 69 12.50 29.0 67
63 10.00 17.40 75 11.20 24.5 72 12.50 25.1 70
76.2 10.00 14.80 78 11.20 16.0 75 12.50 20.0 73
80 10.00 16.00 79 11.20 17.5 72 12.50 21.5 75
90 10.00 14.00 81 11.20 15.7 79 12.70 19.4 77
100 10.00 10.00 82 11.20 14.3 81 12.70 17.6 79

Other specification can be produced at customized.
