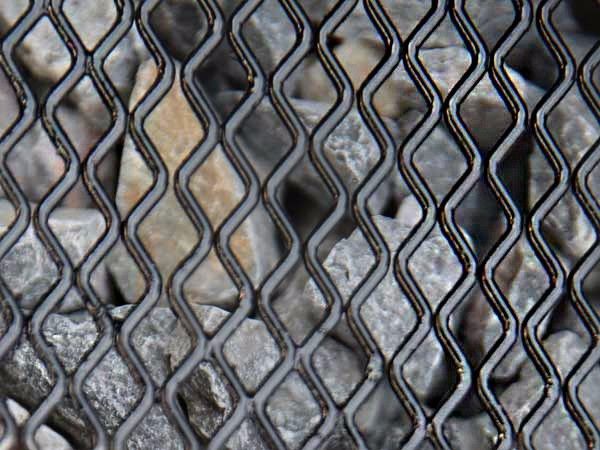

Vibrating Screening Parts 65Mn Spring Steel Woven Wire Screen Media for Aggregate

Mam Ba Wire Mesh MFG Company:

Mam Ba Wire Mesh MFG Company’s strict quality control system starts at the very beginning: selecting the right material. There are more than 500 steel works in China. We only chose 2 of them as our material suppliers. Except their stable quality (and good qualification we need), they must be able to customize steel wire rods in accordance with correct composition ratios we provide. Most importantly, they must be able to provide the test report of SGS, the international third party test organization for every batch of steel wire rods they produced.

Then these steel wire rods, the most suitable material for wire cloth, will be sent to China Juli Group. As our long-term partner, Juli Group, the biggest Sling manufacturer in the world, owns the most advanced wire drawing and heat treatment technique. Here, wires are taking lead patenting process to change their basic micro structure and texture to gain more fine grained pear lite. It is a necessary step to make sure our woven wire cloth features high tensile strength and better ductility.

Now, the material stage is ready. The wires will face one more test after they enter our factory. Our Quality Supervision Department will check its tensile strength, diameter and wire surface to decide if it can meet out company own standard which is actually higher than our National Standards..

The Woven Wire Screens are manufactured with an industry-leading stringent wire opening of ±3% and extremely tight crimps and weave for a longer wear life and the elimination of premature failure.

Weave Types

Material:
Mainly Material:highly abrasion-resistant spring steel wire or stainless spring steel wire.

Corrosion, abrasion, heat, vibration and weight are important factors to consider when choosing the metal or alloys to use to manufacture a screen

We specialize in screens woven from high carbon, high tensile spring steel, (unsurpassed for durability and long life with heavy abrasive material) and stainless steel which resists heat and corrosion giving longer life and durability.

Carbon Steel Wire Parameter:

Stainless Steel Wire Paramter:

Opening size:

1 - 152.4 mm

Wire diameter:

0.5 - 19.05mm

Hole type: square, rectangular and long slot.

Supplied dimensions:

as required by customer.Rolls or Cut to Flat Plate

Aperture, Wire Diameter and Diagonal Error or Tolerance:

1.Aperture error: ≤3%,which is better than International Standards;

2.Wire diameter error: ±3%;

3.Diagonal error: ≤9mm every 2m;

It ensures every piece of wire cloth we made can be etching with remarkable sign of Mam Ba: square, flatness and right tightness.

Edge Types:

Our hook making adopts the electromagnetic coil heating process. All hooks are one-time forming. There are different type of hooks and edges available.

We can provide wire cloth with or without hooks and wire cloth rolls in different size according to client’s requests.

Hook and Edge

1.Our hook making adopts the electromagnetic coil heating process. All hooks are one-time forming. There are different type of hooks and edges available.

2.We can provide wire cloth with or without hooks and wire cloth rolls in different size according to client’s requests.

Features:

Easy to Install

Lower Cost

Higher screening accuracy
Require less maintenance
Sturdy construction

Installation instructions:

the screen is installed with using of tensioning metallic bars into a separator over different types of hook strips, further with using of side bars and wedges, possibly is fastened into a frame.

Application:
applies to vibrating screens for primary sieving of mine and aggregates, as well as asphalt mixer plant in road building.
